Specifications

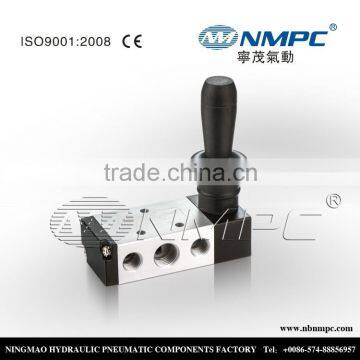

Air valve Manual resetting gas valves 4H210-08 hand shut off valves 5/2 3/2 parts engine mechanical systemAir valve Manual resetting gas valves 4H210-08 hand shut off valves 5/2 ,3/2 parts engine mechanical system,femal thread size 1/4
Model: 4H Series hand valves
Position: single head double positiona and single head three positions 5/2, 3/2, 5/3

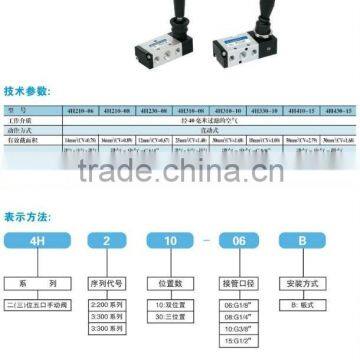

Specifications :
- Product Name :Hand Lever Valve
- Model :4H210-08
- Working Medium :Air
- Joint Port Thread Diameter :Air Inlet=Air , Outlet=12mm, Exhaust=9mm
- Joint Port Size : Air Inlet=Air Outlet=1/4 PT , Exhaust=1/8 PT
- Operating Temperature Range : 0~60C
- Lever Size : 70 x 27 mm/ 2.8" x 1.1" (L*Max.D)
- Valve Size : 76 x 35 x 22 mm/ 3" x 1.4" x 0.9" (L*W*H)
- Material : Plastic, Rubber, Metal
-
Features:
- Category: Pneumatic Hand Valves
- Type: 5/2 Way Hand Operated Valve
- Model: 4H210-08
- Ports: 1/4" BSPT
- Effective area: 16mm2
- CV Value: 0.89
- Operating temperature range:-5~55℃
- Operating pressure range: 0~8.0(kgf/cm2)
Q: How many days the products can be sent out?
A: To the standard products, we have enough stock.
Q: How to make the payment?
A: Bank T/T, Western Union, Paypal, L/C.
Q: How to make the delivery?
A:To the order with smaller weight, they will be sent by TNT/FEDEX/DHL. Others will be sent by air or sea
Warranty: Great Quality Products
We stand behind the quality of our products 100%. All of our items come with a warranty to give you a peace of mind.
New Guaranteed: All of our items are in BRAND NMPC condition in OEM or Original Packaging. Orders are packaged with care to make sure your items arrive in perfect condition.
