Smart 4-20mA Pressure Transmitter For Wide Scope Of Application

4-20mA Pressure sensor transmitter price export packing

Specifications

4-20mA Pressure sensor  transmitter price

Description:

Integral component of stainless steel, elastomer original imported high-precision strain gauge and advanced technology, with high sensitivity, stable performance, good impact resistance. 316 stainless steel welded closed, the pressure sensor LED display comes with three and a half, while the output analog signals to the back-end control mechanism to pressure signal sampling, compact, compact, good moisture resistance and excellent media compatibility.

Technical indicators:

1Range: -0.1 ~ 0 ~ 1 ~ 150 (MPa)

2Comprehensive Accuracy: 0.25% FS, 0.5% FS, 1.0% FS

3Output signal: 4 ~ 20mA (two wire), 0 ~ 5V, 1 ~ 5V, 0 ~ 10V (three-wire)

4Site display: LED three half 0000 - 1999

5Supply voltage: 24DCV (9 ~ 36DCV)

6Medium temperature: -20 ~ 85 ~ 150 °C

7Ambient temperature: room temperature (-20 ~ 85 °C)

8Load Resistance: Current Output: Maximum 800Ω; Voltage output: more than 50KΩ

9Insulation resistance: more than 2000MΩ (100VDC)

10Sealing Rating: IP65

11Long-term stability: 0.1% FS / Year

12Vibration: Mechanical vibration frequency within 20Hz ~ 1000Hz, output changes less than 0.1% FS

13Electrical connection: Hirschmann connector

14Threaded connection: M20 × 1.5, etc., other threads can be designed according to customer requirements

15Dimensions: M20 × Φ26.5 × 175

Measuring media: Weak corrosive liquid; weak corrosive gases.

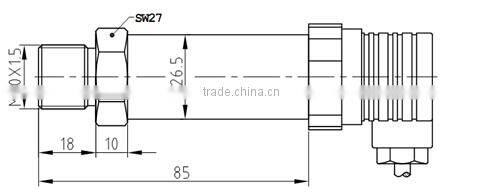

Product Dimensions:

If you need this   4-20mA Pressure sensor  transmitter price , please visit the website
