High Stability Piezoresistive Pressure Sensor

piezoresistive pressure sensor
Corrugated cardboard boxes outer and foam paper inner
packing size: 4x5x14cm

High stability piezoresistive pressure sensor

Features of piezoresistive pressure sensor :

Compact structure, beautiful appearance

Digital circuit

High precision, high stability

Strong anti-interference, good long-term stability

Small volume, light weight, convenient installation and use

Wide measuring range, can measure absolute pressure, gauge pressure

Variety choice of processes and electrical connection

Suitable for mass production, economic and reliable

Parameters of piezoresistive pressure sensor :

Measure range:            -100KPa~0~10KPa~100Mpa

Pressure type:              gauge pressure, absolute pressure

Power supply:             24VDC, 12VDC

Output signal:              4-20mA, 1-5V, 0-5V

Temperature compensation:   -10~70℃

Working temperature:       -20~85℃

Storage temperature:        -40~125℃

Zero temperature drift:       ±1.5%FS

Sensitivity temperature drift:  ±1.5%FS

Overload:                 150%FS

Mechanical vibration:       20g(20-5000HZ)

Accuracy:                ± 0.5%FS       ± 0.25%FS

Long time stability:        ±0.1%FS/year     ±0.2%FS/year

Response time:            ≤1ms(Up to 90%FS)

Load resistance:          ≤(U-15)/0.02Ω

Material:                 Stainless steel case; internal 316L sensor

Media compatible:         Media compatible with 316L stainless steel

Protection grade:           IP65

Dimension of piezoresistive pressure sensor :

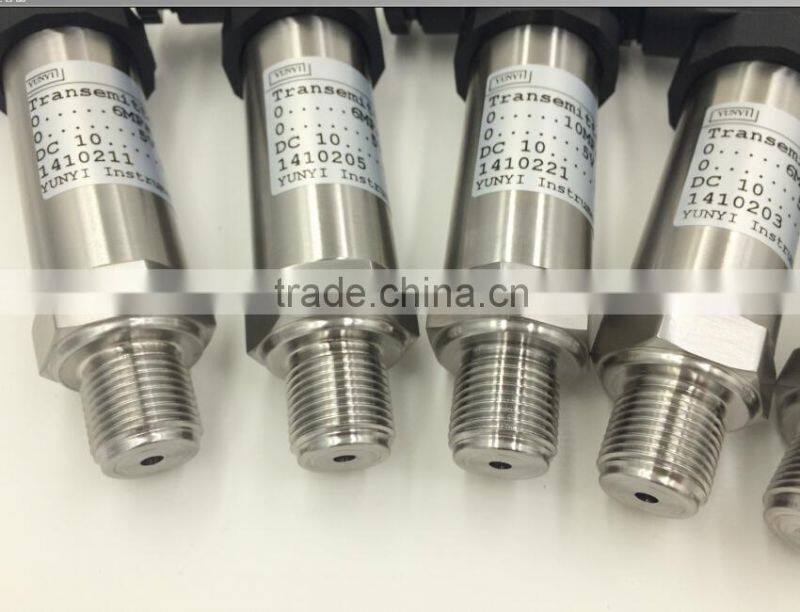

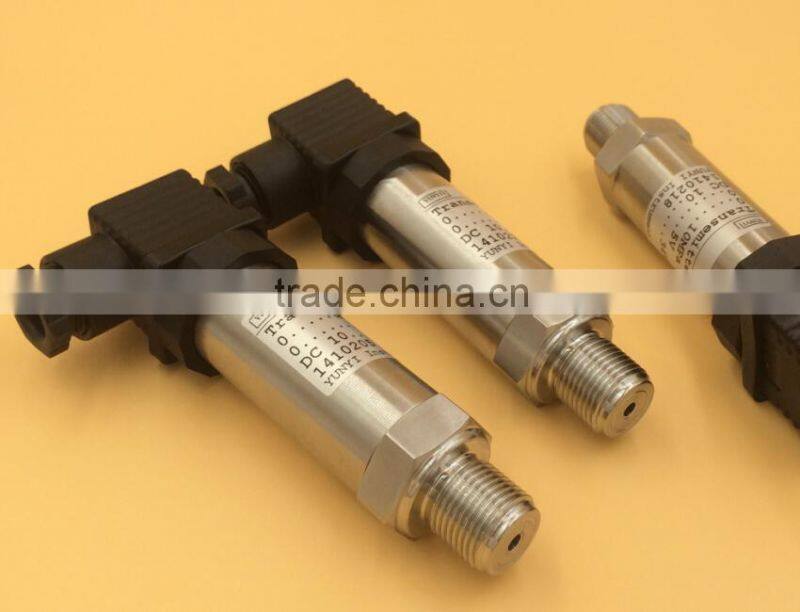

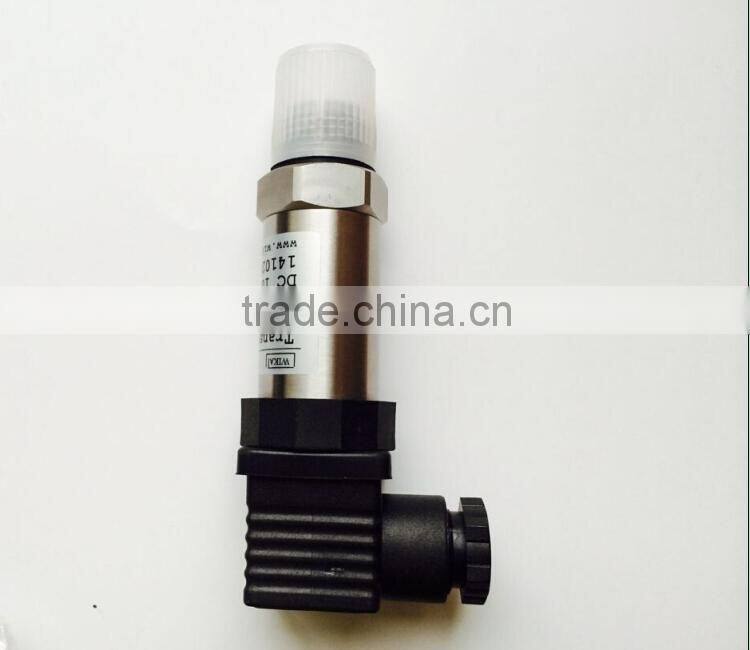

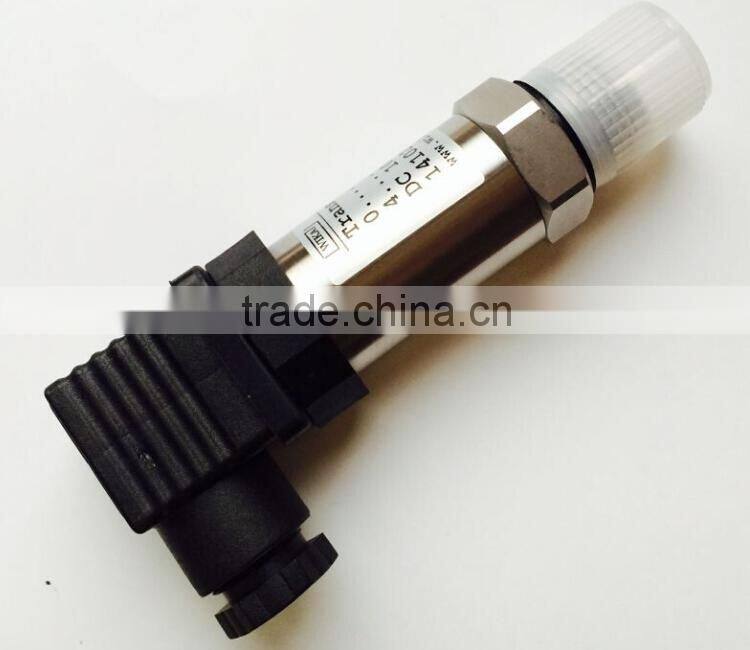

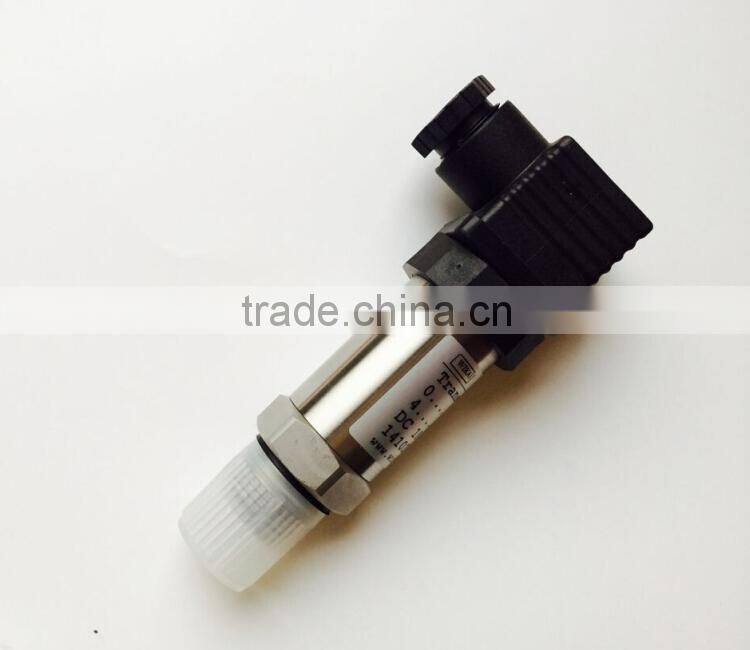

Mounted picture of piezoresistive pressure sensor :
