Specifications
china supplier pressure transducer with 0-5V1 Integrated isolation amplifier circuit
2 Imported chips
3 Strong lightning

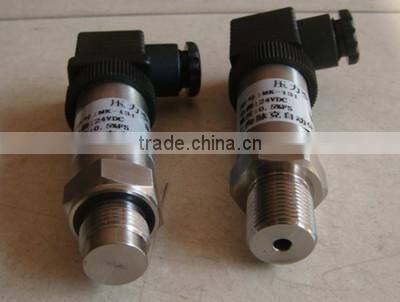

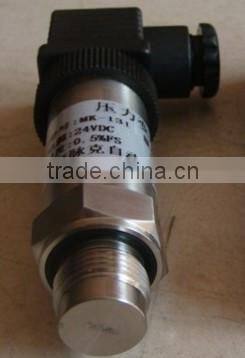

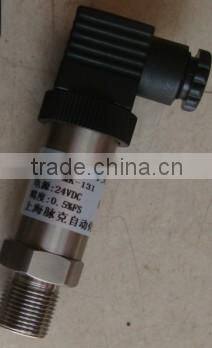

china supplier pressure transducer with 0-5V
Description of china supplier pressure transducer with 0-5V:
china supplier pressure transducer with 0-5V uses diffused silicon imported chips, circuit signal isolation amplifier, cutoff frequency interference design (anti-interference ability, lightning) overvoltage protection, current limiting protection, impact and corrosion. Hydraulic pressure sensor housing full seal welded 316 stainless steel, compact, compact, good moisture resistance and excellent media compatibility.
Technical indicators of china supplier pressure transducer with 0-5V:
1 Range: -0.1 ~ 0 ~ 0.001 ~ 100MPa (midscale optional)
2 Overall accuracy: 0.2% FS
3 Pressure type: negative pressure, absolute pressure, gauge pressure, sealing pressure (absolute pressure plus 140)
4 Measuring media: gas liquids
5 Output signal: 4 ~ 20mA or 0 ~ 5VDC or 0 ~ 10VDC or 1-5VDC
6 Supply voltage: 12 ~ 36VDC
7 Medium temperature: -40 ~ 85 ℃
8 Ambient temperature: room temperature -40 ~ 85 ℃
9 Zero temperature drift: ± 0.01% FS / ℃
10 Range Temperature drift: ± 0.01% FS / ℃
11 Compensation temperature: 0 ~ 70 ℃
12 Safe overload: 150% FS
13 Ultimate Overload: 200% FS
14 Protection: IP65
15 Sampling frequency: ≤2ms
16 Load capacity :( current type) 250 ~ 1425Ω (voltage type) ≥2KΩ sealing rating: IP65
17 Long-term stability: ± 0.1% FS / year
18 Mechanical connection (threaded connection): M20 * 1.5 M18 * 1.5 M16 * 1.5 M16 * 1 M14 * 1.5 M12 * 1.5 M12 * 1.25 M12 * 1 M10 * 1 G1 / 2 G1 / 4 G3 / 8 1 / 4NPT 1 / 2NPT 1 / 8NPT ZG1 / 4 (R1 / 4), etc., other threads can be designed according to customer requirements
Dimensional Drawings of china supplier pressure transducer with 0-5V:
