Mining Pressure Sensor Cost for Heavy Industry

mining pressure sensor cost for heavy industry Standard packing(or according to the customer request)

Specifications

Mining pressure sensor cost for heavy industry

Description :

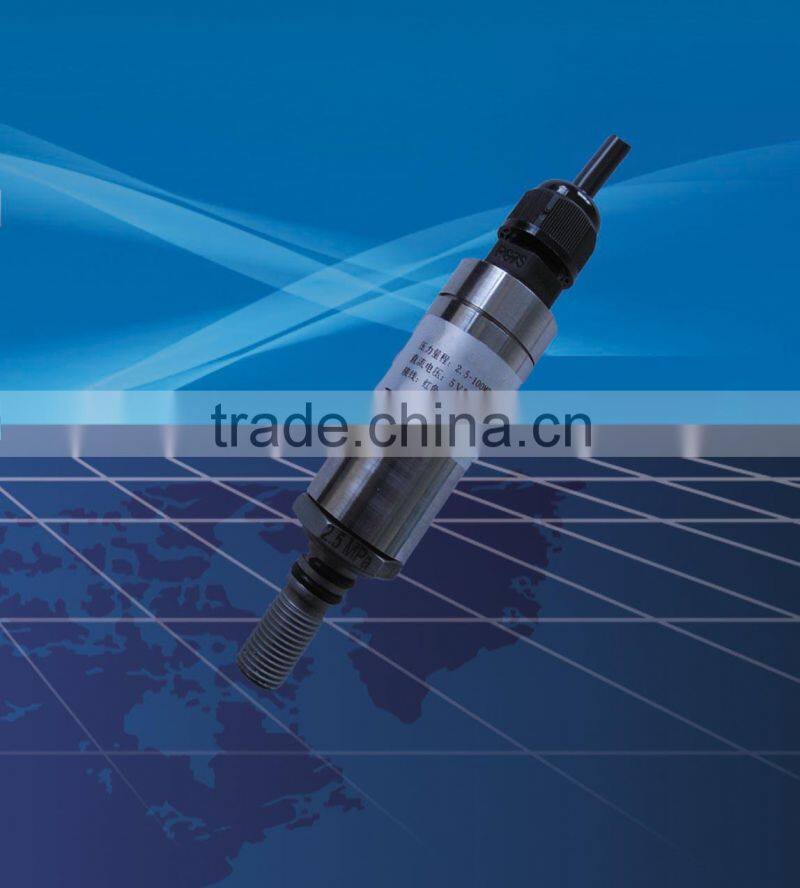

FPM-503 Series downhole pressure sensors, using strain silicon technology and sophisticated digital compensation only from the amplifier circuit. Pressure connector and housing are stainless steel, with a  good corrosion resistance and long-term stability. Sensor in the range of 0 ~ 70 °C were precise compensation to ensure the technical specifications of the sensor. The sensor connector we have are1/4NPT, G1 / 4 and M20 * 1.5thread.It can also be customized according to customer requirements,including the chooise of various types amplified output .It is widely used in industrial process control system, which include submersible pump, Oilfield downhole electronic pressure gauge supporting dedicated and other fields .

Specification of FPM-503series pressure sensor :

Technical principle : silicon strain technology
Range: 2.5MPa~250MPa
Input and Output: : power supply : 10-30V output:4~20mA( two-wire system ),1~5V,0~5V,0-10V
power supply : 5V output:0.5V-4.5V/100mV etc.
Temperture: -40~125°C
Medium: liquid/gas
Accuracy: 0.25%,0.5%
Application : submersible pump, Oilfield downhole electronic pressure gauge supporting dedicated and other fields .

                   Fields of aeronautics and astronautics
                   Marine and shipbuilding industries
                   Petroleum, chemical industry
                   The power plant, nuclear power plant and so on various research institutes laboratory

About Us:
Xi'an Yunyi Instrument Co., Ltd. is a professional manufacturer that engaged in the fields of pressure measurement instrument, the chief engineer Mr Tian has more than 30 years on this area, he is one of the engineers who introduced the Rosemount technology. We specializing in developing high precision pressure transmitter and pressure gauges. And we also develop temperature transmitter, level transmitter, densitometer etc. They are widely used in chemical, petroleum, paper, electricity, city gas, environmental protection, water treatment and other fields.

If you need this   mining pressure sensor cost for heavy industry  , please contact skype:wangxiaoyuncalar
