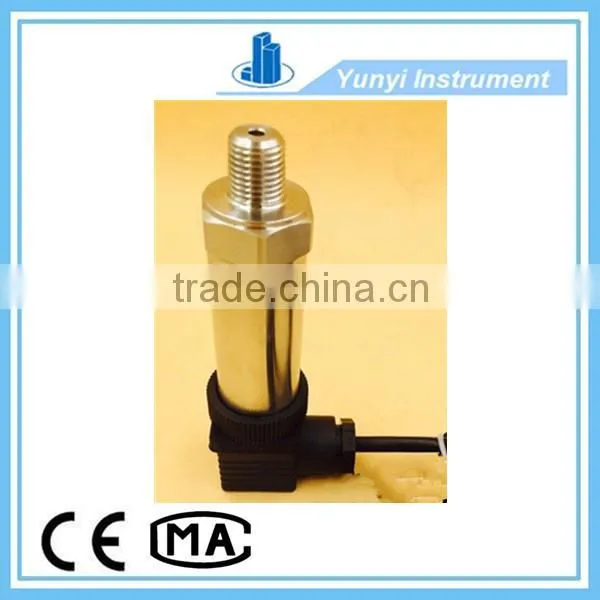

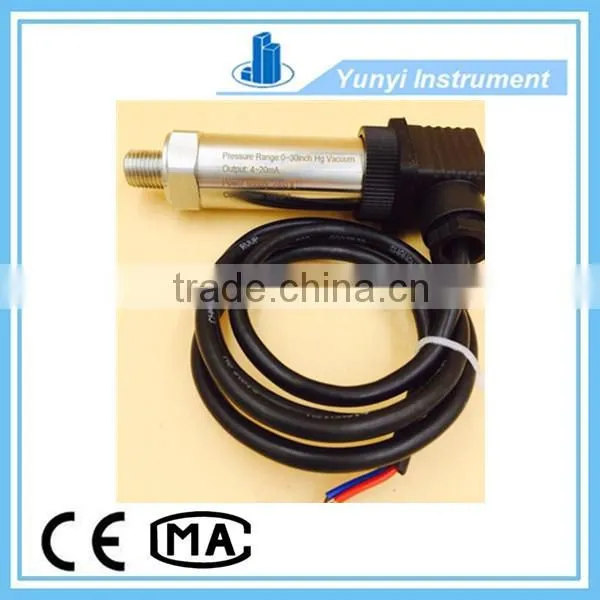

Vacuum sensor
Description :
Vacuum pressure sensor using imported vacuum diffused silicon pressure sensing chip, all stainless steel seal structure, with good moisture resistance and excellent media compatibility.
Products with high resolution and accuracy, long-term stability.
Suitable for medium pressure and vacuum of weak measurement and control applications, such as bottles of paint, beverages and other liquids, cans material leak.
Parameter:
1.Range: -0.1-100Mpa
2.Overall accuracy: 0.1% FS, 0.2% FS, 0.5% FS
3.Output signal: 4 ~ 20mA (two-wire), 0 ~ 5V, 1 ~ 5V, 0 ~ 10V (three-wire)
4.Supply voltage: 24DCV (9 ~ 36DCV)
5.Medium temperature: -20 ~ 85 ℃
6.Ambient temperature: room temperature (-20 ~ 85 ℃)
7.Load Resistance: Current Output: maximum 800Ω; voltage output: more than 50KΩ
8.Insulation resistance: more than 2000MΩ / 50VDC
9.Response time: <1ms
10.Sealing class: IP65
11.Long-term stability: 0.1% FS / year
12.Vibration effects: in the mechanical vibration frequency 20Hz ~ 1000Hz, the output changes less than 0.1% FS
13.Electrical connection: Hirschmann connector (other optional)
14.Threaded connection: M20 × 1.5, other threads can be designed based on customer requirements

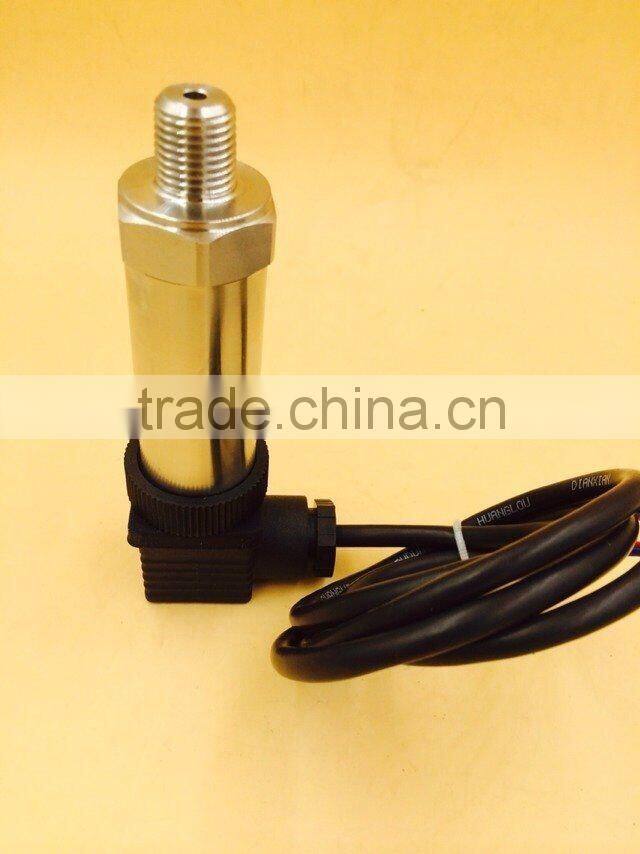

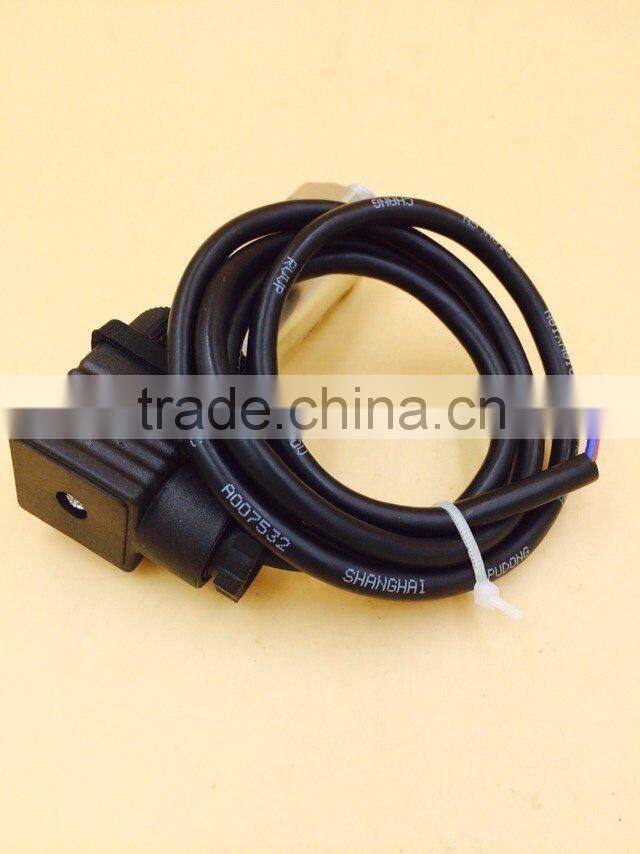

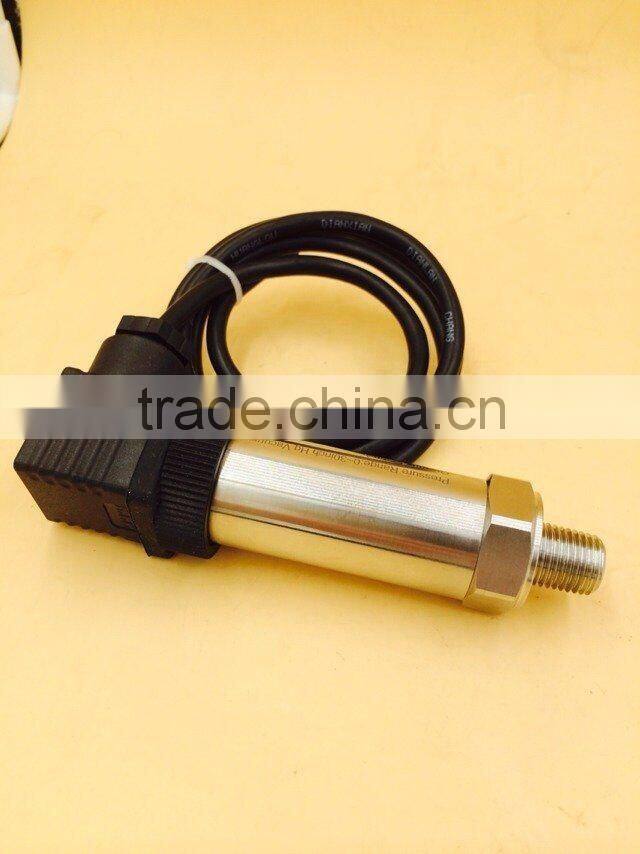

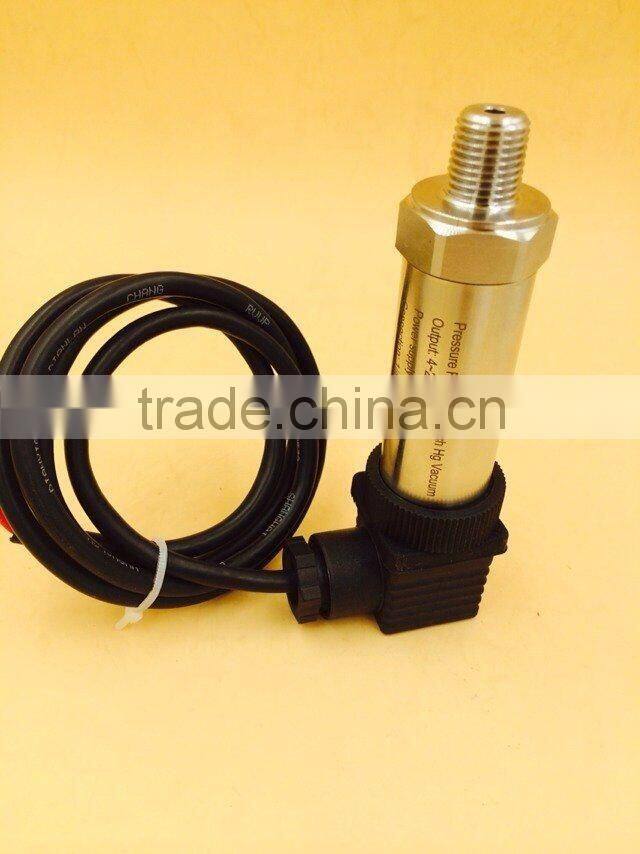

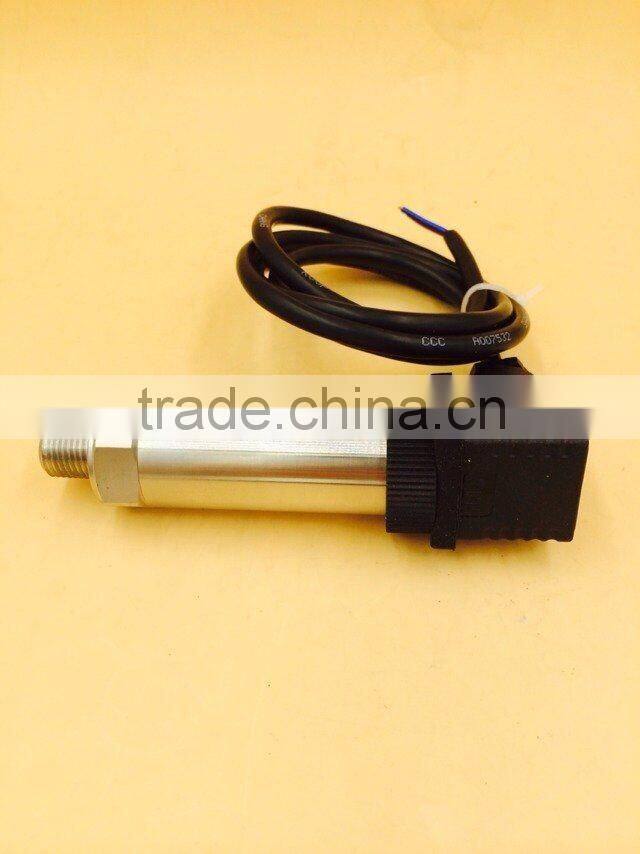

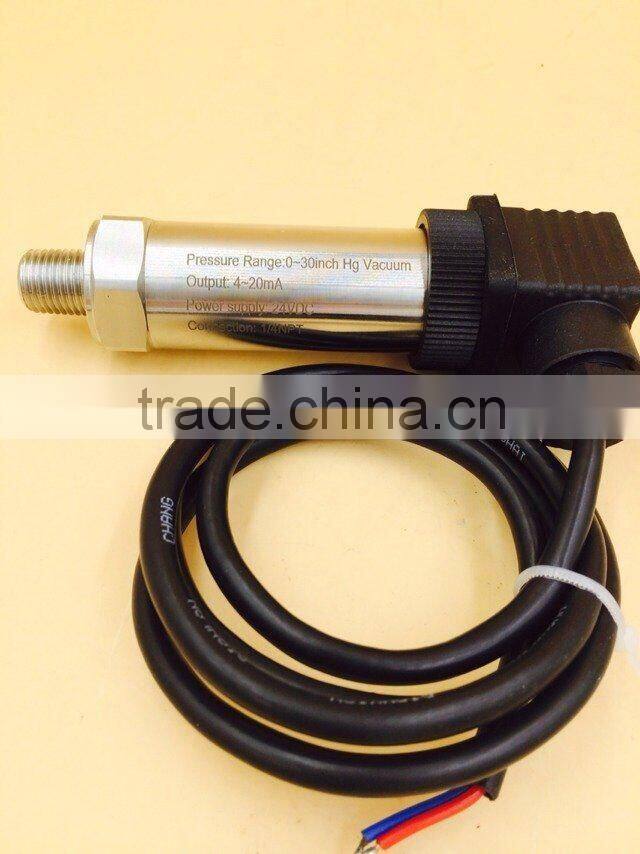

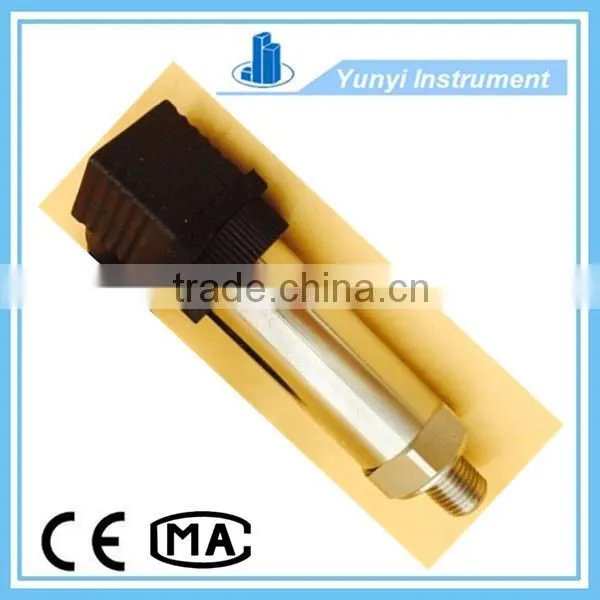

Details pictures of vacuum pressure transmitter :
Pressure transmitter
Package: standard export packing , including instructions and certificate
Shipment: Express (FedEx, DHL, UPS & TNT) or forwarder
Xi'an Yunyi Instrument Co., Ltd. is a professional manufacturer that engaged in the fields of pressure measurement instrument, the chief engineer Mr Tian has more than 30 years on this area, he is one of the engineers who introduced the Rosemount technology. We specializing in developing high precision pressure transmitter,pressure gauges,pressure calibrator and deadweight tester.And we also develop flow meter, level transmitter, densitometer etc. They are widely used in chemical, petroleum, paper, electricity, city gas, environmental protection, water treatment and other field...
If you need this , please contact
skype:wangxiaoyuncalar
Or visit website for more details
