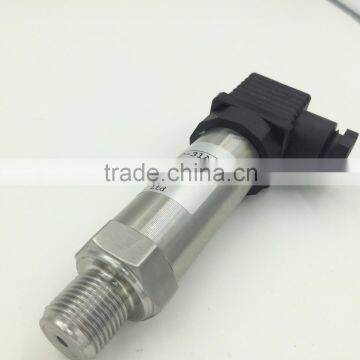

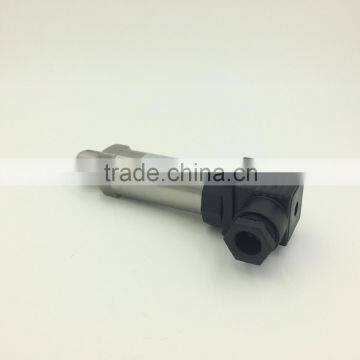

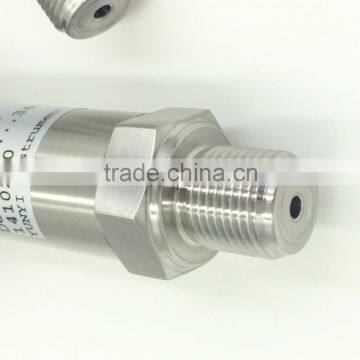

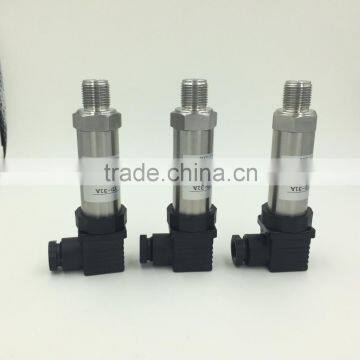

0-5v pressure sensor
Description
Details
Technical Data | |||||
Measuring Range |
-0.1MPa ~ 0 ~ 10KPa … 70MPa |
||||
Over pressure |
Two times of measuring scale for over pressure |
||||
Power supplying |
1.5mA DC constant current |
10 ~ 24V DC constant voltage |
|||
Zero point output |
0 ± 2 mV DC |
0 ± 2 mV DC |
|||
Full-range output |
70 ~ 110mV DC |
70 ~ 110mV DC |
|||
Overall accuracy |
± 0.1% FS |
± 0.25% FS |
± 0.4% FS |
||
Long-term stability |
± 0.1% FS / year |
||||
Range of operating temperature |
-40 ~ +85 ℃ |
||||
Range of compensating temperature |
-40 ~ +50 ℃ |
||||
Temperature performance |
Zero point temperature coefficient: ± 0.02% FS (Typical) |
||||
Sensitivity temperature coefficient: ± 0.02% FS (Typical) | |||||
Thermal lagging |
± 0.1% FS |
||||
Material |
Enclosure: S / S 1Cr18Ni9Ti |
Membrane: S / S 316L |
|||
Cable: PVC |
Sealing: Fluorubber Sealing Ring |
||||
Electrical connection |
PG7 Cable Wiring |
Tie-in DIN 43650 |
|||
Response time (10% ~ 90%) |
≤ 1 ms |
||||
Insulating resistance |
100MΩ / 500V DC |
||||
Enclosure protection degree |
IP 67 (Cable Type) |
IP 65 (Socket Type) |
|||
Weight |
Approximately 250g |
||||
Vibration |
No change under 10gRMS, 20 ~ 2000Hz |
||||
Impact |
100g, 11ms |
||||
Service life |
1 x 108 Pressurized Cycle |
||||
Medium compatibility |
The gas or liquid compatible with 316 stainless steel |
||||
Features of Product |
|
1 Measuring range: -0.1MPa ~ 0 ~ 10KPa … 70MPa |
|
2 Fully made of stainless steel |
|
3 Standard thread pressure-leading measuring method |
|
4 Constant - current and - voltage source power supplying |
|
5 Laser resistance adjusting compensation and full scale temperature performance |
|
6 Using solid-state piezoresistive pressure sensor, with high reliability and high accuracy. |
|
7 Designed with small dimensions, and many optional structural forms |
|
Application of Product |
|
1 Measurement of pressure for all kinds of dynamic and static gas and liquid medium |
2 Automobile electronic device |
3 Airspace and aerospace |
4 Pneumatic pressure control |
5 Ventilation system |
6 Industrial measurement |
If you need this 0-5v pressure sensor , please visit the website
