Home > Electrical & Electronics > Transmitter > Pressure Transmitter > Pressure Sensor Hydraulic Pressure

Pressure Sensor Hydraulic Pressure

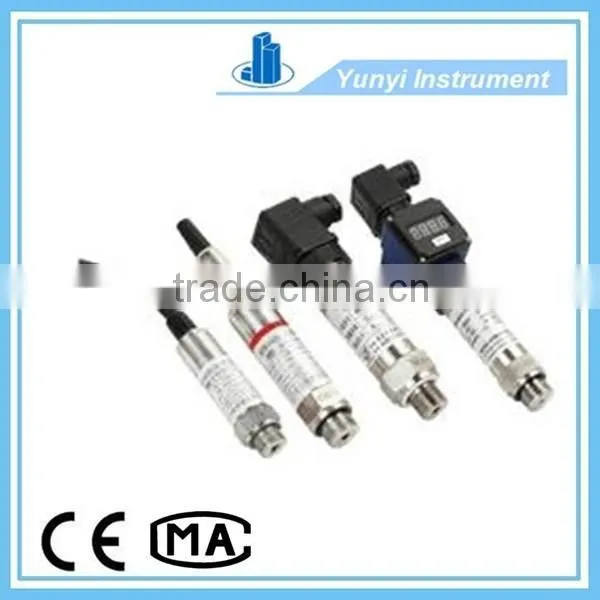

Pressure Sensor Hydraulic Pressure photo-1
US$ 40 - 165 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Shaanxi, China
Brand Name:
Yunyi
Model Number:
X-2
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Ningbo Tianjin Guangzhou Qingdao Qinhuangdao Dalian Shenzhen Zhoushan Yingkou Erlianhaoteshi Huoerguosi Dandong Alashan
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Shaanxi, China
Brand Name Yunyi
Model Number X-2

 pressure sensor hydraulic pressure





Technical parameters of   pressure sensor hydraulic pressure  :

1  Pressure range: -0.1…0~0.01…100MPa
2 Overpressure:   1.5 times FS or 110MPa(min. value is valid)
3 Pressure type:   gauge, absolute or sealed gauge

4 Accuracy: 0.25%FS(typ.)    0.5%FS(max.)   Including non-lin., rep. and hys.
5 Long-term stability: 0.2%FS/year(typ.)       0.3%FS/year(max.)
6 Zero temp. drift:   0.03%FS/°C(≤100kPa); 0.02%FS/°C(>100kPa)
7 FS temp. drift:   0.03%FS/°C(≤100kPa);   0.02%FS/°C(>100kPa)
8 Operation temp. -30°C
~80°C
9 Storage temp.:   -40°C
~120°C

10 Power supply:   15~28VDC     15~28VDC     15~28VDC
11 Output signal:   4
~20mADC     0~10/20mADC   0/1~5/10VDC
12 Transmitting:     2-wire      3-wir            3-wire
13 Load:        ≤(U-15)/0.02Ω     ≤(U-15
)/0.02Ω     >100k
14 Protection: IP65 for both cable and plug connection
15 Electric connection: Plug connection or 1.5m cable connection

16 Housing: stainless steel 1Cr18Ni9Ti
17 Diaphragm: stainless steel 316L
18 O-ring: Viton
19 Rubber casing: NBR



Package:



pressure sensor hydraulic pressure













About Us:
Xi'an Yunyi Instrument Co., Ltd. is a professional manufacturer that engaged in the fields of pressure measurement instrument, the chief engineer Mr Tian has more than 30 years on this area, he is one of the engineers who introduced the Rosemount technology. We specializing in developing high precision pressure transmitter and pressure gauges. And we also develop temperature transmitter, level transmitter, densitometer etc. They are widely used in chemical, petroleum, paper, electricity, city gas, environmental protection, water treatment and other fields.



If you need this pressure sensor hydraulic pressure  , please visit the website
