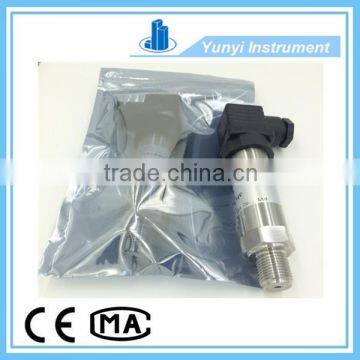

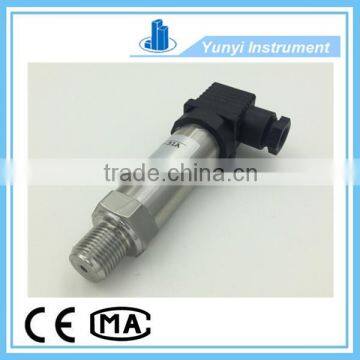

China Cheap Industrial Pressure Sensor

Name: China Cheap Industrial Pressure Sensor
Brand: Yunyi
SKU: 109040937
Availability: InStock

US$ 18.00 - 18.00 MOQ: 100 Units

Key Specifications

Place of Origin:

Shaanxi, China

Brand Name:

Yunyi

Model Number:

YD31A

Xi'an Yunyi Instrument Co., Ltd.

5Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

Tianjin shanghai shenzhen wenzhou etc

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shaanxi, China

Brand Name Yunyi

Model Number YD31A

China cheap industrial pressure sensor

Product Overviews

Applications of China cheap industrial pressure sensor :

Machine building

Machine tools

Measurement and control technology

Hydraulics and pneumatics

Pumps and compressors

Special Features of China cheap industrial pressure sensor :

Measuring ranges from 0 … 1 to 0 … 600 bar

Non-linearity 0.25 % or 0.5 %

Output 4 ... 20 mA, DC 0 ... 10 V, DC 0 ... 5 V and others

Electrical connection: Angular connector form A and C, circular connector M12 x 1, cable outlet 2m

Process connection G ¼ A DIN 3852-E, ¼ NPT and others

Specifications:

Parameters of China cheap industrial pressure sensor :

Model	A-10
Output signal	4-20mA, 0-10V, 0-5V and others
Pressure Range	0-0.1bar to 0-600bar
Pressure Interface	G1/4, 1/4NPT, M20*1.5 and others
Electric Interface	L plug interface, M12*1, 4-needle type, With cable
Auxiliary power supply	8-30VDC(14-30VDC when 0-10V) (can select 8-36 and 14-36 when 0-10V)
Nonlinear(3% of the Range)	<=±0.3% (according to IEC 61298-2) <=±0.6% Keep vertical installation and bottom connection
Accuracy(3% of the Range)	<=±0.5 (Nonlinear 0.3%) <=±0.6 (Nonlinear 0.3% and signal output 0-5V ) <=±1.0 (Nonlinear 0.6%)
Material	Wetted material: process connection 316L; pressure sensor 316L(0-10 bar rel XM-13) Wetted parts material: Silicone oil(suitable for the absolute range of 0-6bar and 0-25) Case: 316L
Allowable temperature	Measure Medium: 0-80°C Environmental temperature: 0-80°C Storage temperature: -20-80°C
Fatigue life	Ten million times cycle with maximum load
