New style push button 5 port 2 way mechanical valve
MSV: Mechanical Valve
98(Series Code): 98 Series
52(Position and Way NO): Two-position Five-way
2(Joint Pipe Bore) 2: G1/4"
MSV(Specification Code): Mechanical Valve
86(Series Code): 86 Series/98 Series
32(Position and Way NO)32: Two-position Three-way
52: Two-position Five-way
1(Joint Pipe Bore) 1: G1/8"
2: G2/4"

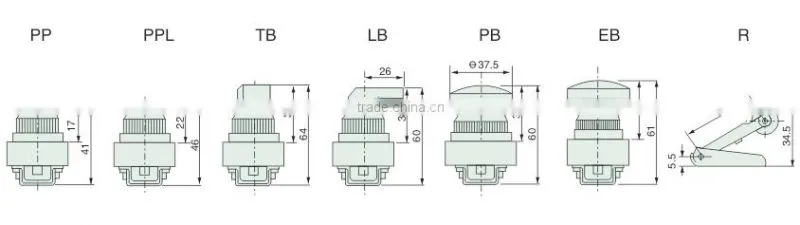

R(Button Type) Blank: Basic Type
R: Roller Type
TB: Selective Knob
LB: Strengthened Knob
PB: Large Round Button
PP: Plat Round Button
PPL: Convex Round Button
EB: With Lock Button
Ordering code:
Specification for mechanical valve lock :
| Model | MSV86321 | MSV86522 | MSV98322 | |||
| Working Medium | Micron Filtered Air | |||||
| The Position Counting | Two-position Three-way | Tow-position Four-way | Two-position Five-way | |||
| Joint Pipe Bore | G1/8 | G1/4 | G1/4 | |||
| Operating Temperature | 0~60 degree centigrade | |||||
| Effective Sectional Area | 12mm 2 (CV=0.67) | 16mm 2 (CV=0.89) | 16mm 2 (CV=0.89) | |||
| Working Pressure | 0~0.8Mpa | |||||

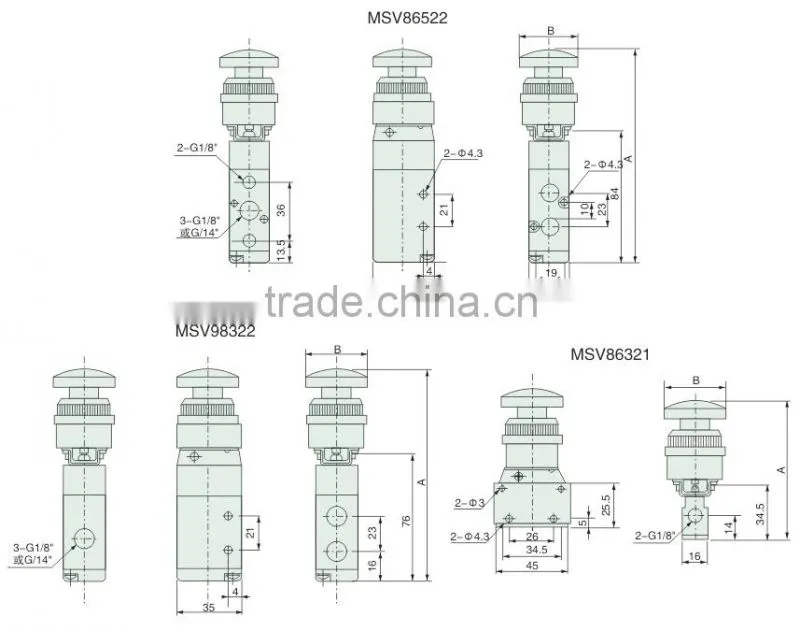

Dimension Size (mm) for mechanical valve lock :

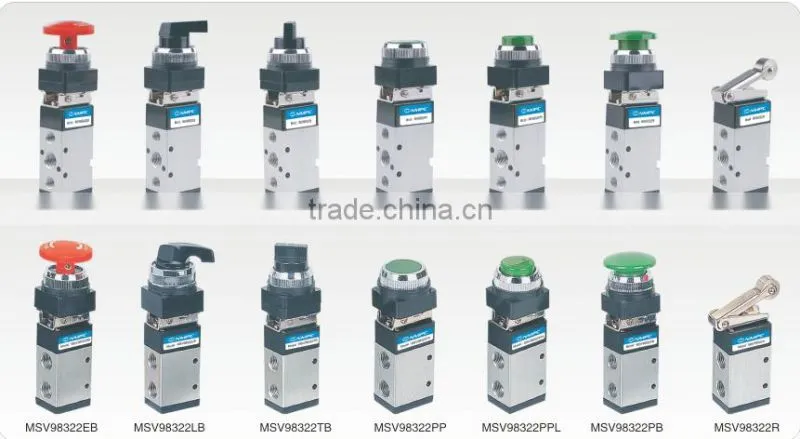

Photoes for 5 port 2 way mechanical valve :
Why choose us :
1: Various style for completely series pneumatic products for you to choose
2: High quality with competitive price
3: Sample order & small quantity order is ok
4: Provide free products information.
5. Reliable quality assured and active after-sell service
Guarantee :
1. 12 months Manufacturer s limited Warranty for defective items ( excluding items damaged and / or misused after receipt ) .Accessories come with a 3-month warranty .
3. If you are not satisfied when you receive your item , please return it within 14 days for a replacement or money back . Please contact me before you return it .WE DO NOT REPAIR OR REPLACE ITEMS WITH AN EXPIRED WARRANTY .
Feedback:
We maintain high standards of excellence and strive for 100% customer satisfaction ! Feedback is very important We request that you contact us immediately BEFORE you give us neutral or negative feedback , so that we can satisfactorily address your concerns .
We are the factory of pneumatic and hydraulic parts in China. We are producing high quality and general quality, do not produce low quality items.We are dealing of pneumatic valves , water valves , air solenoid valves ,air cylinders,air unit ,treatment unit . Filter , regulator ,Lubricator ,Pneumatic air water hydraulic cylinders , PU tube ,hose , fittings . Couplings. Connectors.
Warranty: Great Quality Products
We stand behind the quality of our products 100%. All of our items come with a warranty to give you a peace of mind.
New Guaranteed: All of our items are in BRAND NMPC condition in OEM or Original Packaging. Orders are packaged with care to make sure your items arrive in perfect condition.
if you have any question for 5 port 2 way mechanical valve , please contact us freely .
