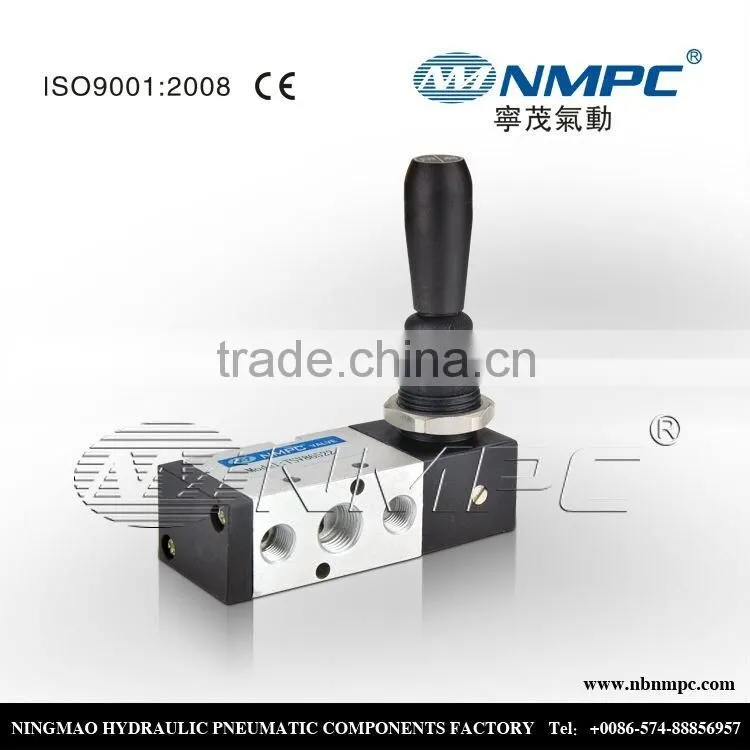

Manufacturer supply Hot sale manually operation screwed valve
Specification of manually operation screwed valve :
Model: 4H Series hand valves hand control valves
Position: single head double positiona and single head three positions 5/2, 3/2, 5/3
Available Type: 4H210-06 4H210-08 4H230-08 4H310-08 4H310-10 4H330-10 4H410-15 4H430-15
| Model | 4H210-08 | 4H230C-08 | 4H310-08 | 4H310-10 | 4H330-10 | 4H410-15 | ||
| Effective Cross Section Area | 16mm2(CV=0.89) | 12mm2(CV=0.67) | 25mm2(CV=1.4) | 30mm2(CV=1.68) | 18mm2(CV=1.00) | 50mm2(CV=2.79) | ||
| Port size | In=Out=G1/4", Exh=G1/8' |
In=Out=G1/4" Exhaus= G 1/8" |
In=Out=G3/8", Exh=G1/4' |
In=Out=G1/2" Exhaus=G 3/8" |
||||
| Working medium | 40 Micron filtered Air | |||||||
| Motion Pattern | Direct Drive Type | |||||||
| Working Pressure | 0~0.8MPa | |||||||
| Temperature | -5~60°C | |||||||
| Lubrication | no need | |||||||
| operating swing angle | ±15° | |||||||
Why choose us :
1: Various style for completely series pneumatic products for you to choose
2: High quality with competitive price
3: Sample order & small quantity order is ok
4: Provide free products information.
5. Reliable quality assured and active after-sell service
Guarantee :
1. 12 months Manufacturer s limited Warranty for defective items ( excluding items damaged and / or misused after receipt ) .Accessories come with a 3-month warranty .
2.Defective items MUST BE reported and returned within the warranty period You must tell us what the defect is and give us your order number .
3. If you are not satisfied when you receive your item , please return it within 14 days for a replacement or money back . Please contact me before you return it .WE DO NOT REPAIR OR REPLACE ITEMS WITH AN EXPIRED WARRANTY .
Feedback:
We maintain high standards of excellence and strive for 100% customer satisfaction ! Feedback is very important We request that you contact us immediately BEFORE you give us neutral or negative feedback , so that we can satisfactorily address your concerns .
We are the factory of pneumatic and hydraulic parts in China. We are producing high quality and general quality, do not produce low quality items.We are dealing of pneumatic valves , water valves , air solenoid valves ,air cylinders,air unit ,treatment unit . Filter , regulator ,Lubricator ,Pneumatic air water hydraulic cylinders , PU tube ,hose , fittings . Couplings. Connectors.
Warranty: Great Quality Products
We stand behind the quality of our products 100%. All of our items come with a warranty to give you a peace of mind.
New Guaranteed: All of our items are in BRAND NMPC condition in OEM or Original Packaging. Orders are packaged with care to make sure your items arrive in perfect condition.
if you have any question for manually operation screwed valve , please contact us freely .
