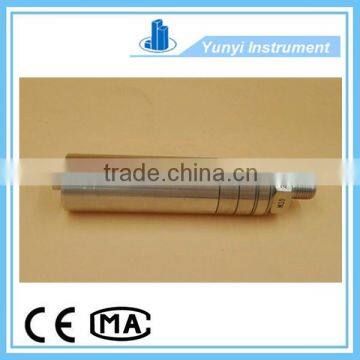

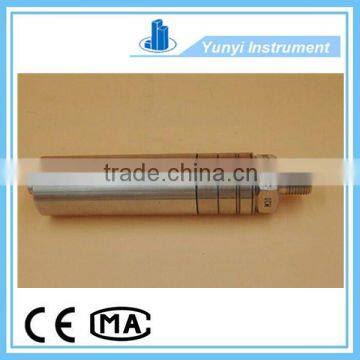

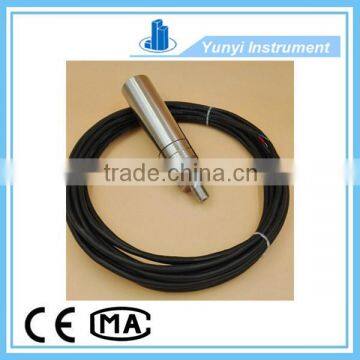

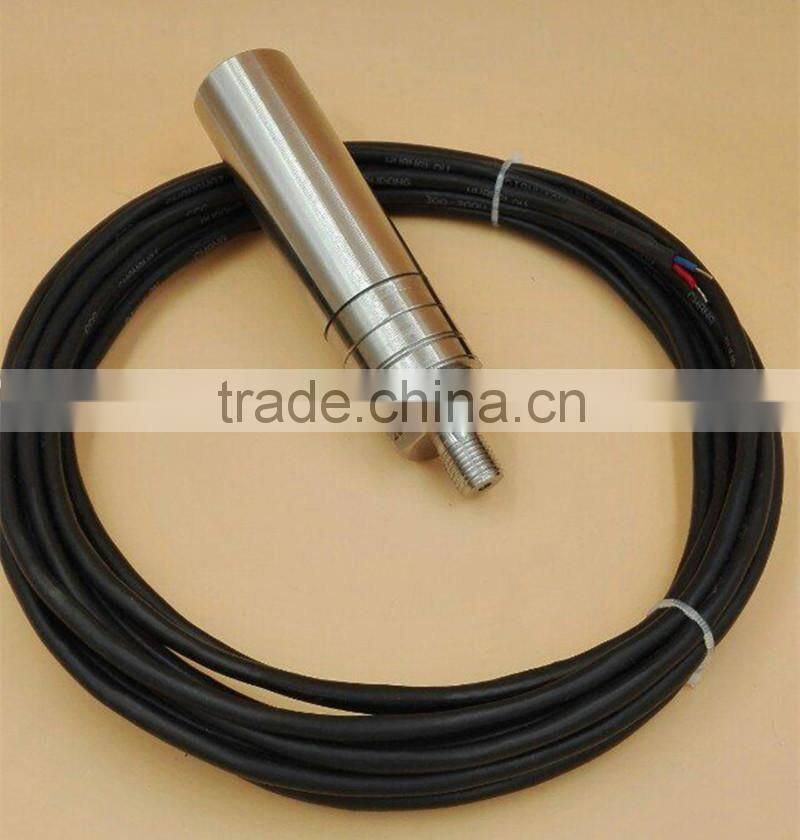

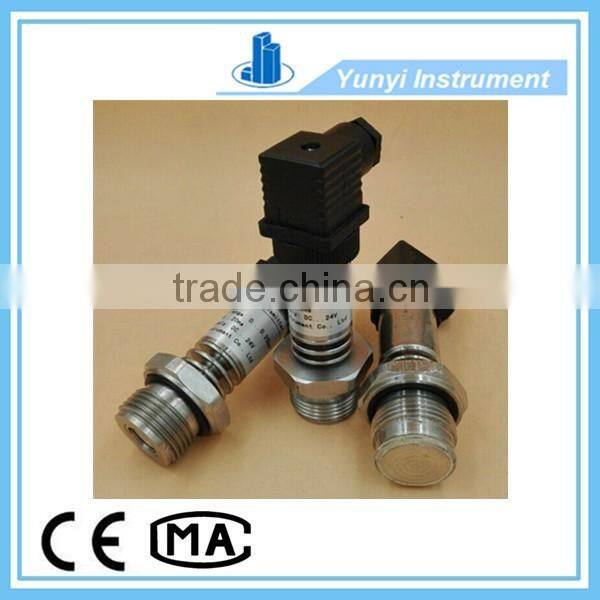

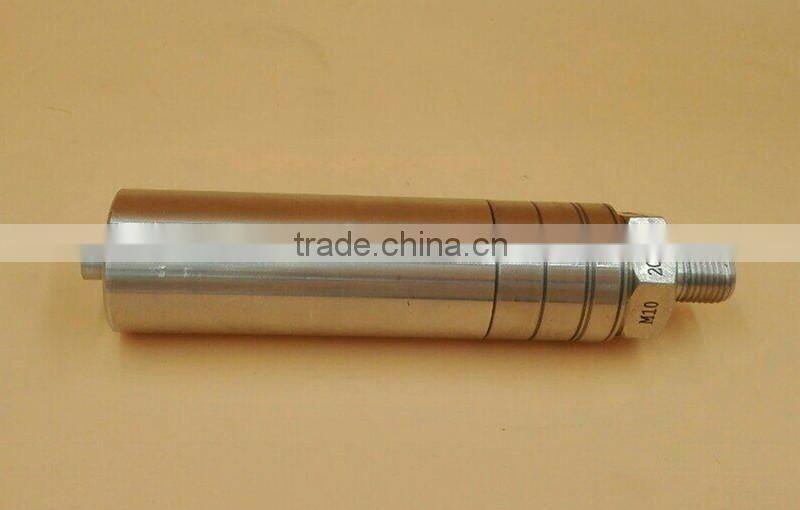

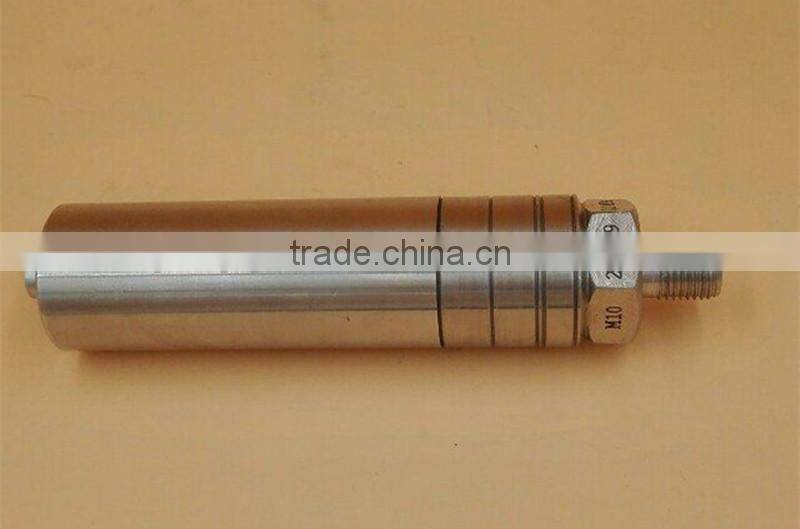

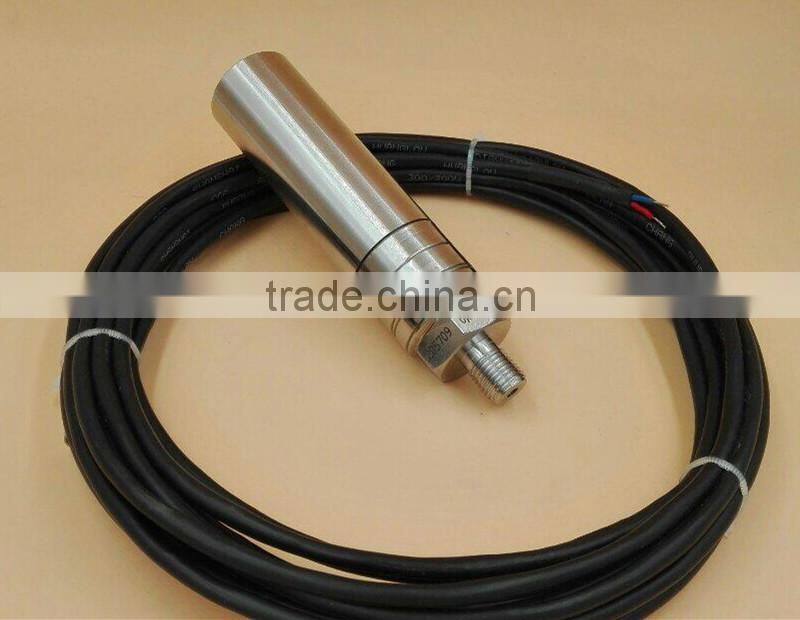

low temperature application pressure transducer
Specification of low temperature application pressure transducer :
Measuring media: liquid or gas (stainless steel without corrosion)
Overall Material: diaphragm 316s stainless steel, 304 stainless steel process connection
Pressure Range: -100kPa ~ 0 ~ 100MPa
Pressure way: gauge pressure, absolute pressure, negative
Output signal: 4 ~ 20mA, 0 ~ 5VDC, 0 ~ 10VDC, 1-5VDC, RS485
Power supply: 9-36VDC
Accuracy rating: 0.1% FS, 0.25% FS
Medium temperature: -40 ~ 150 ℃
Ambient temperature: -40 ~ 85 ℃
Seismic Performance: 25g (20 ... 2000Hz)
Overload: 200% FS
Response frequency: ≤500Hz
Stability: ± 0.1% FS / Year
Temperature drift: ± 0.01% FS / ℃
Protection: IP65
Maximum power: current type ≤0.02Us (W) voltage-≤0.008Us (W) numeric ≤0.015Us (W) Note: Us = supply voltage
Load characteristics: current-load ≤ {(Us-7) ÷ 0.02 (Us = supply voltage)} Ω
Voltage type load ≥100 kΩ
Fearures of low temperature application pressure transducer :
Imported diffused silicon pressure sensor and advanced membrane isolation technology
Amplifier integrated chips imported US BB, wide voltage supply
Cutoff frequency interference design, anti-jamming, anti-lightning
Wiring reverse and overvoltage protection, current limiting protection
High accuracy, good stability, fast response, impact resistance, high temperature
How to place an order
In order to recommend you the most suitable pressure transmitter and make an accurate quotation, please fill in the following form and send it to our sales when you are going to make an inquiry, thanks!
Requirements | ||
NO | Technical Parameters | |
1 | Pressure range | |
2 | Output signal | |
3 | Connection size | |
4 | Quantity | |
Your other requirements will be welcome | ||
How do you ensure the quality of products?
We have a complete quality control system, all of our products will be fully pre-inspection by QC departments before shipping to you.
| |
| |
| |
| |
