smc type big flow rate 3/4 pipe size compressed air regulator
AR Product Characteristics :
1. Structure with light and compact, easy to installation.
2. The pressure of self-lock institution,can prevent the pressure,
the interference and produce reshuffled. AR2000-02 SMC Air Regulator
3. Except the standard forms,have another low voltage type for
selection(maximum adjustable pressure is 0.4Mpa)
Ordering Code :
| A | R | 3000 | -03 |
| Series | Function Code | Specification Code | Joint Pipe Bore |
| A Series | Regulator | 2000 | 02:G1/4" |
| 3000 | 03:G3/8" | ||
| 4000 | 04:G1/2" | ||
| 5000 | 06:G3/4" | ||
| 10:G1" |
Specification :
| Model | AR2000-02 | AR3000-02 | AR3000-03 | AR4000-03 | AR4000-04 | AR4000-06 | AR5000-06 | AR5000-10 |
| Rated Flow | 550 | 2500 | 2500 | 2500 | 6000 | 6000 | 8000 | 8000 |
| Joint Pipe Bore | G1/4" | G1/4" | G3/8" | G3/8" | G1/2" | G3/4" | G3/4" | G1" |
| Highest Working Pressure | 1.0MPa | |||||||
| Ensured Pressure Resistance | 1.5MPa | |||||||
| Operating Temperature Range | 5~60℃ | |||||||
| Valve Type | With Overflow | |||||||
| Range of Pressure | 0.05~0.85MPa |
|||||||

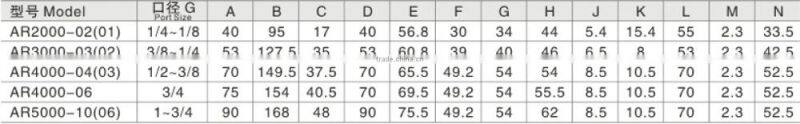

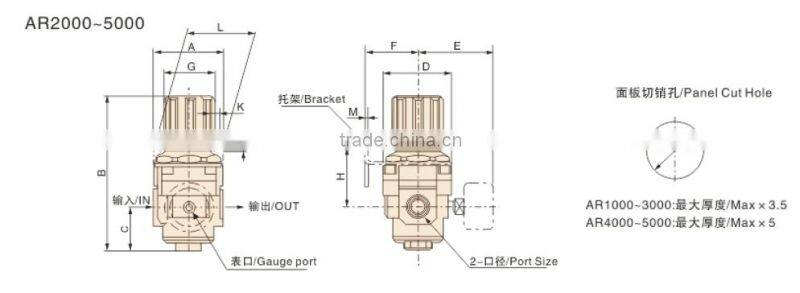

Dimension size (mm):

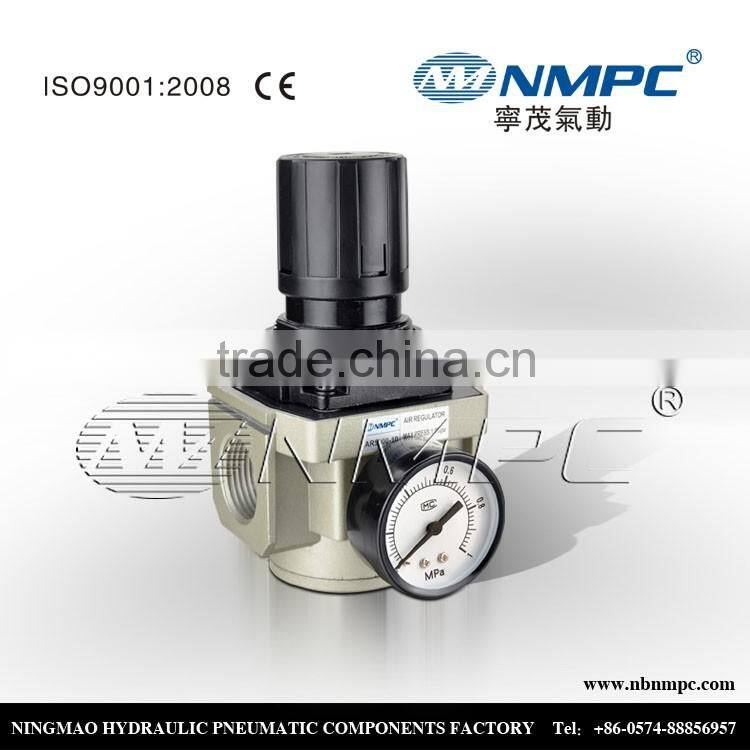

Pictures for 3/4 pipe size compressed air regulator :
