separator oil water air cartridge filter element

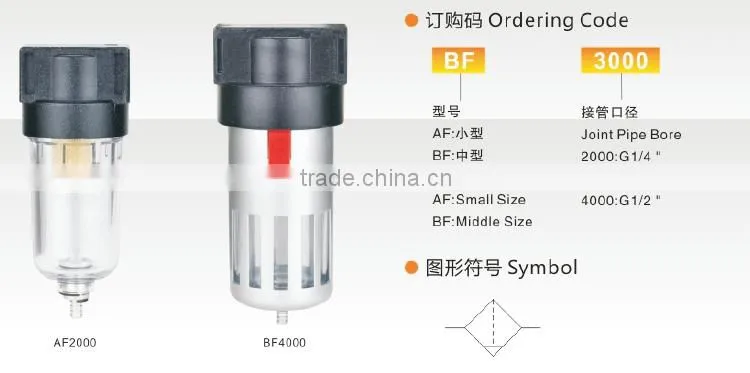

Ordering code :
| BF | 3000 | - | D |
| Model | Joint Pipe Bore | Drian Type | |
| AF:Small Size | 1500:G1/8" | Blank:Differential Drain | |
| BF:Middle Size | 2000:G1/4" | D:Automatic Drain | |
| 3000:G3/8" | |||
| 4000:G1/2" |
Specification :
| Model | AF2000 | BF2000 | BF3000 | BF4000 |
| Operating Fluid | Air | |||
| Joint Pipe Bore | G1/4" | G1/4" | G3/8" | G1/2" |
| Filtering Element Roughness | 40μ | |||
| Ensured Pressure Resistance | 1.5MPa | |||
| Operating Temperature Range | 5~60℃ | |||
| Capacity of Filter Cup | 15cc | 60cc | ||
| Suggested Lubricating Oil | ISO VG 32 or same level oil | |||
| Weight | 0.14KG | 0.33KG | ||
| Body Material | Aluminum Die-casting Forming | |||
| Container Cup Material | PE | |||
| Protective Cup Material | - | Iron | ||

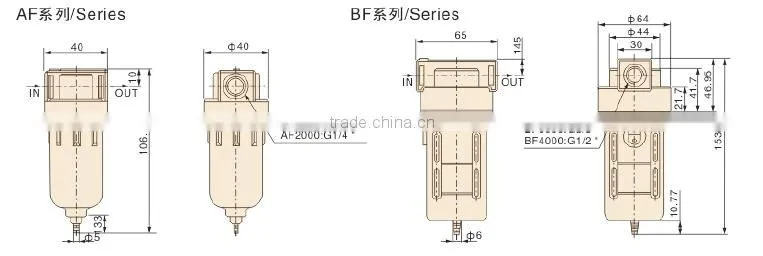

Dimension Size :

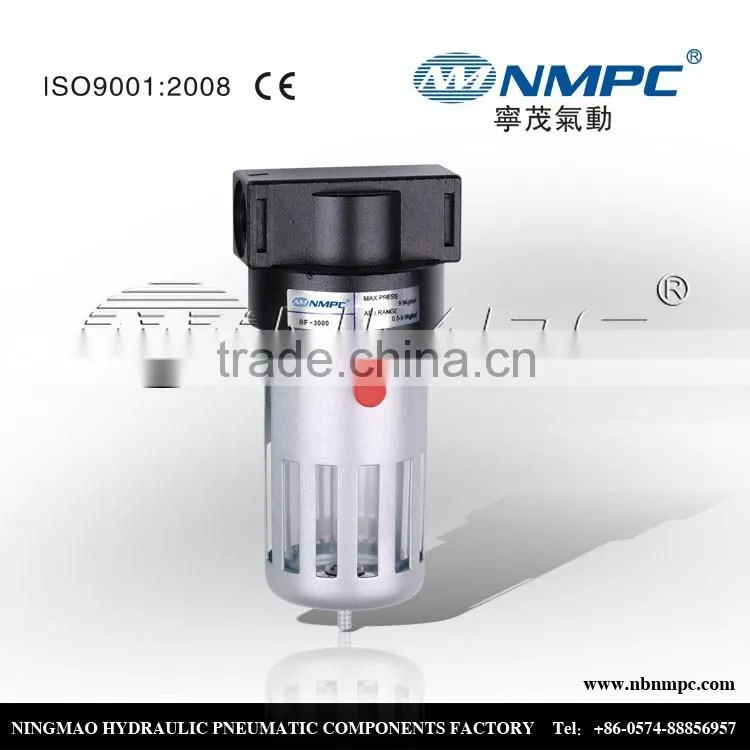

Photoes for air cartridge filter element :
Why choose us :
1: Various style for completely series pneumatic products for you to choose
2: High quality with competitive price
3: Sample order & small quantity order is ok
4: Provide free products information.
5. Reliable quality assured and active after-sell service
Guarantee :
1. 12 months Manufacturer s limited Warranty for defective items ( excluding items damaged and / or misused after receipt )
2. If you are not satisfied when you receive your item , please return it within 14 days for a replacement or money back . Please contact me before you return it .WE DO NOT REPAIR OR REPLACE ITEMS WITH AN EXPIRED WARRANTY
Feedback:
We maintain high standards of excellence and strive for 100% customer satisfaction ! Feedback is very important We request that you contact us immediately BEFORE you give us neutral or negative feedback , so that we can satisfactorily address your concerns .We are the factory of pneumatic and hydraulic parts in China. We are producing high quality and general quality, do not produce low quality items.We are dealing of pneumatic valves , water valves , air solenoid valves ,air cylinders,air unit ,treatment unit . Filter , regulator ,Lubricator ,Pneumatic air water hydraulic cylinders , PU tube ,hose , fittings . Couplings. Connectors.
Warranty: Great Quality Products
We stand behind the quality of our products 100%. All of our items come with a warranty to give you a peace of mind.
New Guaranteed: All of our items are in BRAND NMPC condition in OEM or Original
Packaging. Orders are packaged with care to make sure your items arrive in perfect condition.
if you have any question for air cartridge filter element , please contact us freely .
air cartridge filter element ,skype: ella.chou3 , whatsapp, mobile : +86 18768571962
