AFR2000 Manual Drain Air Regulator and Filter

AFR2000 manual drain air regulator and filter

Description:

air regulator and filter  ,0.5~9.5kgf/cm 0.05-0.95MPa

Filter and regulator together as one part, make it has compact dimension. Filter adopts novel vane design with high division efficiency and differential pressure discharge device. It can discharge water automatically. Regulator valve adopts balanced inlet structure with the advantages of stable pressure, high precision, and quick reaction.

Help filter liquid and foreign particles from compressed air line, widely used for pneumatic tool and components.

Specification:

• Product Name:Pneumatic Filter Regulator
• Material:Metal, Plastic
• Operating: Fluid Air
• Max. Pressure: 9.5kgf/cm2
• Adjustable Pressure Range: 0.5-9.5Kgf/cm2
• Ensured Pressure Resistance: 1.5MPa
• Operating Temperature Range: 5-60Degree
• Joint Pipe Bore: G1/4"
• Total Size: 15.8 x 4cm / 6.2" x 1.5" (L*D)
• Pressure Gauge Size: 4 x 2.3cm/1.6" x 0.9"(D*T)
• Color: As Picture Shown
• Weight: 214g

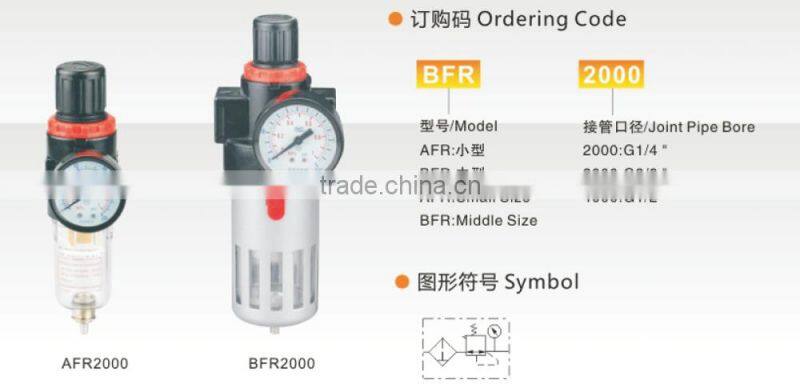

 Ordering code :

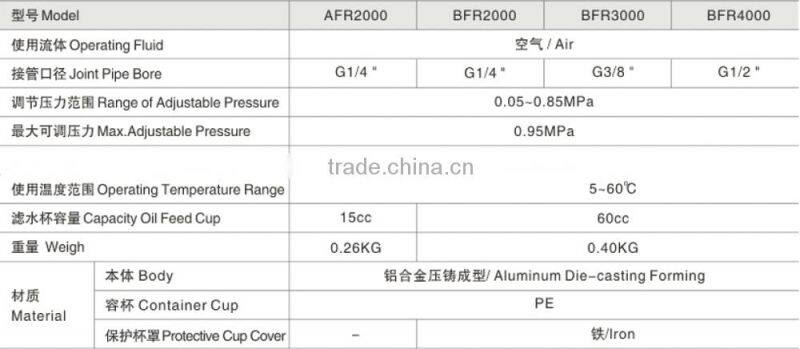

Specification :

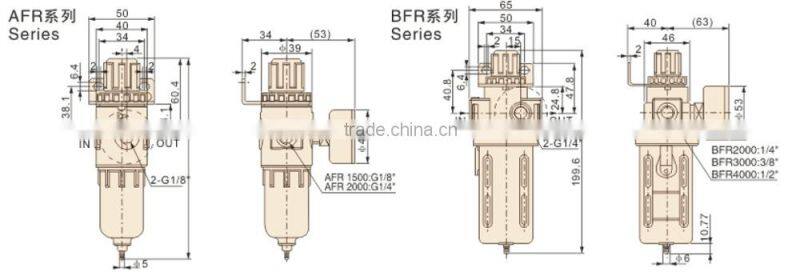

Drawing Size (mm):

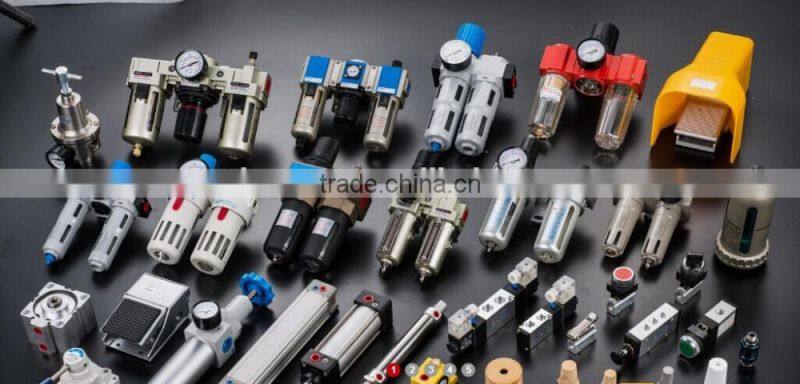

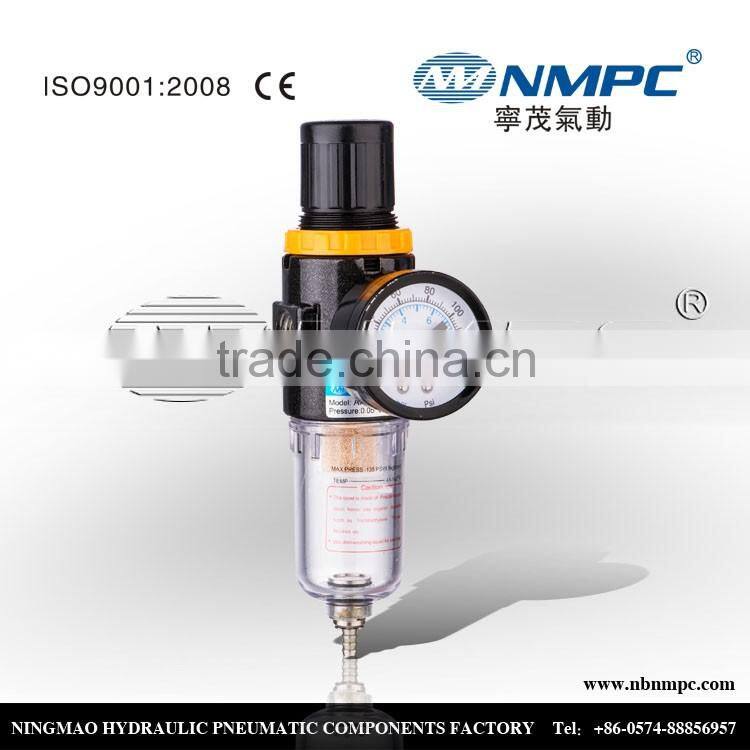

Images of air regulator and filter  :

Why choose us :

1: Various style for completely series pneumatic products for you to choose

2: High quality with competitive price

3: Sample order & small quantity order is ok

4: Provide free products information.

5. Reliable quality assured and active after-sell service

Guarantee :

1. 12 months Manufacturer s limited Warranty for defective items ( excluding items damaged and / or misused after receipt )

2. If you are not satisfied when you receive your item , please return it within 14 days for a replacement or money back . Please  contact me before you return it .WE DO NOT REPAIR OR REPLACE ITEMS WITH AN EXPIRED WARRANTY

Feedback:

We maintain high standards of excellence and strive for 100% customer satisfaction ! Feedback is very important We request that you contact us immediately BEFORE you give us neutral or negative feedback , so that we can satisfactorily address your concerns .We are the factory of pneumatic and hydraulic parts in China. We are producing high quality and general quality, do not produce low quality items.We are dealing of pneumatic valves ,  water valves , air solenoid valves ,air cylinders,air unit ,treatment unit . Filter , regulator ,Lubricator ,Pneumatic air water hydraulic cylinders , PU tube ,hose , fittings . Couplings. Connectors.

Warranty: Great Quality Products

We stand behind the quality of our products 100%. All of our items come with a warranty to give you a peace of mind.

New Guaranteed: All of our items are in BRAND NMPC condition in OEM  or Original

Packaging. Orders are packaged with care to make sure your items arrive in perfect condition.

if you have any question to air regulator and filter  , please contact us freely .

air regulator and filter  , skype: ella.chou3 , whatsapp, mobile : +86 18768571962
