good quality mini compressed air cylinders MAL 32*125
Features:
1) Normal bore size from 32mm to 200mm,bigger size from 250mm to 400mm can also be provided.
2) Provided with adjustable cushion on both cylinder end covers to make sure cylinder works smoothly,safely and with low noise.
3) Spray painted cylinder head and internal hard anodized cylinder body.
4) With self lubricating bearing,the piston rod is lubrication free.
5)Magnet and sufficient fixing style are available.
6) Precision grinding piston rod,cylinder parts were processed by high precision CNC machine and good seals to guarantee good action and long lifetime.
7) Double ends SCD,stroke adjustable SCJ and tow –stage SCT can also be supplied.
Specification
1.Cylinder Bore(mm):Φ12,Φ16,Φ20,Φ25,Φ32,Φ40
2.Product name : double acting airtac pneumatic cylinder
3.Motion pattern : Doulbe Action/ Single Action Extrusion type/Single Action Drawing-in Type
Bore size : 16--40 mm, Working pressure : 1-9 kgf/m2, Fixed type: Basic ; LB ; FA; SDB
4.Built-in magnetic ring
5.With Buffer mat
6.Delicate appearance
pneumatic mini electric cylinder
| Mode | 20 | 25 | 32 | 40 |
| Motion | Double acting | |||
| Fluid | Compressed air | |||
| Working Pressure | 0.1~1Mpa | |||
| Temperature | -10~70 | |||
| Port Size | 1/8" | 1/4" | ||

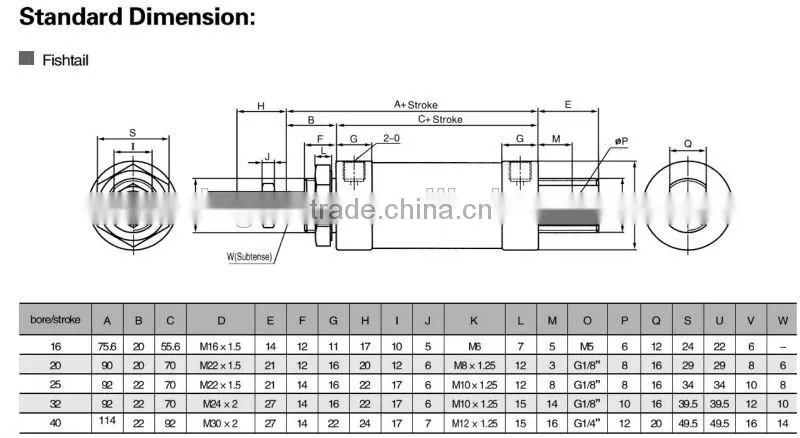

Dimension size :
Products:
In addition to our cooper parts mainly used in pneumaic and hydraulic fidlds , we have developed pu air tubes ,samll ball valves,quick couplings,ect.RIXIN BRASS FITTING CO.,LTD founded in 1991 . The factory is a private enterprise covering the complete process of design , manufacture,marketing and service.
Professional production equipment
The factory has five production line,more than 100 workers . Cutting workshop make the brass raw material into appropriate length.after cutting some material send to Instrument lathe workshop and CNC workshop ,some of material send to punch workshop processed into the shape which we need. our CNC work shop Produces the product accuracy can be controlled in the error of 0.01 mm . And punch workshop can make goods according to your needed . The Assembly shop with automated equipment , Reduce the error of the product. PU tube workshop using European automation equipment,and clean management.
Rich processing experience
Our engineers team with rich experience in production line, an average of more than 10 years of experience in practice
Each year more than a month of study and communication It is our claim to the engineer.we have the modern warehouse management to ensure that the appropriate inventory to guarantee the delivery time, through the information management to reduce the warehouse cost, make products with competitive price.
Profession design team
We have our own product design team, and packaging design team.Help us to make the products fit your market , and help you win the market. we can make your logo on products and make the packaging with your logo or your design .
Rigid quality control
Every products we produce with strict inspection more than two times before packaging. We have a full set of inspection equipment,to do Pressure test and temperature test,some of products will do the durability test.To ensure every products with good quality .
expert service term to make sure all your question can be answered in 24 hours. We welcome your visit, phone call and email.
Our Advantages:
1. We Are Factory: Our factory address is:NO.3 Yongping Road , Xikou Industrial Zone ,Ningbo, China Postcode: 315502
2. Regional Sales: We provide specialized sales service refers to different kind of region all over the world. Each sales team member is good at the local language and well experienced to the responsible market. For example: Russian, German, Spanish, Japanese, etc.
3. Low MOQ: Our factory owns the casting company by itself. We are always ready for providing the sample and producing some small orders, in order to meet the business well.
4. OEM Accepted: We can make the products with the client's demand standard or the custom requirement.
5. Complete Service: We are always ready to hear from you, be responding to your enquiry immediately.Our trade manager is always online for you.
6. Good Quality: We have strict quality control system and amounts of testing equipments for different kind of valve, such as size, pressure, working environment etc. We are winning the market reputation with the time goes by.
7. Quick Delivery: We have the large stock for some hot products.
8. Competitive Prices:We are the manufacturing company which has our own manufacturing workshop . We provide the straight factory price ( EXW) and service to our customer.
