Digital Ultrasonic Flaw Detector

Standard export package

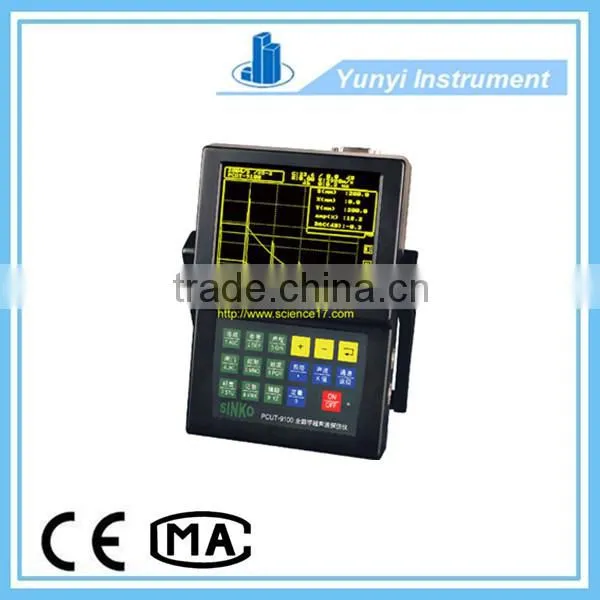

digital ultrasonic flaw detector

Description:

Ultrasonic fault detector is widely used at present, all-digital intelligent ultrasonic flaw detector USES the international advanced digital integration and artificial intelligence technology, imported components SMT assembly, display devices for the latest high-speed highlight 6.5 inch TFT true color display, various performance indexes reach or exceed the international advanced level; Internal defects, the equipment is used for the detection of various materials such as aluminum, copper, steel, hard alloy, casting, organic glass, composite materials, and weld, and so on, which can effectively detect air flow, cracks, porosity, inclusion, incomplete fusion, fully functional, practical, and is a real notebook digital ultrasonic flaw detector.

Technical parameters:

1. Ultrasonic flaw detector gain range 110 db.

2. Ultrasonic flaw detector band width is 0.4 ~ 20.0 MHz

3. Ultrasonic flaw detector detect range  0.1 ~ 7000.0 mm

4. Sensitivity margin > 62 db (phi 2 flat bottom hole depth 200 mm)

5. Resolution > 40 db

6. Dynamic range > 36 db

7. Horizontal linear < 0.1%

8. Vertical linear < 3%
9. Noise level 10%

10.Attenuation error < + 1 db / 12 db
