Metal Element Analyzer

Standard export package

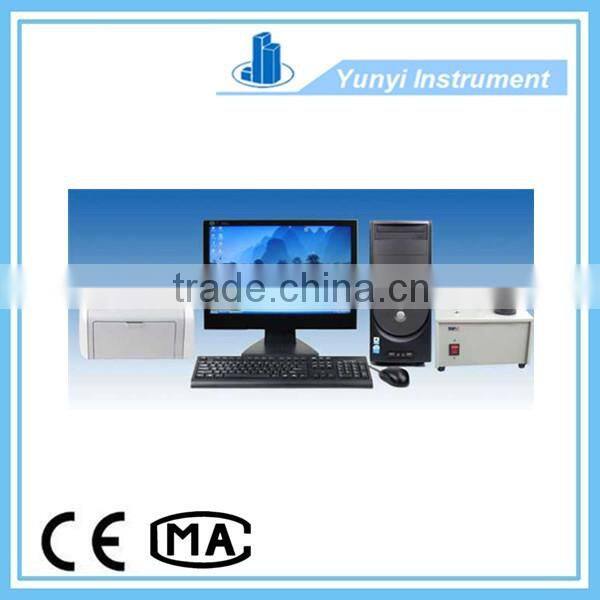

Metal element analyzer

Description:

Metallic element analyzer is a comprehensive domestic newest analyzer, one instrument can meet the C, S in steel and alloy materials, Mn, P, Si, Cr, Ni, Mo, Cu, Al, Ti, V, W, Nb, Co elements such as Mg, rare earth amount, content detection, were set up with five channel (and) can be set up according to customer requirements into ten channel, each channel within 30 small channel is set respectively, can store 158 of the working curve, a set of instruments can detect 158 kinds of elements, microcomputer controlled by computer brand, and is equipped with electronic balance, full Chinese menu type operation, desktop printer to print the results.

Technical parameters:

1.  Measuring range: (because of the instrument can detect elements is more, now with C, S in steel, Mn,        P, Si, Cr, Ni and other common elements, for example) C: 0.010 ~ 6.000% S: 0.0030 ~ 2.000% Mn:      0.010 ~ 20.500% P: 0.0005 ~ 1.0000% Si: 0.010 ~ 18.000% Cr: 0.010 ~ 38.000% Ni: 0.010 ~            48.000% Mo: 0.010 ~ 7.00% Σ RE: 0.0100 ~ 0.500% Mg: 0.0100 ~ 0.800% Cu: 0.010 ~ 8.000%        Ti: 0.010 ~ 5.000%, such as change the test condition, the range can be expanded accordingly.

2.  One instrument can detect all the conventional elements in steel C, S, Mn, P, Si, Cr, Ni, Mo, Cu, V,          Ti, Al, W, etc

3.  Microcomputer controlled by computer brand, electronic scales, desktop printers print test results

4.  Test software function is all ready, can completely replace the traditional laboratory in all kinds of              manual written work, and can according to the practical requirements, an arbitrary set test report              format, enter any detection conditions and query historical data.

5.  Detection, detection of 158 elements of channel space.

6.  Measuring time: 45 s

7. Test scope: C: 0.010 ~ 6.000% S: 0.0030 ~ 2.000% Mn: 0.010 ~ 20.500% P: 0.0005 ~ 1.0000%          Si: 0.010 ~ 18.000

8. Use scope: steel, aluminum alloy

9. Power supply voltage: 220, 50 (V/HZ)
