   2016 new Chinese manufacturer  DJ-9 Holiday Detector





DJ-9 Holiday Detector



Type DJ-9 holiday detector is a high-voltage special detector that is used to detect the quality of metal anti-corrosion coating. This detector can detect different thickness of coatings, such as glass lining, glass reinforced plastic, epoxy coal tar, rubber lining and so on. The detector will emit bright sparks and with sound alarm when something is wrong with the coating, such as the emergence of pinhole, air bubbles, fissures and cracks. As powered by Ni-MH battery, and with small size and light in weight, it is especially suitable for field operation. The detector is the essential tool used for detecting the quality of metal anti-corrosion coating and can be used widely in many industries including chemical, petroleum, rubber and ceramic, due to its sophisticated design and stable & reliable performances.







Description:



Detection principle: the spark leak detector performs detection of the anti-corrosion coating by exerting a certain amount of pulse high-voltage on the surfaces of anti-corrosion coatings of various conductive matrix, and the pulse high-voltage will form air gap and breakdown, and result in spark discharge, and send a pulse signal to alarm circuit to occur sound alarm when it pass through, if the anti-corrosion coating is much thin, metal leaks or there are leakage pinholes.



















Technical parameters



1. Applicable detection thickness: 0.05 ~ 10mm



2. Output High-voltage: 0.6kv~30kv (stepless and continually adjustable)



3. Leakage points showed



4. Direct indication of output high-voltage



5. Battery:12V/2800mA



6. Power consumption: about 6W



7. Dimension: 220×130×88 mm



8. Back light



9. Instantaneous boot, and automatic shutdown



10. 3–digit LCD displays output voltage, and with all-touch panel



11. Alarm: Dual alarm with earphone and buzzer

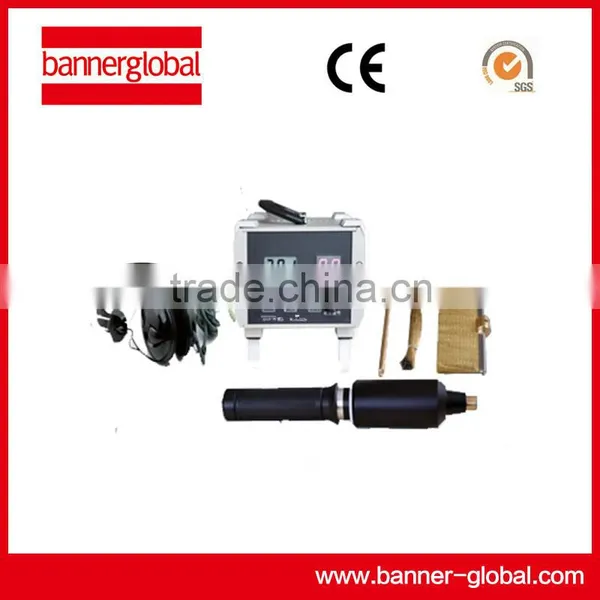

The main parts



DJ-9



1. host                                    ×1



2.high voltage probe           ×1



3.brush(brush / straight brush)×2



nnecting rod                         ×1



5. headphones                             ×1

6.strap                                          ×1

7.fuse                                           ×2



8.manual                                      ×1

9.warranty card                           ×1

10.charger                                     ×1

11.grounding  wire                       ×1



12.grounding rod                          ×1



13.packing box                             ×1
