2016 Chinese Manufacturer HCH-3000D Ultrasonic Thickness Gauge

2016 Chinese Manufacturer HCH-3000D Ultrasonic Thickness Gauge thumbnail-1
2016 Chinese Manufacturer HCH-3000D Ultrasonic Thickness Gauge photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
China
Brand Name:
Bannerglobal
Model Number:
HCH-3000D
Contact Supplier Request Quote Chat Now
Shandong Banner International Trade Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin China
Brand Name Bannerglobal
Model Number HCH-3000D
Product Description

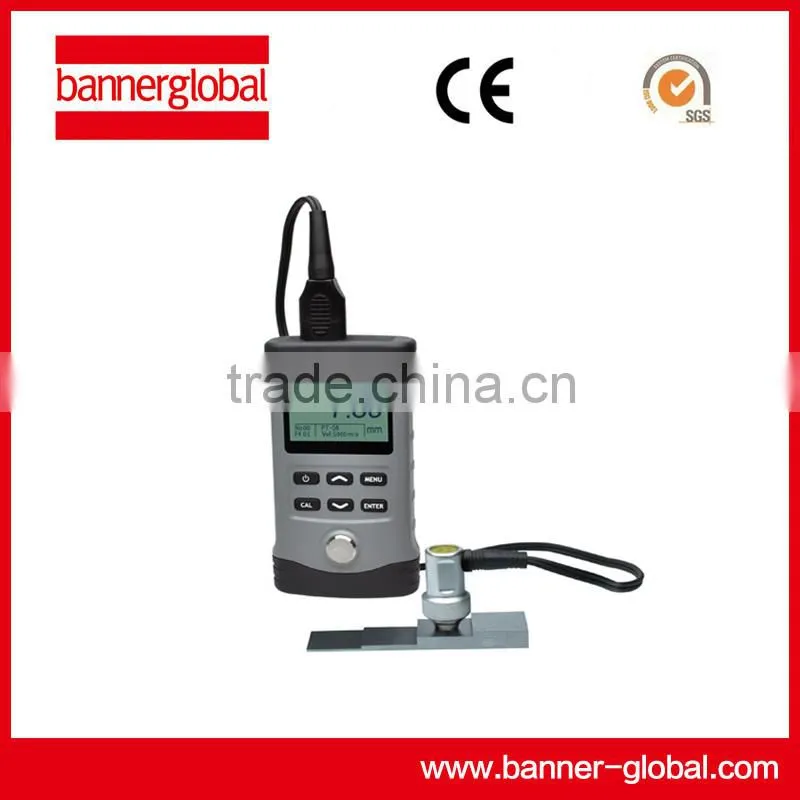

  2016 Chinese manufacturer HCH-3000D ultrasonic thickness gauge











1.HCH-3000D type new fashion look, low power consumption,



    waterproof, touch Control button , easy to use.



2. automatic identification probes, may manually choose probe.



3. two measurement modes, the basic mode, monitoring mode,



    so as to facilitate customer  monitoring measurements.



4. data transmission, RS232 interface with micro printer or PC



    Connection.



5.five kinds of probes can be arbitrarily chosen match

















Technical parameters:



Type HCH-3000D



Measuring range 0.65—360mm(45# Steel)



Accuracy 0.01mm



Error value



(H is thickness of the material) H<10mm  ±0.05mm



                         H≥10mm   ±(0.01+H/200)



Tempreture of tested material -20℃~550℃(depending on the probe)



Velocity range 1000~9990 m/s



Probe Standard equipped with 5MH probe, the probe can also choose the others



Data processing Can store 600 measurement data, can be connected to a printer and pc



Power 2 pieces of AA batteries



Auto power off Automatic power standby after five minutes



Display Screen Black and white display Liquid crystal(LCD), 100 x 100, automatic backlight



Show information Coupled instructions, measurement rate



Operating environment Temperature -10 ℃ ~ 60 ℃, relative humidity <90







Random accessories                      Options:



1,   HCH-3000D host   1               Full series of probe selection







2, the probe (φ8 probe)   1              ( high temperature,cast iron,smalldiameter probe)







3,couplant             1                     Toolbox







4,Manual             1                     Printer







5,warranty card, certificate     1           Computer connect cable







6, two AA batteries        1







7, suitcase   1



8,step test block (optional)   1







 Material velocity



Material

Velocity(M/S)

Material

Velocity(M/S)

Steel

 5900

Chrome

6200

Cast iron

4600

Copper

 4700

Brass

4640

Gold

3240

Aluminum

6400

Plexiglass

2730

Stainless steel

5790

Lead

2400

Tin

3230

 Zinc

4170





















  2016 Chinese manufacturer HCH-3000D ultrasonic thickness gauge















 Material velocity







Material Velocity(M/S) Material Velocity(M/S)



Steel 5900 Chrome 6200



Cast iron 4600 Copper 4700



Brass 4640 Gold 3240



Aluminum 6400 Plexiglass 2730



Stainless steel 5790 Lead 2400



Tin 3230 Zinc 4170









FAQ

Q1: I want to buy your products, how can I pay?

A :You can pay via T/T , T/C, Western Union,MoneyGram or other payment terms we reach agreement.

Q2: How can you guarantee the quality?

A: One year's warranty against B/L date.

 If You meet with quality problem, we promise to responsible for it.

Q3: If we don’t find what we want on your website, what should we do?

A: You can email us the descriptions and pictures of the products you need, We will check whether we can make it.

Q4: Can we buy 1 pc of each item for quality testing?

A: Yes, we understand quality test is important and we are glad to send 1pc for quality testing.
