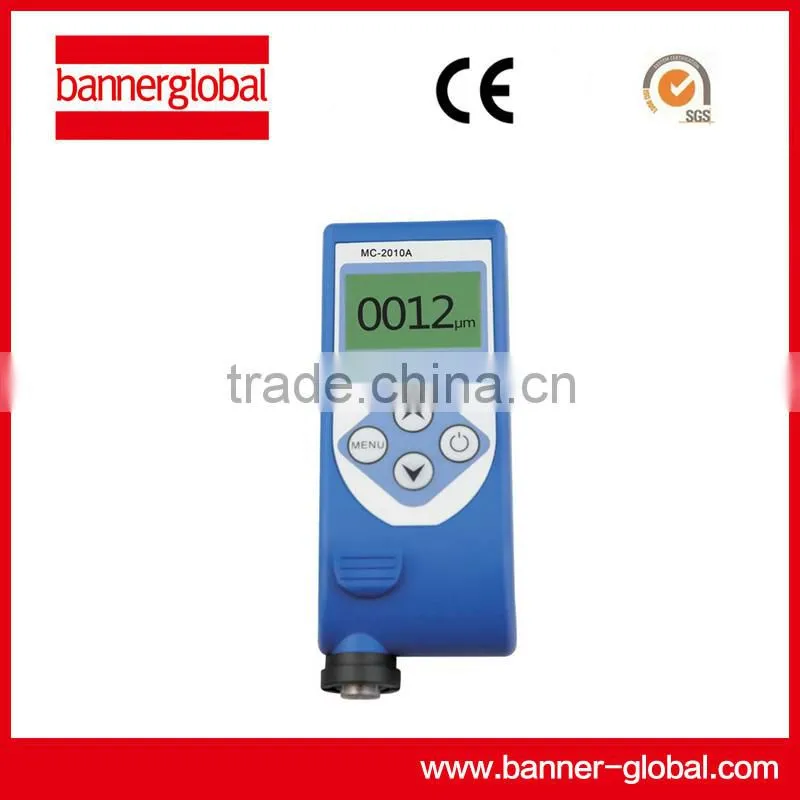

MC-2010A coating thickness gauge
1. using magnetic thickness measurement, the ferromagnetic material can measure the thickness of non-magnetic coatings
2. one-piece body, small light weight. Easy to use, full-scale measurements.
3.low voltage indication, statistics, zero / two-point calibration function.
4. There are three statistics: the average, maximum, minimum.
5. Measuring range: 0 ~ 1200um.Aaccuracy: 1μm
Technical parameters
Type MC-2010A
Measuring range 0~1200μm
Masuring Error <3%±1μm
Minimum curvature radius of the matrix bulge: 1.5mm hollow: 6mm
matrix minimum thickness 0.2mm
Matrix minimum plane 7mm
Probe Single probe
Aaccuracy 1μm
Power Two 1.5V AAA batteries
Power consumption Maximum power consumption 100mw
Display Screen Black and white display Liquid crystal(LCD), 100 * 100, automatic backlight
Show information Coupled instructions, measurement rate
Operating environment Temperature -10 ℃ ~ 60 ℃, relative humidity <90
Random accessories
1.MC-2010A host ×1
2. AAA batteries×2
3.Probe×1
4. Standard Samples×1
5. Instructions×1
6. warranty card certificate×1
7. suitcase ×1
Options:
1. PC connection cable and software CD
2.Printer
3. Detection Kit
Packed by standard export fumigated wooden cases.
Ship from Qingdao port, is expected to arrive about 30days
Q1: I want to buy your products, how can I pay?
A :You can pay via T/T , T/C, Western Union,MoneyGram or other payment terms we reach agreement.
Q2: How can you guarantee the quality?
A: One year's warranty against B/L date.
If You meet with quality problem, we promise to responsible for it.
Q3: If we don’t find what we want on your website, what should we do?
A: You can email us the descriptions and pictures of the products you need, We will check whether we can make it.
Q4: Can we buy 1 pc of each item for quality testing?
A: Yes, we understand quality test is important and we are glad to send 1pc for quality testing.
