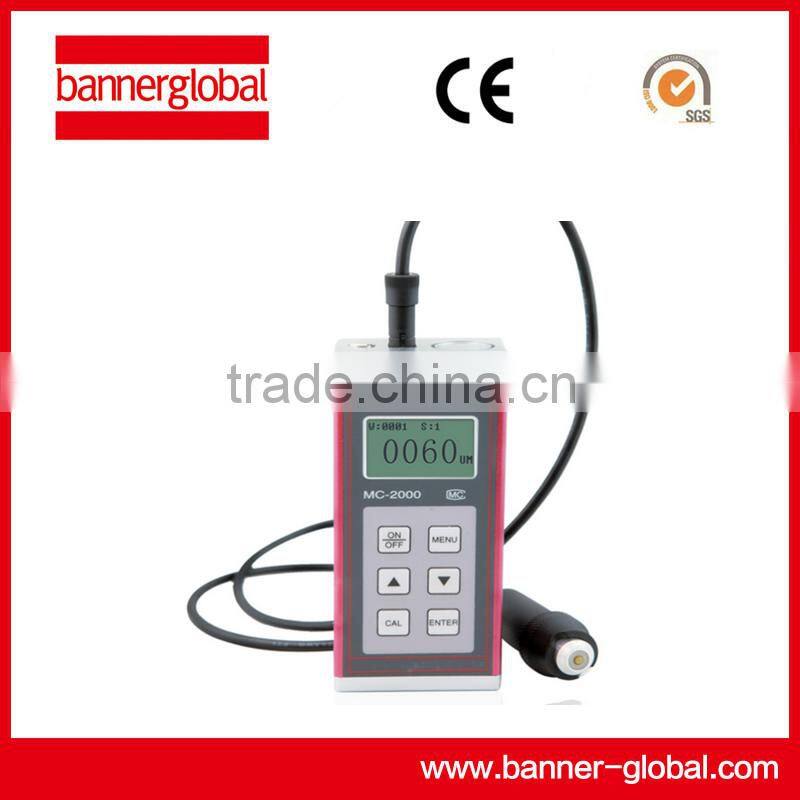

2016 Chinese manufacturer MC-2000D coating thickness gauge
1.MC-2000D measurement units reached μm level. It also has a high-precision
, Wide range of measurement.
2. high contrast LCD display, a unique automatic backlight function when the light is dim
, The background light will automatically turn on.
3. single probe thickness measurement, can store 600 data, with an average value, maximum value. minimum value three kinds of statistics.
4.It is easy to use, compact and solid structure, only a few keystrokes,
Specifically designed for one-handed operation.
5. Measurement range: 0 ~ 1200μm
Technical parameters
Type MC-2000D
measuring range 0~1200μm
measuring error <3%±1μm
Minimum curvature radius of the matrix bulge: 1.5mm hollow: 6mm
matrix minimum thickness 0.2mm
Matrix minimum plane 7mm
probe single- probe full-range measurement
Data processing Can store 600 measurement data ,can be connected to computers and small printers
power 2 pieces of AAA batteries
Power consumption Maximum power consumption 100mw
Display Screen Black and white display Liquid crystal(LCD), 100 *100, automatic backlight
Show information .Coupled instructions, measurement rate
Operating environment Temperature -10 ℃ ~ 60 ℃, relative humidity <90
Random accessories
1.MC-2000D host ×1
2.1.5Vbatteries ×2
3. Probe ×1
4.Standard Samples ×1
5.Instructions ×1
6. warranty card certificate ×1
7.suitcase ×1
Options:
1.Printer
2.Detection Kit
Shandong Banner International Trade Co., LTD., is your most reliable test helper in material testing industry. Bannerglobal is our brand. The founder and main leaders of our company worked in MTS Systems Corporation more than ten years and provided solutions for various demanding and extremely complex material testing in many fields of China. Our goal is to create the best test experience for customers by providing the best quality products, professional technical support and world-class service to ensure accuracy, repeatability and reliability of test data.
Our product catalog:
Electronic universal testing machine
Hydraulic universal testing machine
Electronic torsion test machine
Tensile testing machine
Pressure testing machine
Pendulum impact testing machine
Packed by standard export fumigated wooden cases.
Ship from Qingdao port, is expected to arrive about 30days
