china supplier semi automatic plane/cylinder heat transfer machine TR-350 for bottle, cups
china supplier semi automatic plane/cylinder heat transfer machine TR-350 for bottle, cups
The application of the heat transfer machine:
gold stamping and heat transfer machine,there are Beautiful elegant appearance,there are mainly used for Premium Toy,stationery,wood,premium makeup and commodity surface of decoration.Special for hot stamping like ABS,PP,PE,PS,AS,PVC,acrylic etc.there are shapes:plane,Circular surface,surface,conical surface.
Scope round heat transfer products; such as: plastic cups, cosmetic bottles, glass bottles, bottle of transfer.
The features of the heat transfer machine:
1.Computer controller, ensure reliable machine operation.
2. Using Omron temperature controller to ensure that heating temperature stability, and ensure stamping quality.
3. Toggle mechanism design, low consumption of compressed air, pressure strong.
4. Stamping pressure, temperature, hot pressing time is adjustable.
5. Table automatically before and after the move, easy to operate safely and quickly.
6.Table 6 can be front, left, rotate the adjustment.
7. Automatic document feeder, the collection of paper, and adjustable.
8. Installation of photocell (electric eye) with the contacts after the transfer paper on the track in place control.
9. Stamping head height adjustable lift, a larger work can be stamping.
10. with security guards to protect the operator's safety
The parameters of the heat transfer machine:
1.Hot plate area: 150X300mm
2.Heating power: 300w
3.Largest Transfer Printing Speed: 500pcs/hr
4.Form factor: 135X65X190MM
5.Hot Stamping largest diameter: 240mm
6.Hot Stamping pressure range of options: ≤ 130kgf
7.Controlled temperature: 400 degrees at room temperature

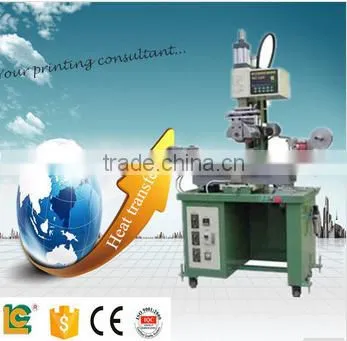

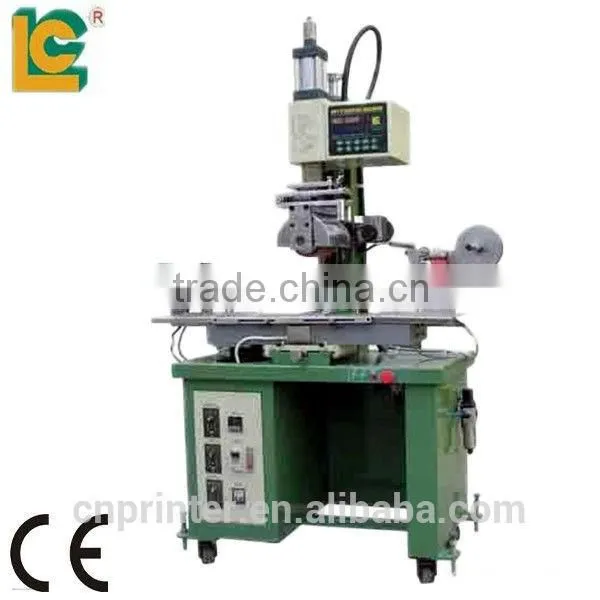

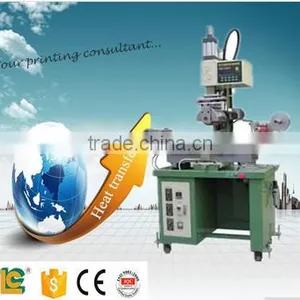

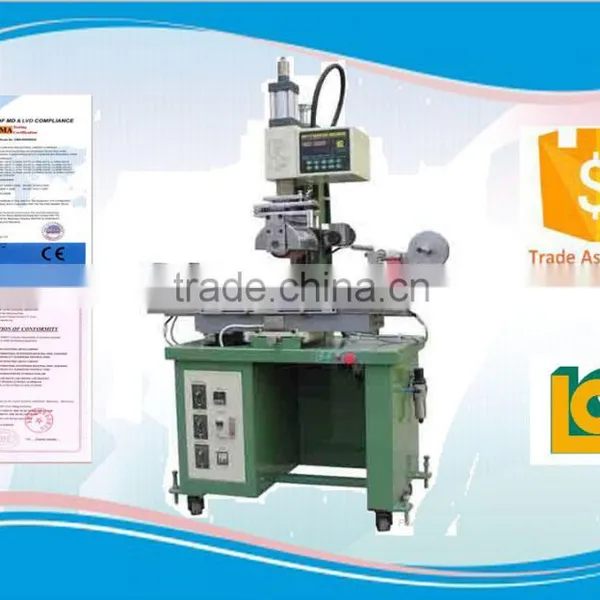

The pictures of the heat transfer machine:

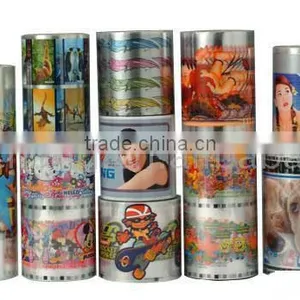

The samples of the heat transfer machine:
china supplier semi automatic plane/cylinder heat transfer machine TR-350 for bottle, cups
1.All of machines provide an English operation instruction.
2.All of machines can guarantee 1 year for free and provide specific video .
3.Welcome to visit our factory and we supply technology training any time.
Luen Cheong Printing Equipment Group Ltd. established in 1991,which is professional in develop, manufacture and sales the Screen printer, Pad printer, Hot stamping machine, Heat transfer machine, Peripheral Equipment &Accessory. With the long time experience in manufacture special printing equipment, we are focus on making the good quality printing equipment and whole solution service for domestic and aboard.
In order to benefit good rights and interests for our customers, we have done the testing strictly before the machine exports; try to provide the best after-sales service for our customers.
Company Purpose: The best quality, leading technology, and provide the best product and service for our customers.
1.Keep the machine cleaning
2. Refence the outside drawing of work piece to make holder and model.
3. Washing the part of slide weekly, and feeding the lubricating oil.
4. Deal with the water in the filter regual, for protect the pneumatic system transfer.
5.the size of Pad Plate must fit for the size of Inkwell
6. Pay attention to the choice of pad:
The hardness of pad includes the “soft”, “medium” and “hard”. If prints fine design, you should choose the hard pad, while prints on accidented surface, use the soft pad, furthermore, the volume and shape of pad should be similar with size of the design and surface shape of the work piece.
7. Usage of ink:
According to different kinds of work pieces, such as plastic, glass or metal, etc. you should choose different inks, and the ink should be stirred before pouring into the ink cup.
8. When operation of the machine is paused, you should let the ink scraping system go on working in order to prevent the ink from air-drying.
9. During printing, you should infuse thinner into the inkwell according to different air-dry speed of the inks in order to keep the proper viscosity of the ink. After infusing the thinner, stir the ink immediately. If the pad is stained, clean it with the cleanser.
10. When the printing finished, need to wash the steel plate and pad.
11.Infuse lubricant once per week
