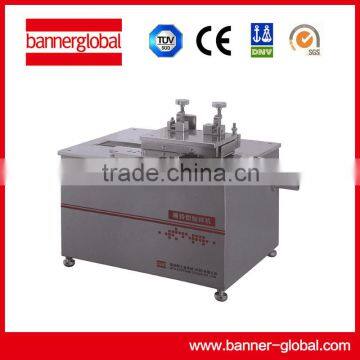

ZYJ1251 electronic tensile testing machine
Equipment overview:
This machine is suitable for producing all kinds of non - metal tubes or plates of dumbbell shaped tensile testspecimen and VEKA thermal deformation sample. This machine adopts profiling machining principle, and combined with mechanical transmission principle of screw rotary motion into linear motion, is simple, rapid, convenient and a standard sample, size stability and other characteristics. The machine is equipped with a vacuum cleaner on the working table, which provides a good working environment for the staff. It is an ideal matching product of the electronic tensile testing machine and VEKA thermal deformation testing machine.
Main function:
Mainly suitable for the production of a variety of non-metallic pipe or plate of the dumbbell shaped tensile test specimen and VEKA thermal deformation of the specimen.
Main features:
1: sample preparation without repeatedly adjusting, improve work efficiency
2: the shape and size of the system is controlled by the device, which can avoid the difference between different people.
3: equipped with a vacuum cleaner, to ensure the process of the preparation of the environment clean
4: the sample cutting surface smooth without burrs, avoid the machining defects on the tensile test results of impact
Meet standards:
1, 8804.2-2003 GB/T "thermoplastic pipe - tensile properties were measured in second parts: PVC (U), (PVC), (C) and high resistance (H1 - PVC) pipe" in the dumbbell type specimen (type 2)
2, 8804.3-2003 GB/T "hot plastic pipe - Tensile Properties of third parts: Polyolefin Pipe" in the provision of dumbbell type specimen (type 1, type 2)
3, GB/T1040-2006 "plastic tensile test method" in the dumbbell type specimen (type 5, type 2, 1B type)
4, GB / T 8802, Vicat specimens specified 1633-2000 GB / T; and the specimen length is less than or equal to 170 mm, width of 16 ~ 30mm, less than or equal to 3 mm thickness is equal to or less than 25mm strip specimen.
Application industry:
Measurement of quality inspection; rubber plastics; civil aviation; high school; Scientific Research Institute; commodity inspection arbitration, technical supervision department; building materials ceramics; petrochemical industry.
Original configuration:
A tool, I type A fixture and a B type of profiling, fixture and profiling a type II, a set of fixture and profiling
Scalable configuration:
Type III profiling a (shared fixture clamp and B type I shared), P2 type profiling (meet GB/T16865-1997 in P2 type specimen preparation, the clamp and I B type fixture)
Technical parameters:
1 maximum thickness: 25mm
2 dimensions: long x x x x x x 450mm x 450mm x =500mm
3 motor speed: n=1440r/min
4 tool diameter: 25mm
5 power supply voltage: 220V 10% 50Hz 5A
6 host weight: About 70kg
Note: according to the requirements of the contract profiling and fixture selection

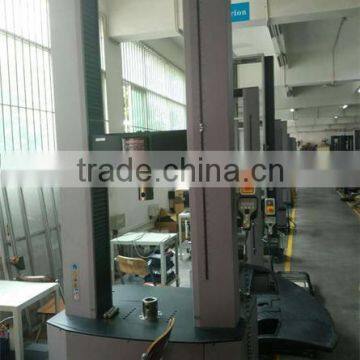

A corner of workshop
