thermoforming machinery heat transfer printing machine plastic containers
1.This machine has a beautiful elegant appearance, and mainly used for Premium Toy,stationery,wood,premium makeup and commodity surface of decoration.
2.It special for such as: plastic cups, cosmetic bottles, glass bottles, bottle heat transfer.
thermoforming machinery heat transfer printing machine plastic containers
Item |
Specification |
Qty |
Unit Price |
|
TC-200R Flat/cylinder Heat Transfer Machine |
1.(Plane)Max Printing:250*300mm 2.(Cylinder)Max Printing:200mm 3. Length of Rubber Roller: 150mm 4. Working table area: 600 x 200 mm 5.Max pressure:1300 Kg 6.Up-and down distance: 80 mm 7.Table Stroke : 300 mm 8.Heat wattage: 1600 W 9.Foil feed: Motor Drive 10.Temperature range:0 - 400oC 11.Net Weight :295 Kg 12. Outer dimension:1100 x 850 x 1700 mm . 13. Max Oil Pressure: 70kgf/cm2' 14.Wattage:220V 50Hz 15.Air Pressure:0.5-0.7MPa 16.Speed:500-1000P/hour |
1set |
$4900-5500 |
Main Parts:FESTO CYLINDER & HEATING | |||
|
Remark: 1.Price Term: EXW Dongguan, China. 2. Payment Term: 100% T/T in advance.(negotiate) 3. Loading time: 7 days after deposit 4. Package: machine wrapped with PVC film, package in wooden case. | |||
Features:
1.Computer controller, ensure reliable machine operation.
2. Using Omron temperature controller to ensure that heating temperature stability, and ensure stamping quality.
3. Toggle mechanism design, low consumption of compressed air, pressure strong.
4. Stamping pressure, temperature, hot pressing time is adjustable.
5. Table automatically before and after the move, easy to operate safely and quickly.
6.Table 6 can be front, left, rotate the adjustment.
7. Automatic document feeder, the collection of paper, and adjustable.
8. Installation of photocell (electric eye) with the contacts after the transfer paper on the track in place control.
9. Stamping head height adjustable lift, a larger work can be stamping.
10. with security guards to protect the operator's safety.
thermoforming machinery heat transfer printing machine plastic containers

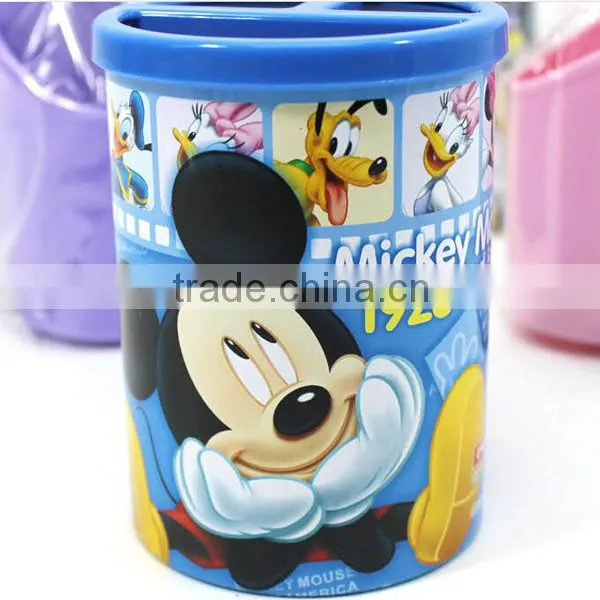

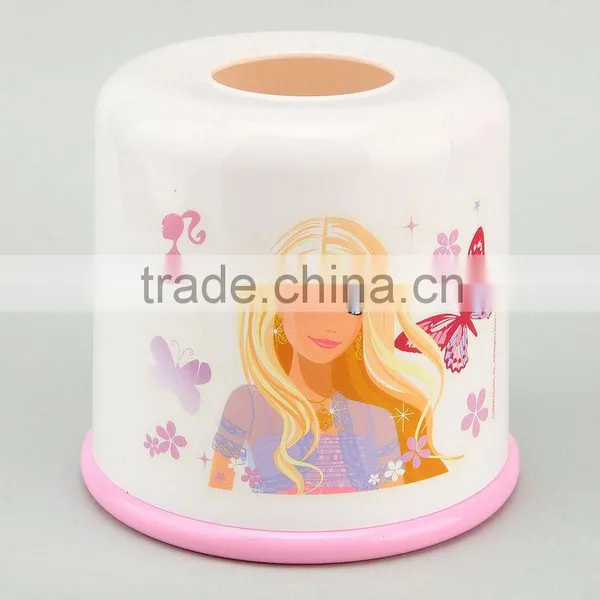

thermoforming machinery heat transfer printing machine plastic containers transfer samples:
Shipping way |
By sea, by air, by express |
Delivery time |
Within 7 days from the receipt of payment |
Loading seaport |
Shenzhen or Hong Kong, China |
Luen Cheong Printing Equipment Limited is specializing in manufacturing LC brands including luding :various pad printer, silk screen printer, hot foil stamping machine, UV Curing machines & cliche making machine for 25 years.
The other hot sale items:
Top 1:LC-6090P precision advertisement screen printing machine
top 2: desktop UV curing machine
2. Q:Can you send me the video to show how the machine works?
A:certainly,we have made video of every machine and uploaded them to Youtube.
3. Q:How can I know your machine works well?
A:Before delivery,we shall test the machine working condition for you.
4. Q:How can I know your machine is designed for my product?
A:You can send us samples of your product and we test it on machine.
