Large Format Bucket Heat Transfer Machine for Pails and Bottles Transfer Printing

Large Format Bucket Heat Transfer Machine for Pails and Bottles Transfer Printing photo-1
Large Format Bucket Heat Transfer Machine for Pails and Bottles Transfer Printing photo-2
Large Format Bucket Heat Transfer Machine for Pails and Bottles Transfer Printing photo-3
Large Format Bucket Heat Transfer Machine for Pails and Bottles Transfer Printing photo-4
Large Format Bucket Heat Transfer Machine for Pails and Bottles Transfer Printing photo-5
Large Format Bucket Heat Transfer Machine for Pails and Bottles Transfer Printing photo-6
US$ 4,500 - 6,600 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Plate Type:
Other, heat transfer machine
Place of Origin:
Guangdong, China
Payment & Shipping
Payment Methods:
Port of Shipment:
FOB Shenzhen China
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Plate Type Other, heat transfer machine
Place of Origin Guangdong, China
Brand Name LC
Model Number LC-TC-350R
Usage Card Printer, Cloths Printer, Label Printer, Paper Printer, Tube Printer
Automatic Grade Semi-Automatic
Voltage 220 V/ 50Hz
Gross Power 2000W
Dimensions(L*W*H) 1400 * 1000 * 1900mm
Weight 500KG
Certification CE Certificate
After-sales Service Provided Engineers available to service machinery overseas

Large format bucket heat transfer machine for pails and bottles transfer printing

Product Description

Large format bucket heat transfer machine for pails and bottles transfer printing

The features of the buckets heat transfer machine:

1 .An electronic controller IC integrated multifunction procedures to ensure that the machine to flat stamping , roll stamping , flat stamping and round surface, such as a multi-purpose pressure round running.

2 .Gilding press elbow mechanism design, strong steady pressure of 250kgf, under hydraulic pressure, up to 1 ton.

3 .Stamping pressure, temperature, hot pressing time is adjustable.

4 .operating panel with emergency stop device, easy to operate ,safe and fast.

5 .the fixtures rotation speed pressure is adjustable,the time is adjustable .

6 .automatic collection feeding  is adjustable. Taiwan motor, can be customized for the two-speed winders cover a bit more precise, go within membrane accuracy 0.5mm.

7 .installation photocell (Taiwan's Yangming electric eye, 250 times per second high-precision motion) to locate the point of thermal transfer paper with precise tracking control.

8 .lifting stamping head height adjustable, stamping 300MM larger workpieces. Taiwan gold solenoid valve precise control, the German NASS coil stable and durable. All screws are made of 12.9, more stable and more durable.

9 .with emergency stop safety devices to protect the safety of the operator.

The technical parameters of the heat transfer machine:



1.Max stamping diameter: L 280* φ300mm



2.Heating power(can be customize): 2000W



3.hot head outer diameter 100mm /inner diameter of 30mm



4.Stamping temperature range of options: room temperature reach 280 degrees Celsius



5.Stamping time :0-99 seconds



6.Stamping pressure range of options: ≤250kgf -100kgf (7bar)



7.Stamping speed: 120pcs / hr



8.Power: 220 V/ 50Hz



9.Machine weight:500KG



10.Dimensions: 1400 × 1000 × 1900mm

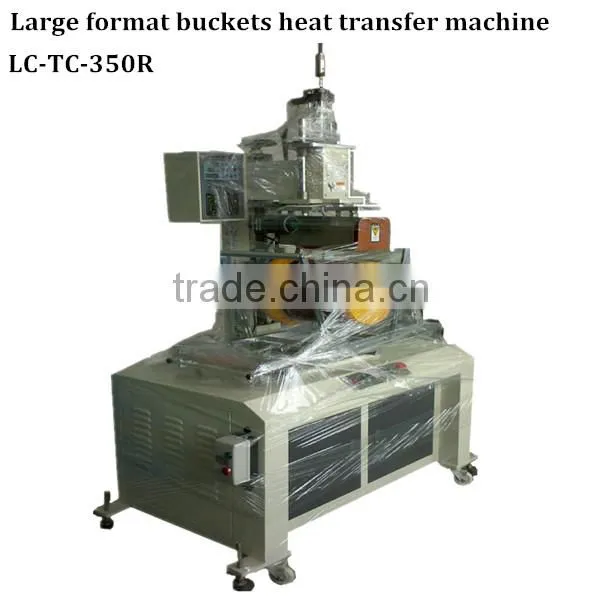

The pictures  of the Large format bucket heat transfer machine for pails and bottles transfer printing :

Large format bucket heat transfer machine for pails and bottles transfer printingLarge format bucket heat transfer machine for pails and bottles transfer printing

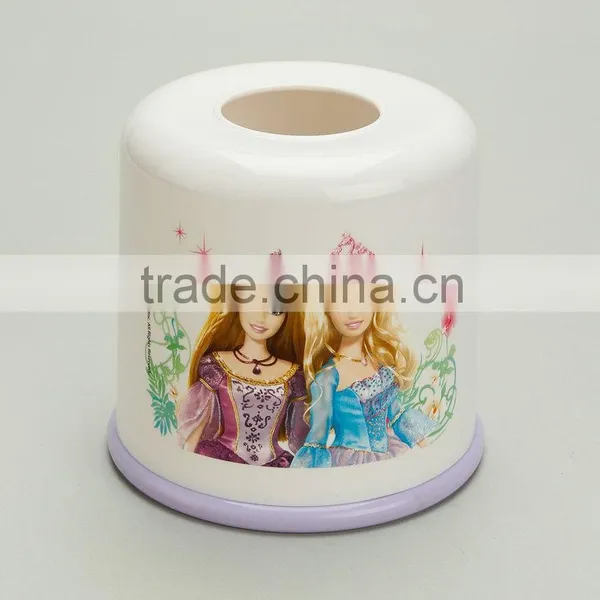

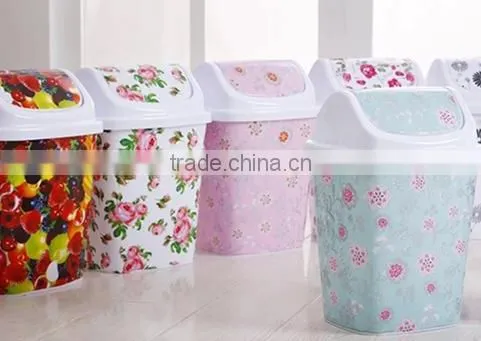

Samples

The samples of Large format bucket heat transfer machine for pails and bottles transfer printing :

Large format bucket heat transfer machine for pails and bottles transfer printing



Large format bucket heat transfer machine for pails and bottles transfer printingLarge format bucket heat transfer machine for pails and bottles transfer printingLarge format bucket heat transfer machine for pails and bottles transfer printing

Our Services

Large size bucket heat transfer machine 20L paint bucket heat transfer machine

 16 hours online services

8:00 am--12:00pm (Monday- Saturday)

24 hours phone call services  (Monday- Sunday)

In order to benefit good rights and interests for our customers, we have done the testing strictly before the machine exports; try to provide the best after-sales service for our customers.

Company Purpose: The best quality, leading technology, and provide the best product and service for our customers

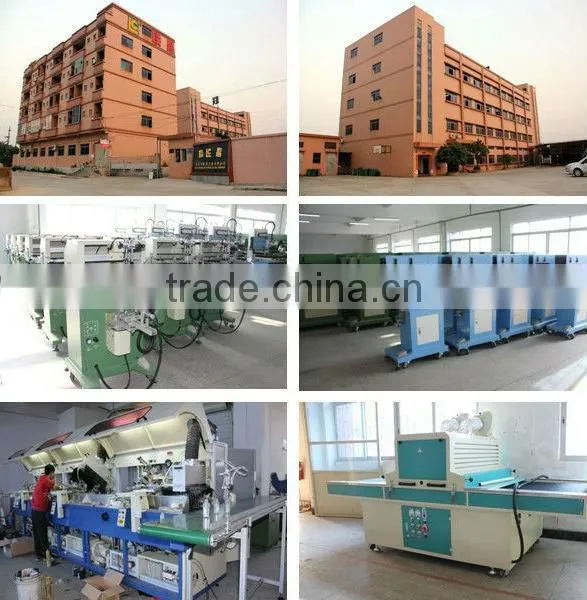

Company Information



Luen Cheong Printing Equipment Group Ltd. established in 1991,which is professional in develop, manufacture and sales the Screen printer, Pad printer, Hot stamping machine, Heat transfer machine, Peripheral Equipment &Accessory. With the long time experience in manufacture special printing equipment, we are focus on making the good quality printing equipment and whole solution service for domestic and aboard.

In order to benefit good rights and interests for our customers, we have done the testing strictly before the machine exports; try to provide the best after-sales service for our customers.

Company Purpose: The best quality, leading technology, and provide the best product and service for our customers.

Large format bucket heat transfer machine for pails and bottles transfer printing

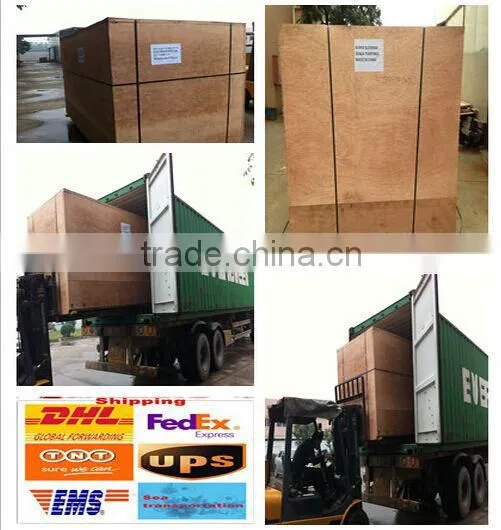

Packaging & Shipping

The details of the hear transfer machine:

Large format bucket heat transfer machine for pails and bottles transfer printing

Related Products

The other hot sale items:

Top 1:LC-6090P precision advertisement screen printing machine



top 2: desktop UV curing machine





FAQ
1. Q:Are you a factory or a trading company?
    A:we are factory manufacture of printing machine and we provide perfect OEM and after-     sale service.
2. Q:Can you send me the video to show how the machine works?
    A:certainly,we have made video of every machine and uploaded them to Youtube.
3. Q:How can I know your machine works well?
    A:Before delivery,we shall test the machine working condition for you.
4. Q:How can I know your machine is designed for my product?
    A:You can send us samples of your product and we test it on machine.
5. Q: Who is this ? How to contact us?
    A:This is Kathy Xu,an honest and sincere person from LC

          Large format bucket heat transfer machine for pails and bottles transfer printing
