Rubber and Plastic Melt Flow Rate Testing Machine
Equipment overview:
Melt flow rate test machine (also known as the melt index instrument) is a special instrument for measuring the flow rate of the melt under certain conditions. The melt flow rate (melt index) of the thermoplastic plastic refers to the quality of the plastic at a certain temperature and load, and the melt volume of each 10 minutes, which is expressed by MFR (MI) or MVR value. The quality assurance of the raw materials, products and other products of the thermoplastic and chemical fiber is of great significance. The machine has high temperature, high precision, high strength, high hardness and low deformation, which provides a good condition for the accurate determination of flow rate. This product is mainly used in the production, inspection, development, research and other fields of the factory, product quality inspection institute, scientific research institutions and other units.
Main function:
Mainly for the determination of the melt mass flow rate and the melt volume flow rate of the thermo plastic.
Main features:
1: the main frame adopts split sheet metal processing, convenient assembly and disassembly, surface spray treatment, neat and beautiful.
2: material cylinder and piston rod and other key parts are made of high temperature resistant, low expansion coefficient alloy material, and the special surface heat treatment, in high temperature situation is not easy to deformation, and the hardness is high, not easy to wear, can be used for a long time.
3: the use of non-contact high precision lever type light even to the displacement measurement device, as the lever type light even mass balance, and no spring and other device, so the measurement of displacement will not bring other effects, effectively prevent the test error.
4: with the automatic cutting device driven by the micro motor, it can set the cutting time, the rotating motor will be set in accordance with the cutting time and cutting time, time control is accurate, the error is small. At the same time cutting device can be manually driven. Simple and convenient operation.
5: equipped with a special for the welding machine development of the microcomputer controller, can carry out the whole process of testing process control, data processing, data printing, etc., can be equipped with a micro printer to print out the test results.
Meet standards:
1, 1133:1997 ISO Determination of the melt mass MFR and flow (rate) the melt volume flow (rate) thermoplastics of (MVR) Plastics
2, 3682-2000 GB/T "plastic melt flow rate and melt volume flow rate of the determination of flow rate"
3, JB/T5456-1991 "melt flow rate instrument technology conditions"
4, 878-1994 JJG "melt flow rate meter"
Application industry:
Measurement and quality control; rubber plastics; high school; Scientific Research Institute; commodity inspection arbitration, technical supervision department; petrochemical industry.
Original configuration:
2.095 + 0.005mm die a 5kg; the weight of a
Scalable configuration:
1.180 + 0.010mm die; non standard weight allocation, the maximum can be added to 21.6kg
Technical parameters:
1 temperature control
100) range: 1 ~ 450
2) temperature error: 0.5
3): 0.5
4: 4h) drift is not higher than 0.5 deg
5) the temperature distribution is less than or equal to 0.5 DEG C:
6) resolution: 0.1
Barrel temperature recovery time after feeding 2: less than 4min
3 time clock
1) range: 0 ~ 6000s;
2) resolution: 0.1s
4 cutting device
1) automatic timing cutting (2 ~ 1000s), arbitrary cutting.
2) with the point of cutting, manual cutting function
5 die diameter: 2.095 mm in diameter and 0.005mm
6 cylinder diameter: 9.550 mm in diameter and 0.025mm
7 load:
1) accuracy: less than 0.5%
8 national standard sample (PE) test:
1) repeatability is less than or equal to 2%
2) accuracy: less than 5%
9 determination range: 0.1 ~ 100g/10min
10 source: AC single phase 220 + 10% 3A 50Hz
11 dimensions: long x x x x x x 730mm x 430mm x =550mm
12 host weight: About 65kg

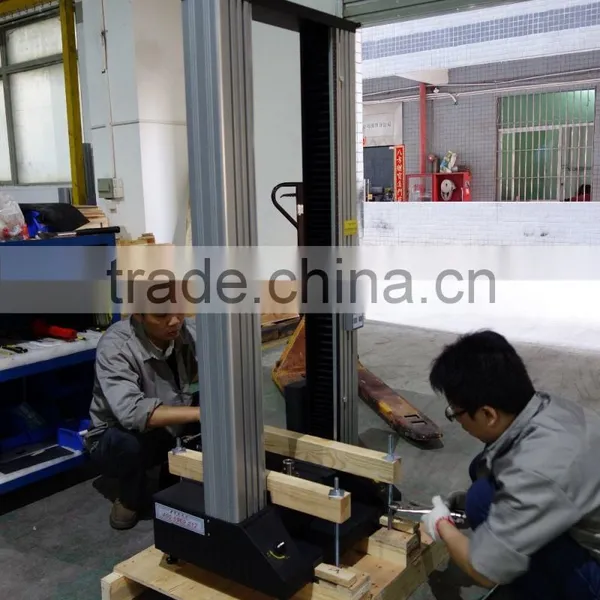

A corner of workshop
Mobile: +8615866073062
Skype: betty_3541
Tel: +86 537 3167400 Fax: +86 537 3165401
Shandong banner international trade Co.,Ltd
Web:
www.bannerglobal.en.china.cn
1> Inner package: dust-proof plastic bag
2> Outer package: standard export wooden case with pallet
3> Special package: according to buyer's requirements
4> The packages suitable for international transport by sea, by air or any other delivery methods
5> Shipping by sea with CFS/CFS from Qingdao sea port or for your requirement.
1. Pre-service
24 Hours online service for your consult.
Help choose right model,and a series of service,person,advise.
2. Middle service
--Give you best offer
--Provide discount for many sets order
--Do customer's request:
--Choose payment term you convienent.
--Promptly production and delivery,inform you in time.
--Can provide invoice value as you like to decrease your tax.
3. After sale service
--1 year warranty service and all life maintenance.
--Technical Egineer are avalible for oversea trainning.
--Free change for some parts
--Remote control technical consult
--Free installation DVD
--Maintenance plan
4,Commitment:
We will sign a letter of commitment while we sign the contract, which will improve your confidence to us.
5,Good Packaging:
Good Packaging: Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.
