2016 Labsans electronic ring stiffness testing machine
- 1000 Set / Sets per Month
- Shenzhen
- T/T Credit Card PayPal
Product Details
Place of Origin: | Guangdong, China | Brand Name: | Labsans | Model Number: | LD69.504 |
Power: | Electronic | Usage: | Hardness Tester |
Product Description

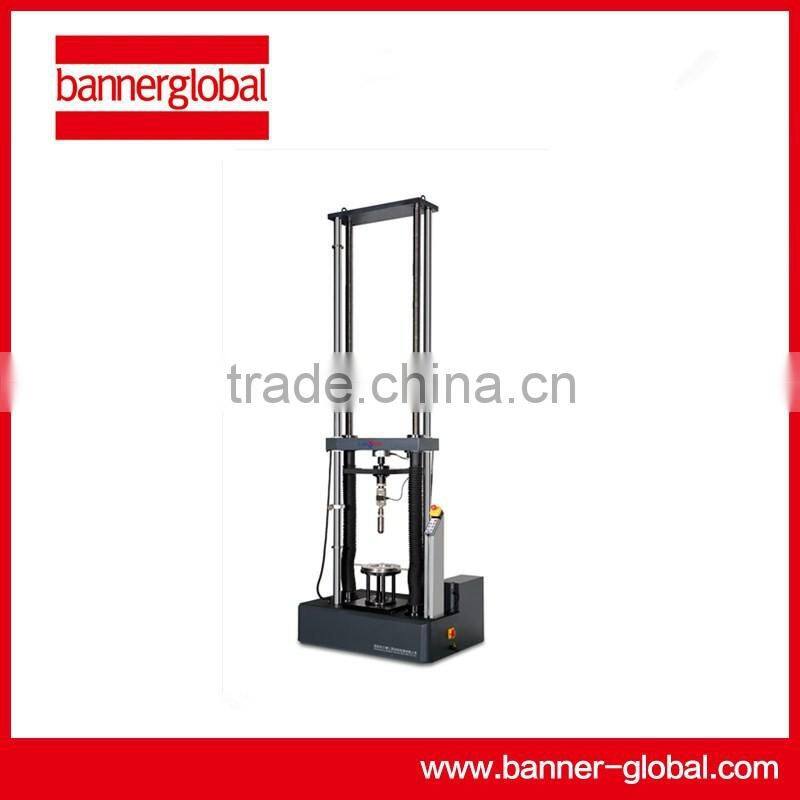

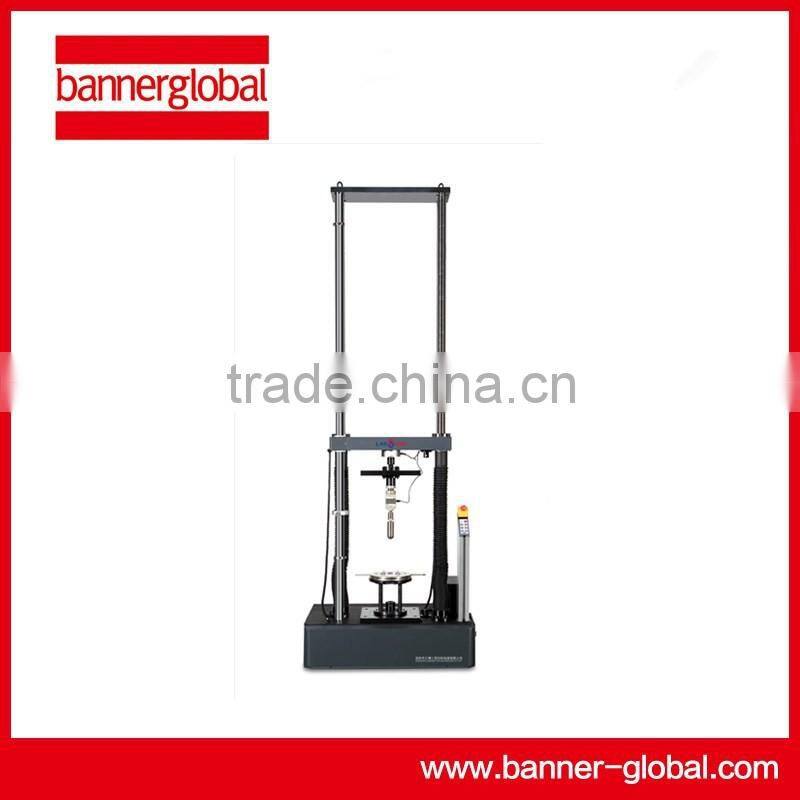

2016 Labsans electronic ring stiffness testing machine
Equipment overview:
microcomputer control electronic loop stiffness testing machine is a new type of material testing machine which is electronic technology and mechanical transmission. It has a wide range of loading speed and measuring range. It has high accuracy and sensitivity. It can also be controlled by constant velocity and constant velocity.
Main function:
The series models are mainly suitable for the test of the stiffness of the pipe ring, and meet a series of relevant test standards. Can be equipped with electronic universal testing machine fixture, electronic universal testing machine related functions.
Main features:
1: the use of high-speed DSP platform, its high integration, powerful control, data processing ability, high reliability, is the use of other processors can not match the test machine.
2: the full digital, three closed-loop (force, deformation, displacement) control system based on neuron adaptive PID algorithm, the realization of force, deformation, displacement of the whole digital three closed-loop control, the control loop can be automatically switched, and the switch between the different ways to achieve smooth transition.
3: can carry out the test force, deformation, displacement and other rate control and maintain.
4: closed loop control parameters on-line identification.
5: high precision 24Bit data acquisition system, high resolution, can be extended to 8 AD acquisition.
USB1.1 6: communication, communication rate is 12Mb/s, the use of full speed mode, bulk transfer mode.
7: system board uses 4 layers of PCB unique anti interference routing method, strong anti-interference ability.
8: in addition to the power interface, the other interfaces are the standard USB type interface, plug and play interface such interface can be used to achieve hot swap, that is, plug and play function. Interface features can be set up by software online. The interface neat layout reasonable, convenient plug.
9: the whole control system has a very high cost, high reliability.
10: the whole test process is controlled by microcomputer, and the load value, displacement, deformation, test speed and test curve are displayed in real time.
11: uses microcomputer for data processing and analysis. The test results can be saved automatically. After the end of the experiment, the test curve can be re - up.
12: full Chinese Windows platform under the test software, with a strong data and graphics processing functions, can print out the complete test report and test curve.
13: have the perfect protection, overload protection, emergency stop and other safety protection function.
Meet standards:
Standard: electronic universal testing machine 16491-1996 GB/T;
Meet the test method standards: GB/T9647-2003 "thermal plastic pipe ring stiffness measurement
GB/T19472.1-2004 "buried polyethylene (PE) pipe wall structure system in first parts: Polyethylene double wall corrugated pipes"
GB/T19472.2-2004 "buried polyethylene (PE) pipe wall structure system in second parts: Polyethylene double wall corrugated pipes"
GB/T18477-2001 "PVC-U" GB/T16800-1997 "" "double wall corrugated pipe with hard PVC (PVC-U)"
Application industry:
Measurement of quality inspection, rubber, metallurgy, steel, machinery, electrical appliances, automobile, textile, chemical fiber, wire and cable, packaging materials and food.
Original configuration:
1 sets of special compression device with ring rigidity, 1 sets of measuring device of ring rigidity (inner diameter measuring range: 250mm-2000mm).
Scalable configuration:
Electronic extensometer, can according to customers to provide the test standard or test sample fixture or a specially designed fixture and accessories, charge is other plan.
Model | LD69.304 , LD69.105 | |
Measurement parameters | Maximum test force | 30kN,100kN |
Test machine level | 1 | |
|
| |
Relative error of test force | ±1.0% | |
Test force resolution | 1/350000FS | |
Inner diameter measuring range | 250-2000mm | |
Inner diameter to discuss accuracy | 0.01mm | |
Outer diameter measuring range | 300-2500mm | |
Beam effective stroke | 400-2500mm | |
Deformation measurement range | 0.2~100%FS | |
Number of parameters | Relative error of deformation | ±0.50% |
Deformation resolution | 1/300000 FS | |
Relative error of displacement of beam | ±0.50% | |
Displacement resolution | 0.06μm | |
Deformation rate adjustment range | 0.005~5%FS/S | |
Deformation rate control precision | Rate<0.05%FS,Set value±2%Set value; Rate≥0.05%FS,Set value±0.5% | |
Displacement speed regulation range | 0.001~500mm/min | |
Displacement rate control precision | Rate<0.01 mm/min,Set value±1.0%; Rate≥0.01 mm/min,Set value±0.2%; | |
Constant, constant deformation, constant displacement control | 0.5%~100%FS | |
Effective test width | 600mm | |
Other | Host size | 920mm×830mm×3225mm(RST1304)/ 1200mm×850mm×3230mm(RST1105) |
|
| |
Host weight | 1100kg(RST1304)/2500kg(RST1105) |
Packaging: packed with export standard wooden box.
Delivery Detail: One month
