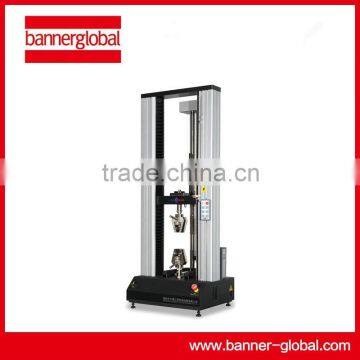

LABSANS Universal Test Systems
LD22 systems feature a complete selection of universal test systems for meeting a wide range of monotonic production testing requirements. Highly reliable and easy-to-operate, these test systems employ high-speed, low vibration MTS electromechanical drives and integrated, digital closed-loop controls to test in load and position control at force capacities ranging from 5 N to 100 kN. Series 40 systems are available in avariety of compact, high stiffness 1- and 2-column table-top configurations for low to medium force testing, or robust 2-column floor-standing configurations for medium to high force testing. Easy-to-use software, a large and growing library of standards-compliant test templates, and a full complement of accessories extend the utility of these systems across a very broad spectrum of materials, including:
Specification Model |
LD22 |
|
Maximum rated load |
kN lbf |
100 22500 |
Load option |
N,kN |
1kN,2.5kN,5kN,10kN,20kN,30kN,50kN,100kN |
|
lbf |
220,500,1100,2200,4400,6600,11000,22500 |
Frame type |
Guide column landing type / table |
2 Guide column landing type |
Experimental space |
Single/Double |
Single/Double |
Maximum test speed |
mm/min In/min |
750 29.5 |
Minimum test speed |
mm/min In/min |
0.005 0.0002 |
Displacement resolution |
mm in |
0.000047 0.0000019 |
Maximum displacement resolution maximum length |
mm in |
1000 39.37 |
|
Phase number |
1 |
Distance between columns |
mm in |
600 23.62 |
Standard length |
mm in |
1000 39.37 |
Extended length |
mm in |
1300 51.2 |
Frame height |
|
|
Standard length |
mm in |
2265 89.2 |
Stretch length |
mm in |
2565 101 |
Frame width |
mm in |
1316 51.8 |
Frame depth |
mm in |
957 37.7 |
Frame weight |
|
|
Standard length |
kg Lb |
1350 2970 |
Stretch length |
kg Lb |
1380 3036 |
