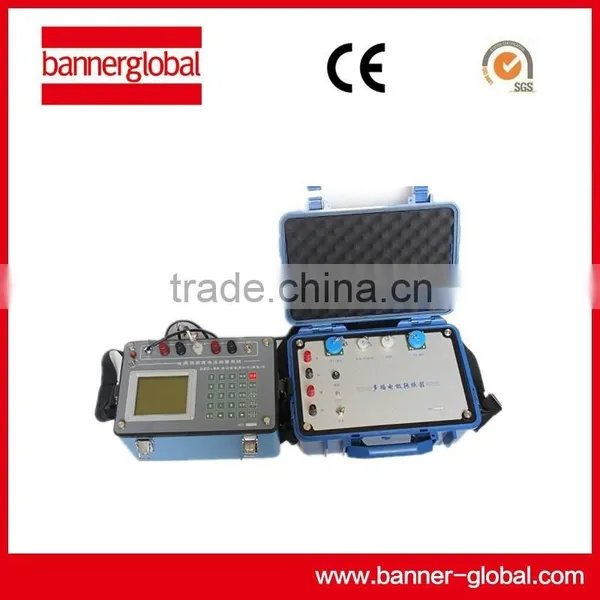

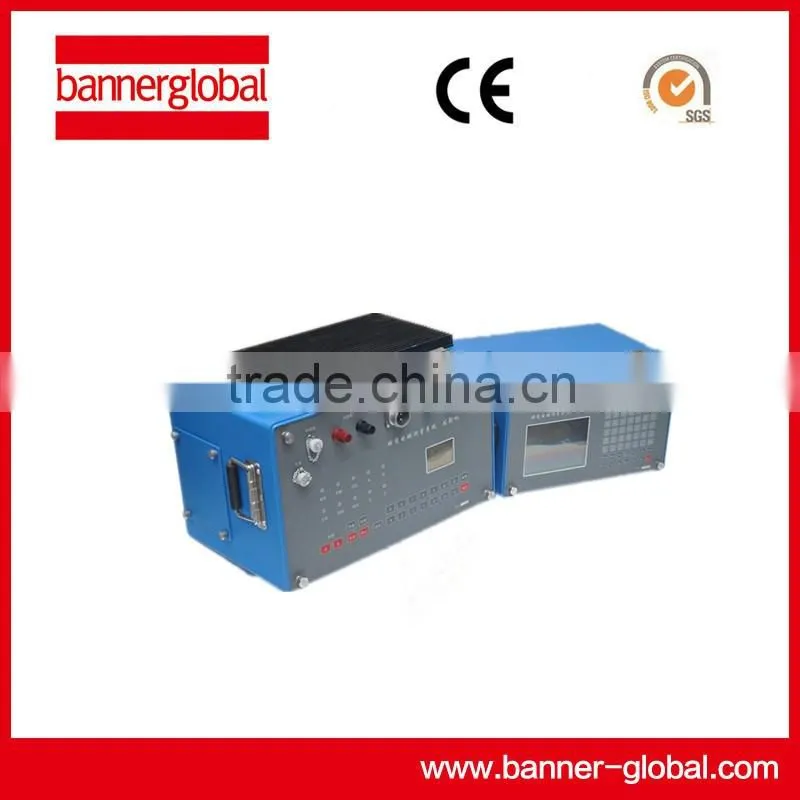

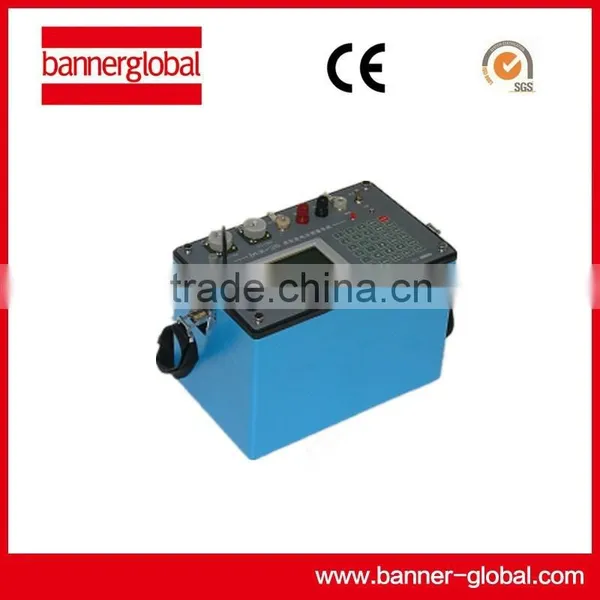

China Best DUK-2B Multi-Electrode Resistivity Survey System
Features and Functions
l Integrated the mainframe and multiplex electrode converter
of the DUK-2A Multi-Electrode Resistivity Survey System
l Maintained all function of DUK-2A Multi-Electrode
Resistivity Survey System.
l Add high and low current transform taps, add high and
low input impedance transformation tap, and improve
the acquisition capability of weak signals.
System Components
DUK-2A host, large cable, electrode,
data processing software and other related accessories
Main Technical Specifications
Voltage Measuring Range |
±6V |
Voltage Measuring Accuracy |
±1%±1 digit |
Current Measuring Range |
0~2000mA, 0~5000mA (two taps) |
Maximum Power Supply Voltage |
500V(high density mode) 900V(common electric mode) |
Maximum Power Supply Current |
2A(high density mode) 5A(common electric mode) |
SP Compensation Range |
±1000mV |
Input Impedance |
20 MΩ, 100 MΩ (two taps) |
Suppression on 50Hz Power Frequency |
better than 80dB |
Working Temperature |
-10℃~ +50℃, 93%Rh |
Volume |
324×240×245mm |
Weight |
8.5 kg |
Voltage Measuring Range |
±6V |
