Home > Products > Geological Instrument > High Density Measurement System DZD-6A Multi-Function DC Resistivity & IP Instruments
High Density Measurement System DZD-6A Multi-Function DC Resistivity & IP Instruments
- 100 Set / Sets per Month
- qingdao
- T/T Credit Card PayPal
Product Details
Place of Origin: | Chongqing, China | Brand Name: | BN | Model Number: | DZD-6A |
Power: | Electronic | Usage: | Auto Testing Machine |
Product Description

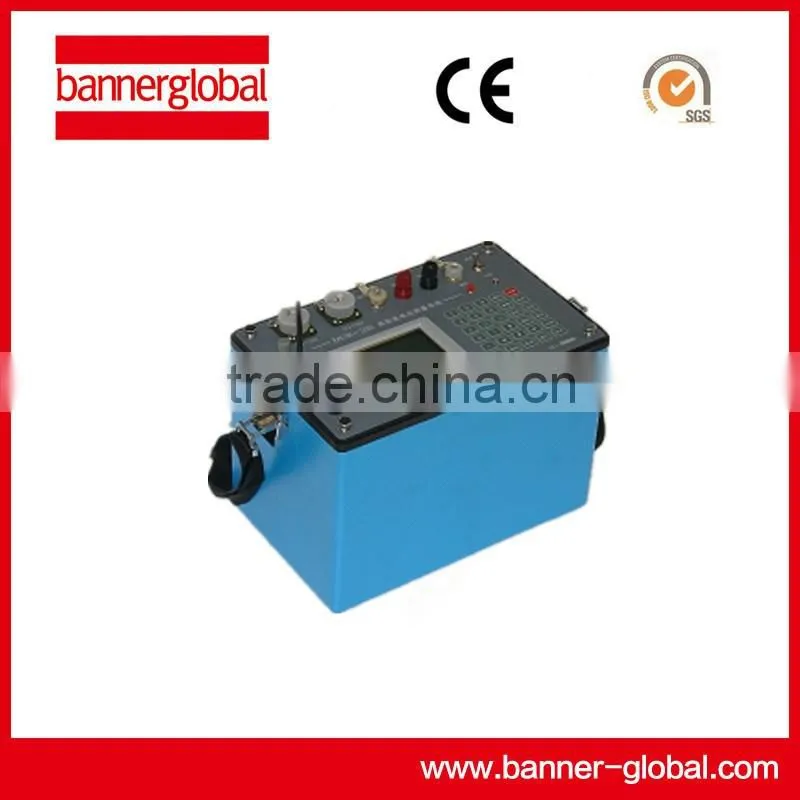

High Density Measurement System DZD-6A Multi-Function DC Resistivity & IP Instruments
Main Application:
By utilizing relevant parameters of apparent resistivity
and induced polarization method, the instrument is widely
used in many aspects including metal and non-metal
mineral resources exploration, energy exploration,
city geophysical exploration, railway and bridge
engineering exploration, etc.
Features and Functions
l Multiple functions in one Machine: not only can be used alone, but also support various functional extensions;
l High Density Measurement System: connect DUK-2A multichannel electrode converter (60 channels or 120 channels);
l In-hole IP Measurement: connect JD-3 in-hole IP probe
l Medium power DC IP Measurement system connect DJS-9 direct current IP receiver
Main Technical Specifications
Measuring Voltage Range | -6000mV~+6000mV |
Measuring Current Range | 0~5000mA |
Measuring Voltage Accuracy | ±1% ±1digital |
SP Compensation Range | ±1000mV |
Input impedance | ≥50MΩ |
Interference Suppression on 50Hz Power Frequency) | Better than 80dB |
Maximum Power Supply Voltage | 900V |
Maximum Power Supply Current | 5A |
Power Pulse Width | 1-59 seconds, Duty Cycle 1:1 |
Working Temperature | -10℃ to +50℃, 95%Rh |
Volume | 305×200×202 mm |
Weight | 8 kg |
A corner of workshop
Mobile: +8615866073062
Skype: betty_3541
Tel: +86 537 3167400 Fax: +86 537 3165401
Shandong banner international trade Co.,Ltd
Web:
www.bannerglobal.en.china.cn
1> Inner package: dust-proof plastic bag
2> Outer package: standard export wooden case with pallet
3> Special package: according to buyer's requirements
4> The packages suitable for international transport by sea, by air or any other delivery methods
5> Shipping by sea with CFS/CFS from Qingdao sea port or for your requirement.
