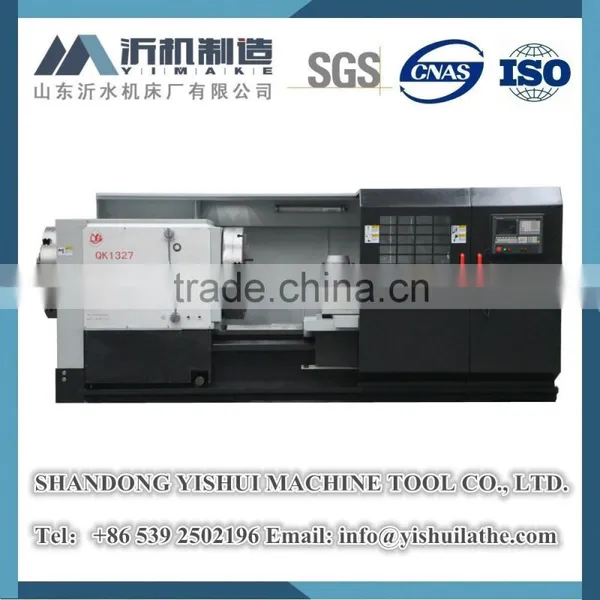

QK1327 Heavy Duty Oil Pipe Lathe

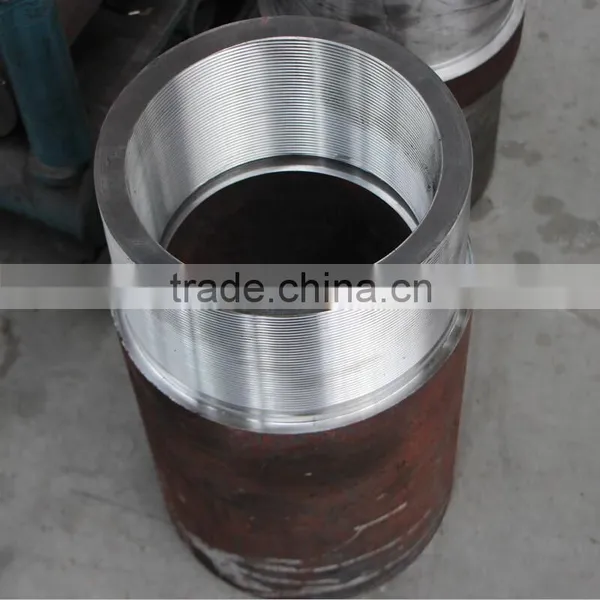

YIMAKE QK1327 CNC Heavy Duty Oil Pipe threading lathe machine is mainly designed to process all kinds of internal and external pipe threads including metric,inch,module,DP and taper threads,as well as having all the common functions of normal CNC lathe such as processing the inner bore and end face of shafts and disks.
This series lathe machine is widely used in industries including petroleum exploiting,coal and minerals mining,chemical piping and geological prospecting,it is high-efficiency equipment in processing and repairing drilling pipe,drilling rod,thread coupling and so on.
Main Features:
Big spindle bore and double chuck allows clamp and process big diameter pipes;
Integral machine bed adopts high strength iron to relize high rigidity and precision;
Ultrasonic frequency quenched guide-ways are hard enough for good wear-resistance;
Carriage and guide way contact surface pasted with Turcite B to maintain long-term accuracy.
Detailed Specifications:
SPECIFICATION OF YIMAKE LATHE MACHINE | |||
ITEMS |
UNIT |
QK1327 Pipe Lathe |
|
Capacity |
Swing over bed |
mm |
Φ1000 |
Swing over cross slide |
mm |
Φ610 |
|
Distance between centers |
mm |
1500 |
|
Pipe threading range |
mm |
Φ130-270 |
|
Width of bed way |
mm |
755 |
|
Max.load capacity |
T |
5 |
|
Spindle |
Spindle bore |
mm |
Φ280 |
Spindle speed steps |
- |
Step-less |
|
Spindle speed range |
rpm |
0-450 |
|
Chuck size |
mm |
Φ800 |
|
Chuck type |
- |
4-jaw manual |
|
Turret |
Turret type |
- |
NC turret 4 position |
Tool shank size |
mm |
40x40 |
|
Carriage |
X axis travel |
mm |
500 |
Z axis travel |
mm |
1250 |
|
X axis rapid traverse speed |
mm/min |
4000 |
|
Z axis rapid traverse speed |
mm/min |
4000 |
|
Tailstock |
Tailstock quill diameter |
mm |
Φ140 |
Tailstock quill taper |
- |
MT#6 |
|
Tailstock quill travel |
mm |
300 |
|
Motors |
Main spindle motor |
kW |
Servo 22 |
Coolant pump motor |
kW |
0.125 |
|
Accuracy |
Positioning accuracy |
mm |
0.020 |
Repositioning accuracy |
mm |
0.010 |
|
Dimensions |
Width x Height |
mm |
2200x2150 |
Length |
mm |
4800 |
|
Weight |
Net weight |
T |
10.0 |
Standard Accessories:
Fanuc CNCsystem,NC turret 4 position,Coolant system,Lubrication system,Lighting system,Mobile
hand-wheel,Semi-shield,Manual tailstock,Chuck,Rear support bracket, Pad iron etc.
Optional Accessories:
CNC system(Simens,Fagor,GSK,KND),Turret(Servo,hydraulic,power),Chip conveyor,Air conditioner,Full-shield,Hydraulic tailstock,Chuck,Center rest,Follower rest,Signal light,Grinding attachment etc.
Customizing support:
Painting color,headstock height,lathe bed length etc.
Standard package:
Plywood packing box with steel pallet and iron framework.
