Welded Stainless Steel Pipes

Name: Welded Stainless Steel Pipes
Brand: MTSCOMAXTECH
SKU: 108978043
Availability: InStock

US$ 2 - 6 MOQ: 1 Ton

Key Specifications

Standard:

ASTM, AISI, DIN, EN, JIS

Place of Origin:

Zhejiang, China

Brand Name:

MTSCOMAXTECH

Jiaxing MT Stainless Steel Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Standard ASTM, AISI, DIN, EN, JIS

Place of Origin Zhejiang, China

Brand Name MTSCOMAXTECH

Model Number Welded pipes

Type Welded

Steel Grade 300 Series

Application For Fluid&Gas transport; Structure&Machining etc

Certification ISO

Welding Line Type ERW

Thickness 0.01"-1.125"(0.25mm-28mm)

Outer Diameter 0.23"-80"(5.8mm-2032mm)

Specifications

1. Welded stainless steel pipes
2. Pickling and Annealing
3. ASTM, AISI, EN standards
4. Suitable for heat exchanger

Welded stainless steel pipes

As one of the leading manufacturer in stainless steel industry, welded stainless steel pipes are our competitive products.

We have the most advanced producing and testing equipments, also have the biggest production scale.

And we are specialized in 300 series products. Like 304, 304L, 316, 316L etc.

We have PED, ISO certificates. PED NO: CN.CE.1110-10/12 , ISO9001 NO: DGA-ZM-58-95-00

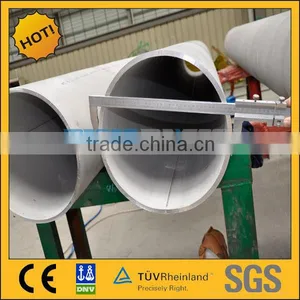

Pictures of products:

Welded pipe
Pickling & Annealing
Project	Standard	ASTM A269/A269M			ASTM A312/A312M		ASTM A789/789M			ASTM A790/790M
Grade		TP304 TP304L TP321 TP316 TP316L TP317 TP347 N08904			TP304 TP304L TP309S TP310S TP316 TP316L TP316Ti TP317 TP317L TP321 TP347		S31803 S32750			S31803 S32750
Size		NPS:1/8”-48” SCH:5S,10/10S,20,30,40/40S,60,80/80S,100,120,140,160,STD,XS,XXS OD:0.23”-48”(5.8mm-1219mm) WT:0.01”-1.125”(0.25mm-28mm)
Length		According to customer’s request
Chemical composition(According to the standard)
Eg. TP309S(ASTM)/1.4833(DIN)
		C max	Si max	Mn max		P max		S max	Cr	Ni	N max
TP309S		0.080	1.00	2.00		0.045		0.030	22.0-24.0	12.0-15.0	--
1.4833		0.150	1.00	2.00		0.045		0.015	22.0-24.0	12.0-14.0	0.11
Welding process		EFW ERW SAW MIG MAG etc
Surface Finish		Annealed, Polished, Pickled, Brush etc
Packing		Bundles/plywood cases
Applications		For fluid and gas transport; structure and machining; heat exchanger pipes etc
Other standards		ASTM A409/A409M ASTM A668/A668M ASTM A249/A249M JIS G3463 JIS G3468 DIN 17455 DIN 17457 etc GB/T 12770-2002 GB/T 12771-2008
Bright annealed
Standard		ASTM A554 ASTM A270
Surface Finish		Annealed, Bright, Polish etc
Applications		Decorative pipe, Sanitary pipe etc
