Stainless Steel Wire Mesh:
We produce Stainless Steel Wire Mesh from first class stainless steel wire materials in SUS302, 304, 316, 304L, 316L.
Weaving Patterns:
Plain Weave:
Each weft wire passes over one and under one warp wire, and each warp wire passes over one and under one weft wire, every weft wire have and warp wire the same diameter.
Twill Weave:
Each weft wire passes alternately over two, and then under two successive warp wires and each warp wire passes alternately over two and under two successive weft wires. It is possible to be used to allow a heavier than standard wire diameter.We can supply the mesh from 30 mesh to 500 mesh.
Dutch weave:
General Uses:
Stainless steel wire mesh, with its excellent resistance against acid, alkali, heat and corrosion, find extensive uses in processing of oils, chemicals, food, pharmaceuticals, also sorting and screening of solid, liquid and gas in mine, metallurgy, airspace, machine making, etc.
Parameters:
Specification of Stainless Steel Wire Mesh | ||
Mesh/Inch |
Wire Gauge(SWG) |
Aperture in mm |
3mesh x 3mesh |
14 |
6.27 |
4mesh x 4mesh |
16 |
4.27 |
5mesh x 5mesh |
18 |
3.86 |
6mesh x 6mesh |
18 |
3.04 |
8mesh x 8mesh |
20 |
2.26 |
10mesh x 10mesh |
20 |
1.63 |
20mesh x 20mesh |
30 |
0.95 |
30mesh x 30mesh |
34 |
0.61 |
40mesh x 40mesh |
36 |
0.44 |
50mesh x 50mesh |
38 |
0.36 |
60mesh x 60mesh |
40 |
0.30 |
80mesh x 80mesh |
42 |
0.21 |
100mesh x 100mesh |
44 |
0.172 |
120mesh x 120mesh |
44 |
0.13 |
150mesh x 150mesh |
46 |
0.108 |
160mesh x 160mesh |
46 |
0.097 |
180mesh x 180mesh |
47 |
0.09 |
200mesh x 200mesh |
47 |
0.077 |
250mesh x 250mesh |
48 |
0.061 |
280mesh x 280mesh |
49 |
0.060 |
300mesh x 300mesh |
49 |
0.054 |
350mesh x 350mesh |
49 |
0.042 |
400mesh x 400mesh |
49 |
0.0385 |
500mesh x 500mesh |
50 |
0.0273 |
Roll width: 2'-8' | ||

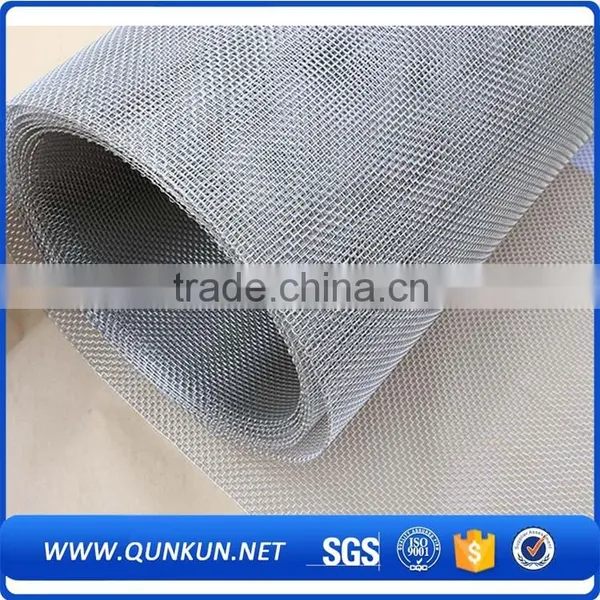

Stainless Steel Wire Mesh 1:

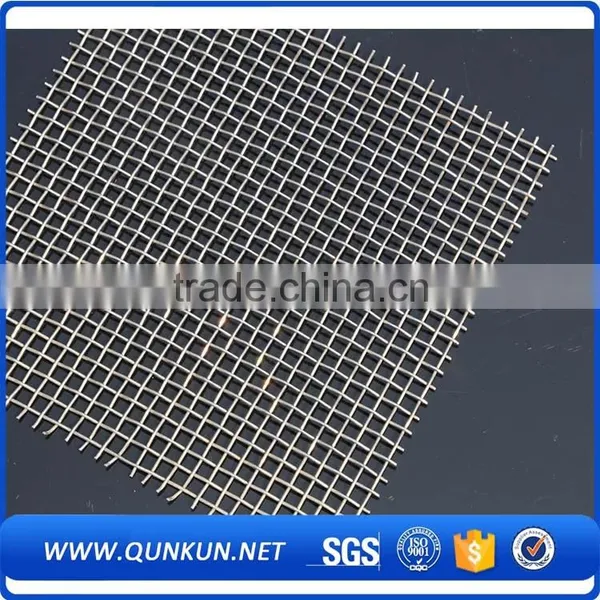

Stainless Steel Wire Mesh 2:

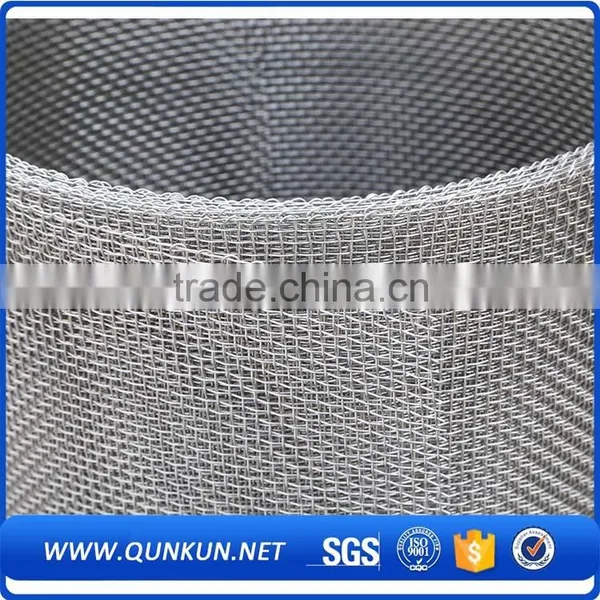

Stainless Steel Wire Mesh 3:

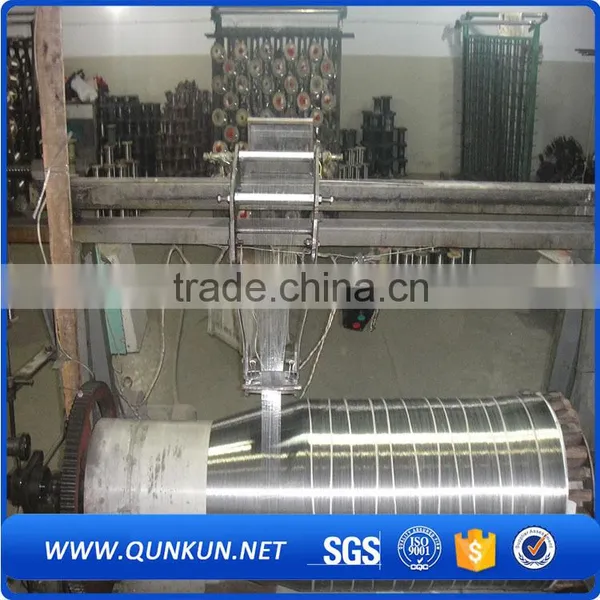

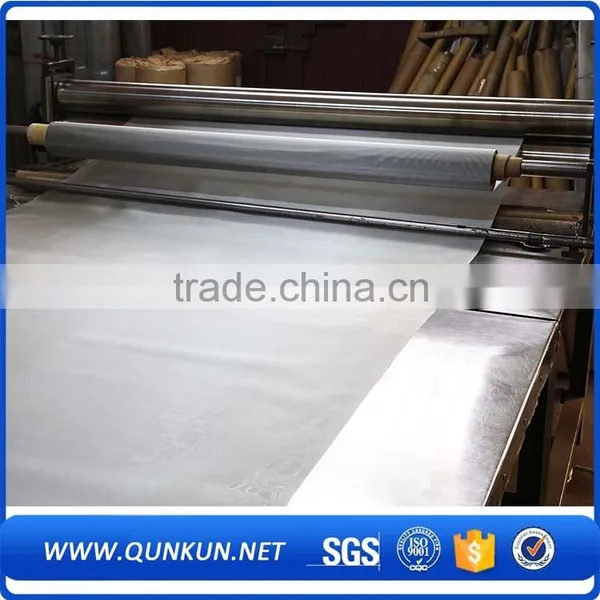

Production Process of Stainless Steel Wire Mesh:
Stainless Steel Wire Mesh is packed with Seaworthy packing.
Hebei Qunkun Metal Product Co., Ltd is a premier manufacturer and supplier of wire mesh products located in Anping Town, the famous Wire Mesh Land of China. We have engaged in wire drawing, wire mesh weaving and metal fabricating for about ten years and have accumulated rich experiences in this field.
Our Products:
Qunkun offers the following products with complete specifications and good quality: Hexagonal wire netting, gabions, chain link fence, wire mesh fences, welded wire mesh, welded wire panels, expanded metal mesh, stainless steel wire mesh, Dutch woven wire cloth, galvanized square wire mesh, galvanized wire, insect screen, barbecue grill netting, razor wire, barbed wire and fencing accessories. Our products are widely used in petroleum, chemical, construction, textile, medicine, aviation, aerospace and other industries.
Qunkun has the expertise, the technical force, the advanced processing and inspection equipment, and the experience to establish good business relationship with world customers. Qunkun has adopted modern management system to ensure product quality and reasonable price.
Most of our wire mesh products are for export to Europe, the United States, the Middle East, Southeast Asia, and many other countries and regions. We can offer quality products at good price and timely delivery. Welcome to contact us.
Q:What information should be provided if i want the lowest quotation?
A:The specification of wire mesh, such as material, mesh number, wire diameter, hole size, width,quantity, finishing.
Q:Could you provide free sample?
A:Yes, we can provide free sample in half A4 size.
Q:Are you the manufacturer?
A:Yes, we have specialized in this field for about 10 years experience.
Q:What's the payment?
A:We usually use the T/T, L/C, D/P, Western Union.
Q:How do you ship the finished wire mesh?
A:Usually by sea.
