ele.galvanized wire (Manufacture& ISO9001):
ele.galvanized wire :
1. Type: Electro galvanized wire or Hot dipped galvanized
2. MOQ: 3tons
3. Main Export Area: West Europe, America, Middle East
low price ele.galvanized wire Specifications:
wire gauge size |
SWG(mm) |
BWG(mm) |
metric(mm) |
8 |
4.06 |
4.19 |
4.00 |
9 |
3.66 |
3.76 |
- |
10 |
3.25 |
3.40 |
3.50 |
11 |
2.95 |
3.05 |
3.00 |
12 |
2.64 |
2.77 |
2.80 |
13 |
2.34 |
2.41 |
2.50 |
14 |
2.03 |
2.11 |
- |
15 |
1.83 |
1.83 |
1.80 |
16 |
1.63 |
1.65 |
1.65 |
17 |
1.42 |
1.47 |
1.40 |
18 |
1.22 |
1.25 |
1.20 |
19 |
1.02 |
1.07 |
1.00 |
20 |
0.91 |
0.89 |
0.90 |
21 |
0.81 |
0.813 |
0.80 |
22 |
0.71 |
0.711 |
0.70 |
We can supply supper quality Electro Galvanized Steel Wire Hot dip galvanized wire.
Electro galvanized wire process with low/high carbon steel wire, through drawing and electro galvanizing. Our fivestar produces hot dip galvanized steel wire from choiced low/high carbon steel wire, through the strict process of wire drawing-annealing-acid washing-water clearing-drying-galvanized coiling, in this way, excellent flexibility and tensile strength could be guaranted.
ele.galvanized wire:
Hot dip / Electro Galvanized steel wire : Technical/Mechanical Characters:
ASTM Standard: A641/A641M-98
Material: SAE1006/1008,Q195/235 SAE1050/1065
Standard wire gauge: BWG6 to BWG25.
Zinc coating: 8-25g/sqm for Electro Galvanized steel wire ; 60g - 220g/sqm for Hot Dip Galvanized Wire
Heavy coating: >200grams/sq.m or according to our customers' requirement >250grams/sq.m
T.S.: 300/550Mpa, 350/450Mpa, 450-550Mpa, 600-800Mpa, 700-900Mpa 1100-1300Mpa, 1300-1700Mpa etc.
Packing: 1kg-1000kgs/coil
Application: This kind of wire is extensively used in construction, handicrafts, woven wire mesh, express way fencing mesh, packaging of products and other daily uses.

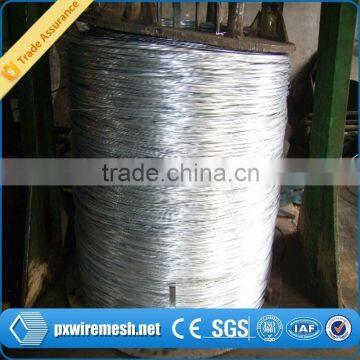

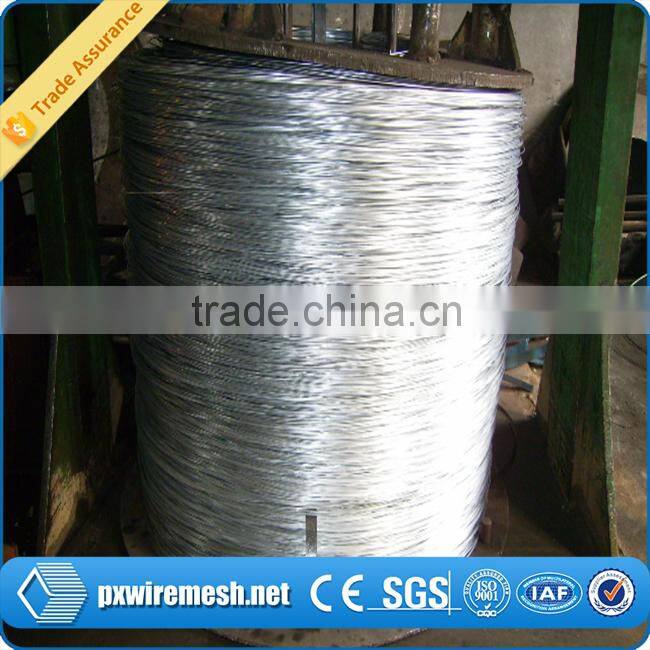

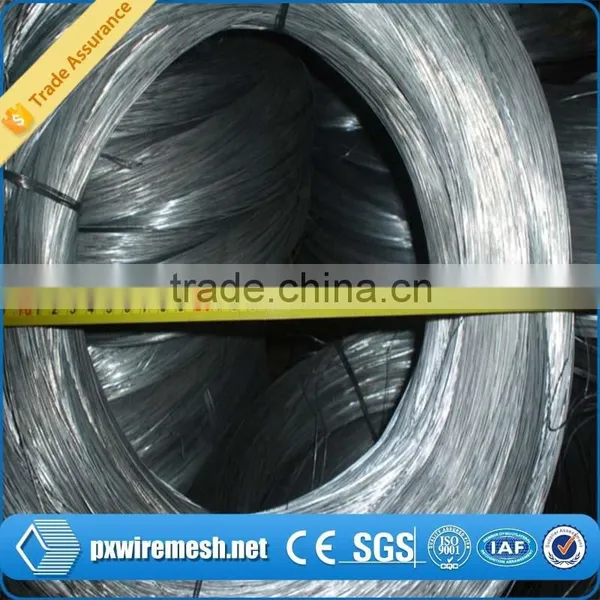

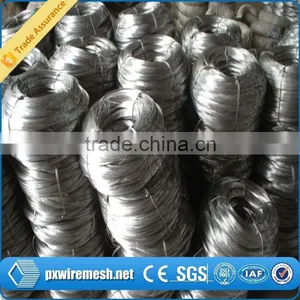

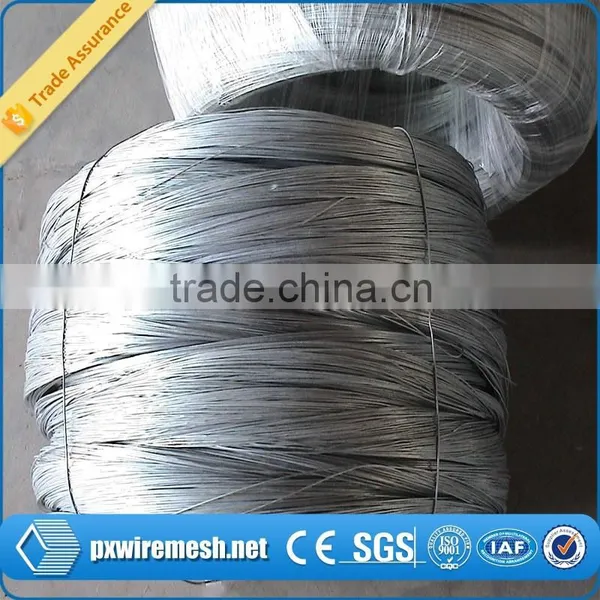

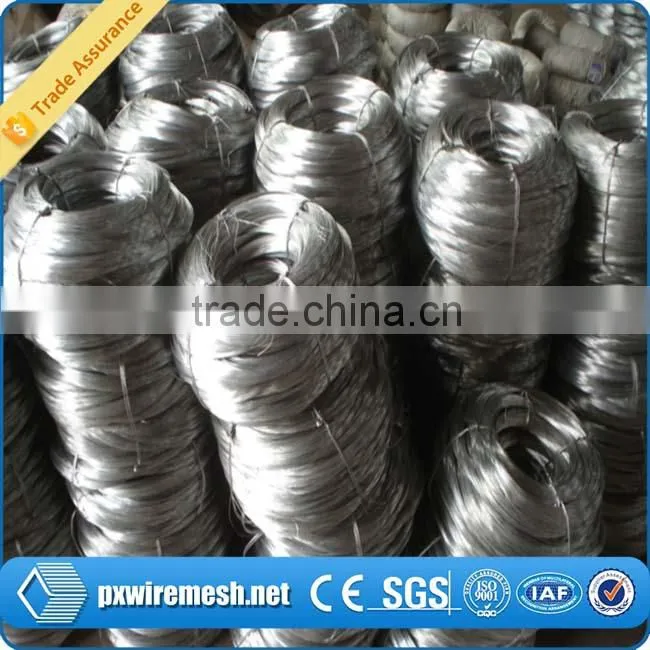

ele.galvanized wire 1:
ele.galvanized wire 2:
ele.galvanized wire 3:
ele.galvanized wire 4:
The production process of ele.galvanized wire:

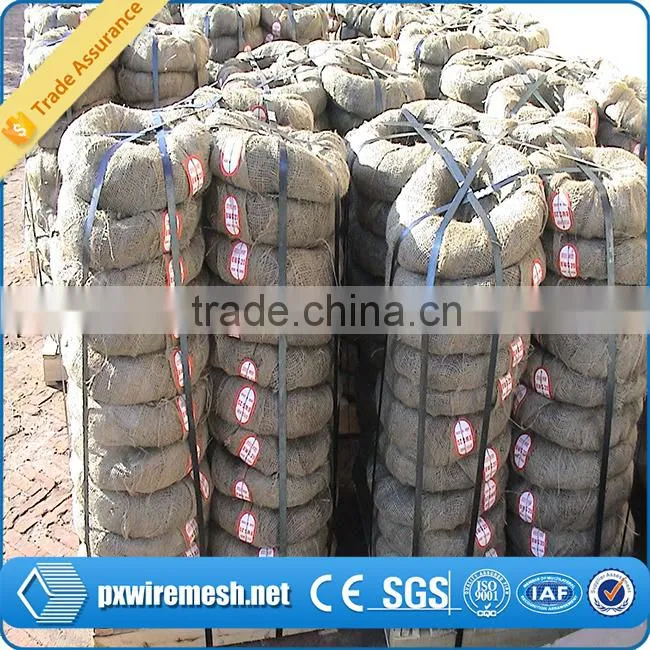

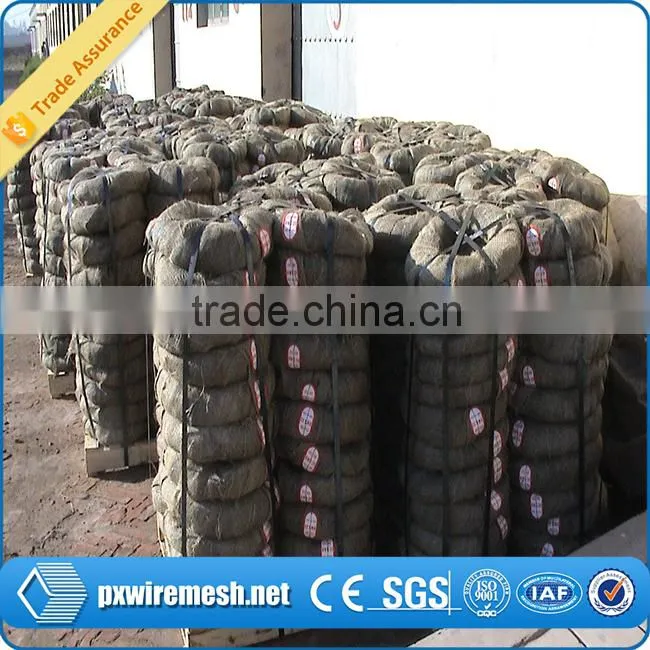

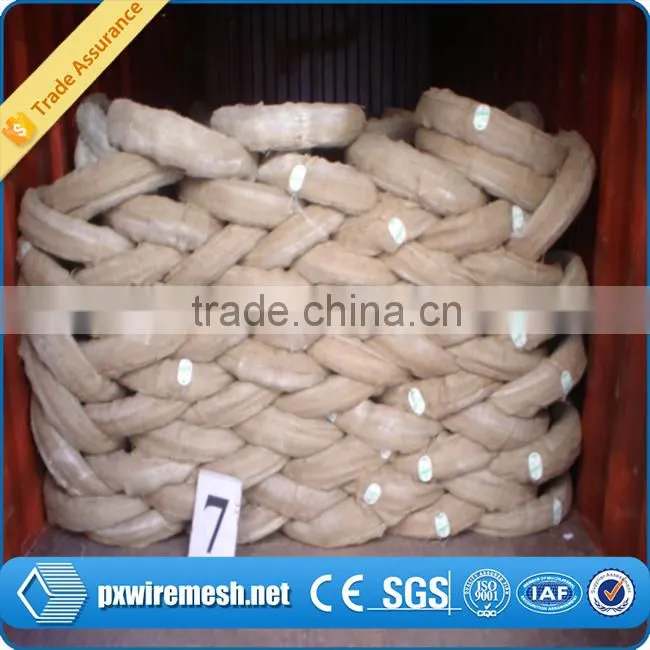

ele.galvanized wire is wrapped with Plastic Cloth Inside and Woven Cloth Outside. Or meet our customers' requirement .
