Home > Products > New Products > JDSU OTDR MTS-6000 series Optical time domain reflectometer
JDSU OTDR MTS-6000 series Optical time domain reflectometer
- 10 Set / Sets per Month
- Hongkong
- T/T Credit Card PayPal
Product Details
Place of Origin: | United States | Brand Name: | JDSU | Model Number: | MTS-6000 |
Packaging Details
standard packing
Product Description
Specifications

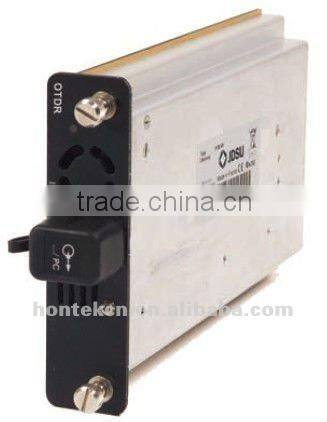

JDSU OTDR MTS-6000 series Optical time domain reflectometerE8126MR
E8126LR
E8126VLR
in stock

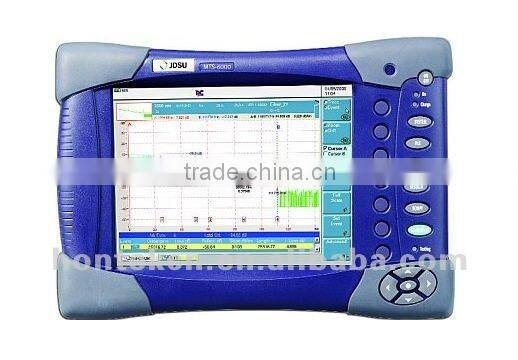

JDSU OTDR MTS-6000 series Optical time domain reflectometer
Single module E8126MR 1310/1550nm 40/38dB
JDSU OTDR MTS-6000 with 1310/1550/1625nm 40/38/37db E8136MR
Please Call Anita for details: 0086-13798580405
Skype: anita.hsv
Main OTDR Module Technical Specifications (typical at 25°C)
OTDR Module | Central wavelength | Pulse width | Dynamic range | Event dead zone | Attenuation dead zone |
Short range multimode (SRL) | 850/1300±20nm | 3 ns to 300 ns | 24/24dB | 0.5m | 2m |
Short range multimode and singlemode (SRL) | 850/1300/1310/ 1550/1625 ±20nm | 3 ns to 20 us | 24/24/40/ 38/37 dB | 0.5 m (multimode) 0.8m (multimode) | 5 m (multimode) 8 m (multimode) |
Very short range singlemode (VSRe) | 1310/1550±20nm | 10 ns to 10 us | 32/30dB | 2m | 8m |
Short range singlemode (SRe) | 1310/1550±20nm | 10 ns to 10 us | 34/32dB | 3m | 25m |
Medium range singlemode (MR) | 1310 ±20nm 1490 ±15nm 1550 ±20nm 1625 ±10nm | 3 ns to 20 us | 40 dB 40 dB 38 dB 37 dB | 0.8m | 4m |
Long range singlemode (LR) | 1310 ±20nm 1490 ±15nm 1550 ±20nm 1625 ±10nm | 3 ns to 20 us | 43 dB 40 dB 41 dB 41 dB | 0.8m | 4m |
Very long range singlemode (LR) | 1310 ±20nm 1383 ±2nm 1490 ±15nm 1550 ±20nm 1625 ±10nm | 3 ns to 20 us | 45 dB 44 dB 42 dB 43 dB 43 dB | 0.8m | 4m |
Ultra long range singlemode (UHD) | 1310/1550±20nm 1625±10nm | 10 ns to 20 us | 45.5/50dB 45.5dB | 4.5m | 15m |
Ordering Information
OTDR Module – Singlemode | |
E8126VSRE | Very Short range 1310/1550nm |
E8126SRE | Short range 1310/1550nm |
E8126MR | Medium range/ high resolution 1310/1550nm |
E8126LR | Long range 1310/1550nm |
E8126VLR | Very long range 1310/1550nm |
E8126UHD | Ultra long range 1310/1550nm |
OTDR Module – Multimode | |
E8123SRL | Short range 850/1300nm |
OTDR Module –Multimode & Singlemode | |
E8146SRL | Short range 850/1300/1310/1550nm |
E8156SRL | Short range 850/1300/1310/1550/1625nm |
