FTB-200V2 Exfo OTDR platform module FTB-7000
Please contact Super Sales Engineer: Sophia Yin
Tel / WhatsApp / Viber: +8618603007473
Skype: sophia.hsv

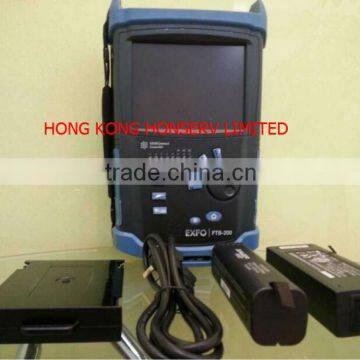

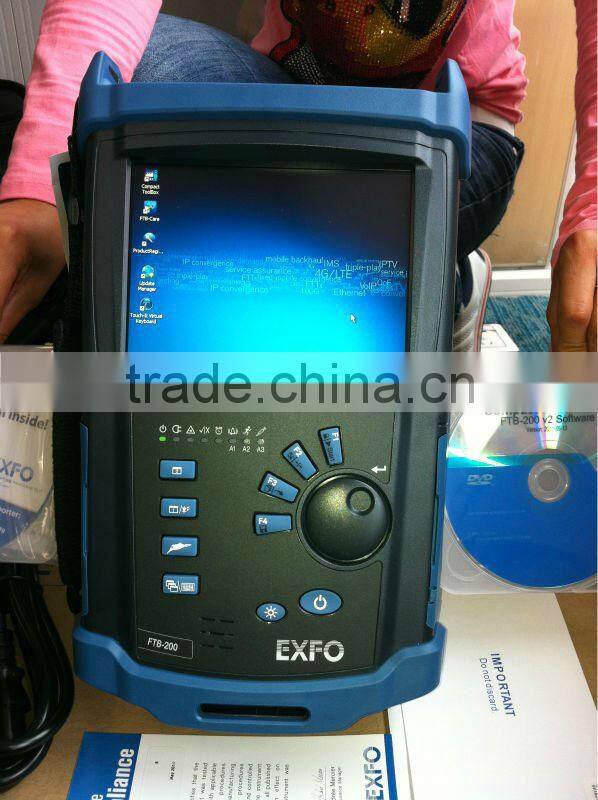

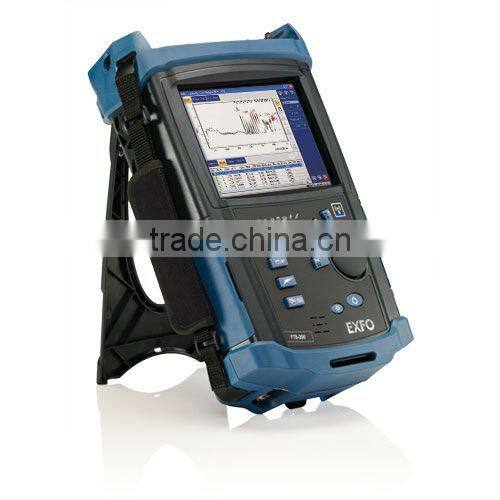

Exfo FTB-200 Compact Platform
The smaller, lighter platform built for the supertech. Combines singlemode and multimode fiber test functionalities, ideal for FTTx, metro/access and long-haul network testing. Accommodates two field-interchangeable modules ranging from OTDRs and loss testers to SONET/SDH and Ethernet analyzers.
Key Features and Benefits Compatible with any of EXFO's industry-renowned OTDR modules?
which offer the shortest dead zones available?the FTB-3930 MultiTest Module (OLTS), the FTB-8105/8115/8120/8130 Transport Blazer Next-Gen SONET/SDH Test Modules, as well as the FTB-8510/8510B and FTB-8510G Packet Blazer Ethernet Test Modules
New software functionalities for simpler, faster OTDR testing
Designed for the field: lightweight and compact; resistant to shock, water, dust and common chemicals; door panels for extra port protection
Battery-powered solution for SONET/SDH, Ethernet, loss and OTDR testing
Connects anywhere: USB, 3G, Wi-Fi, VPN and Bluetooth
Loaded with utilities: All the tools required to maximize field testing, plus third-party applications
Like a PC: Intel processor with Windows Embedded Standard operating system
EXFO Connect-compatible: Automated asset management; data goes through the cloud and into a dynamic database
GPS capabilities: Accurate coordinates under the same conditions as a regular satellite GPS receiver
KEY FEATURES:
Dynamic range of up to 36 dB
Event dead zone as low as 0.8 meter
Combined singlemode/multimode wavelengths (12CD-23B model)
Integrated tool: combines a visual fault locator, inspection
probe, broadband power meter and a CW source mode
Controlled launch conditions for more accurate loss measurements
EXFO Connect-compatible: automated asset management;
data goes through the cloud and into a dynamic database

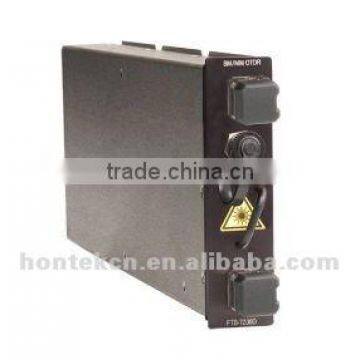

modules:
| First OTDR Module | Description |
| D3-XX | FTB-7200D-023B-XX, SM OTDR Module, 1310/1550 nm, 36/34 dB (9/125 µm) |
| D15-XX | FTB-7200D-12CD-23B-XX, MM/SM OTDR Module, 850/1300/1310/1550 nm, 27/26/36/34 dB (MM: 50/125 & 62.5/125 µm - SM: 9/125 µm) |
| D16-XX | FTB-7200D-12CD-EI-EUI-XX, MM OTDR Module, 850/1300 nm, 27/26 dB (50/125 & 62.5/125 µm) |
| D31-XX | FTB-7300E-000-04B-XX, SM OTDR Module, filtered 1625nm, 39dB (9/125 µm) |
| D25-XX | FTB-7300E-023B-XX, SM OTDR Module, 1310/1550 nm, 39/37 dB (9/125 µm) |
| D26-XX | FTB-7300E-034B-XX, SM OTDR Module, 1550/1625 nm, 37/37 dB (9/125 µm) |
| D27-XX | FTB-7300E-234B-XX, SM OTDR Module, 1310/1550/1625 nm, 39/37/37 dB (9/125 µm) |
| D28-XX | FTB-7300E-236B-XX, SM OTDR Module, 1310/1490/1550 nm, 39/35/37 dB (9/125 µm) |
| D29-XX | FTB-7300E-23B-04B-XX, SM OTDR Module, 1310/1550 nm, 39/37 dB, second port with filtered 1625nm, 39dB (9/125 µm) |
| D30-XX | FTB-7300E-23B-08B-XX, SM OTDR Module, 1310/1550 nm, 39/37 dB, second port with filtered 1650nm, 37dB (9/125 µm) |
| D32-XX | FTB-7400E-CWS, CWDM SM ODTR Module, 1470/1490/1510/1530 nm, 41/41/41/41 dB (9/125 µm), Visual fault locator with universal 2.5 mm adapter |
| D33-XX | FTB-7400E-CWCL, CWDM SM ODTR Module, 1550/1570/1590/1610 nm, 41/41/40/40 dB (9/125 µm), Visual fault locator with universal 2.5 mm adapter |
| D17-XX | FTB-7400E-0023B-XX, SM OTDR Module, 1310/1550 nm, 42/41 dB (9/125 µm) |
| D19-XX | FTB-7400E-0234B-XX-VFL, SM OTDR Module, SM OTDR Module, 1310/1550/1625 nm, 42/41/41 dB (9/125 µm), 650 nm Visual fault locator with universal 2.5 mm adapter |
| D20-XX | FTB-7400E-2347B-XX-VFL, SM OTDR Module, 1310/1383/1550/1625 nm, 42/40/41/41 dB (9/125 µm), 650 nm Visual fault locator with universal 2.5 mm adapter |
| D21-XX | FTB-7500E-0023B-XX-VFL, SM OTDR Module, 1310/1550 nm, 45/43 dB (9/125 µm), 650 nm Visual fault locator with universal 2.5 mm adapter |
| D22-XX | FTB-7500E-0034B-XX-VFL, SM OTDR Module, 1550/1625 nm, 45/45 dB (9/125 µm), 650 nm Visual fault locator with universal 2.5 mm adapter |
| D23-XX | FTB-7600E-0023B-XX-VFL SM OTDR Module, 1310/1550 nm, 50/50 dB (9/125 µm NZDSF), 650 nm Visual fault locator with universal 2.5 mm adapter |
| D24-XX | FTB-7600E-0034B-XX-VFL SM OTDR Module, 1550/1625 nm, 50/48 dB (9/125 µm NZDSF), 650 nm Visual fault locator with universal 2.5 mm adapter |
| First OTDR Module | Description |
| D3-XX | FTB-7200D-023B-XX, SM OTDR Module, 1310/1550 nm, 36/34 dB (9/125 µm) |
| D15-XX | FTB-7200D-12CD-23B-XX, MM/SM OTDR Module, 850/1300/1310/1550 nm, 27/26/36/34 dB (MM: 50/125 & 62.5/125 µm - SM: 9/125 µm) |
| D16-XX | FTB-7200D-12CD-EI-EUI-XX, MM OTDR Module, 850/1300 nm, 27/26 dB (50/125 & 62.5/125 µm) |
| D31-XX | FTB-7300E-000-04B-XX, SM OTDR Module, filtered 1625nm, 39dB (9/125 µm) |
| D25-XX | FTB-7300E-023B-XX, SM OTDR Module, 1310/1550 nm, 39/37 dB (9/125 µm) |
| D26-XX | FTB-7300E-034B-XX, SM OTDR Module, 1550/1625 nm, 37/37 dB (9/125 µm) |
| D27-XX | FTB-7300E-234B-XX, SM OTDR Module, 1310/1550/1625 nm, 39/37/37 dB (9/125 µm) |
| D28-XX | FTB-7300E-236B-XX, SM OTDR Module, 1310/1490/1550 nm, 39/35/37 dB (9/125 µm) |
| D29-XX | FTB-7300E-23B-04B-XX, SM OTDR Module, 1310/1550 nm, 39/37 dB, second port with filtered 1625nm, 39dB (9/125 µm) |
| D30-XX | FTB-7300E-23B-08B-XX, SM OTDR Module, 1310/1550 nm, 39/37 dB, second port with filtered 1650nm, 37dB (9/125 µm) |
| D32-XX | FTB-7400E-CWS, CWDM SM ODTR Module, 1470/1490/1510/1530 nm, 41/41/41/41 dB (9/125 µm), Visual fault locator with universal 2.5 mm adapter |
| D33-XX | FTB-7400E-CWCL, CWDM SM ODTR Module, 1550/1570/1590/1610 nm, 41/41/40/40 dB (9/125 µm), Visual fault locator with universal 2.5 mm adapter |
| D17-XX | FTB-7400E-0023B-XX, SM OTDR Module, 1310/1550 nm, 42/41 dB (9/125 µm) |
| D19-XX | FTB-7400E-0234B-XX-VFL, SM OTDR Module, SM OTDR Module, 1310/1550/1625 nm, 42/41/41 dB (9/125 µm), 650 nm Visual fault locator with universal 2.5 mm adapter |
| D20-XX | FTB-7400E-2347B-XX-VFL, SM OTDR Module, 1310/1383/1550/1625 nm, 42/40/41/41 dB (9/125 µm), 650 nm Visual fault locator with universal 2.5 mm adapter |
| D21-XX | FTB-7500E-0023B-XX-VFL, SM OTDR Module, 1310/1550 nm, 45/43 dB (9/125 µm), 650 nm Visual fault locator with universal 2.5 mm adapter |
| D22-XX | FTB-7500E-0034B-XX-VFL, SM OTDR Module, 1550/1625 nm, 45/45 dB (9/125 µm), 650 nm Visual fault locator with universal 2.5 mm adapter |
| D23-XX | FTB-7600E-0023B-XX-VFL SM OTDR Module, 1310/1550 nm, 50/50 dB (9/125 µm NZDSF), 650 nm Visual fault locator with universal 2.5 mm adapter |
| D24-XX | FTB-7600E-0034B-XX-VFL SM OTDR Module, 1550/1625 nm, 50/48 dB (9/125 µm NZDSF), 650 nm Visual fault locator with universal 2.5 mm adapter |
Be free contact Sophia if any questions!
Or log into our website : .hk for more information!!!

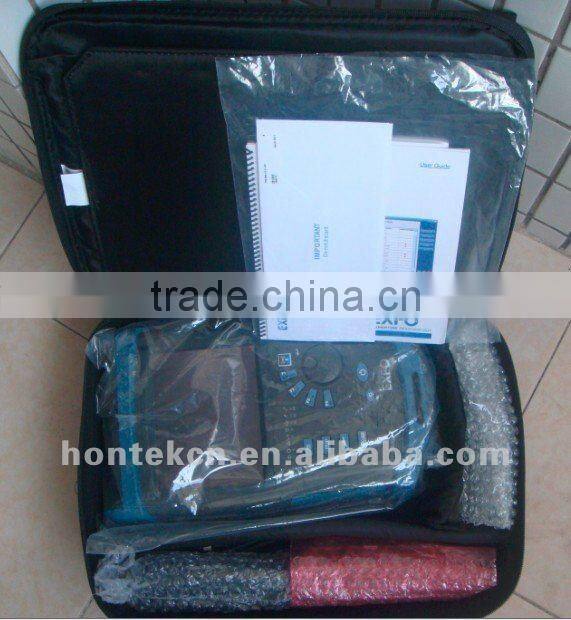

- Standard Package:
- We can ship to worldwide. Shipping cost around US$120-US$200 to worldwide from China vis UPS, FedEx, DHL, TNT and take 2-3 workingd days.
Our main products as below:
1. FUSION SPLICER: USA COMWAY C10/C8; Sumitomo (Type-81C); Fujikura (FSM-80S/70S/70R); Fitel S178A.
2.OTDR: EXFO (FTB-1/AXS-110/AXS-100/ FTB-200/FTB-500); JDSU (MTS-2000/4000/6000/8000); YOKOGAWA (AQ1200/AQ7275)
3. POWER METER (PPM-350C, FPM-300, HSV-300P); LIGHT SOURCE (FLS-300, HSV-300L); VFL (FLS-241, HSV-321); Multi Loss tester (FOT-930, FOT-302)
4. Anritsu site master S331D, S331L, S331E, S332E.
5. Fiber cleaver (CT-30A/CT-30/CT-05/FC-6S), adapter, battery, electrode, connector, fiber tool kits
6. Fiber cable, patch cord, adapter, closure, pigtail, optical switch, patch panel, etc..
7.Maintainance and repair, calibration service for the EXFO, JDSU, Sumitomo, Fujikura, Anritsu
After-Sales Service
we also provide Maintainance and repair ,calibration service for the EXFO ,Sumitomo, Fujikura, Anritsu, JDSU.
Shenzhen Hontek Co., Ltd. is a professional distributor and product developer for telecom test equipments. We are the sole agency of Comway from California. USA. and also agent for Fujikura, Sumitomo fusion splicers, EXFO, JDSU, Yokogawa test equipments, Anritsu site master. At the same time, we have our own factory producing the fiber testers, patch cords, cables and fiber accessories.
Our customers spread all of the world due to our high quality products with competitive price. Moreover, we have some agents in many countries. In china market our customer include China Telecom, factories, Huawei, ZTE, BYD, Military and many engineering companies.
