Home > Electrical & Electronics > Telecommunication & Broadcasting > Fiber Optic Equipment > OTDR EXFO FTB-1/FTB-200/ FTB-500/ AXS-110/ MAX-710B/MAX-720B OTDR EXFO OTDR Price
OTDR EXFO FTB-1/FTB-200/ FTB-500/ AXS-110/ MAX-710B/MAX-720B OTDR EXFO OTDR Price
US$ 1 - 4,400
MOQ: 1 Unit
Key Specifications
Get Latest Price
Place of Origin:
Canada
Brand Name:
EXFO
Model Number:
FTB-1
Payment & Shipping
Payment Methods:
Port of Shipment:
HONGKONG
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
EXFO Max-710B OTDRNegotiableMOQ: 1 Set -
EXFO DATA POST-PROCESSING SOFTWARE FastReporter SoftwaresUS$ 1 - 500MOQ: 1 Piece
-
FTB-500 Carrying CasesUS$ 200 - 700MOQ: 1 Piece
-
EXFO FTB-2-PRO-5240S Kit DWDM Network / Compact OSA for NetworksUS$ 1 - 50,000MOQ: 1 Set
-
EXFO Multitest Module FTB-3932 Optimized for Testing Passive Optical Networks (PONs)NegotiableMOQ: 1 Set
Place of Origin
Canada
Brand Name
EXFO
Model Number
FTB-1
OTDR EXFO FTB-1/FTB-200/ FTB-500/ AXS-110/ MAX-710B/MAX-720B OTDR EXFO OTDR Price

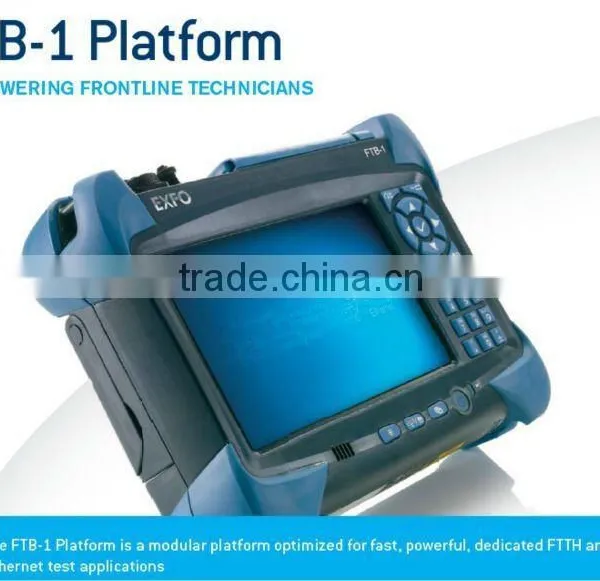

The FTB-1 Platform is a modular platform optimized for fast, powerful, dedicated FTTH and
Ethernet test applications

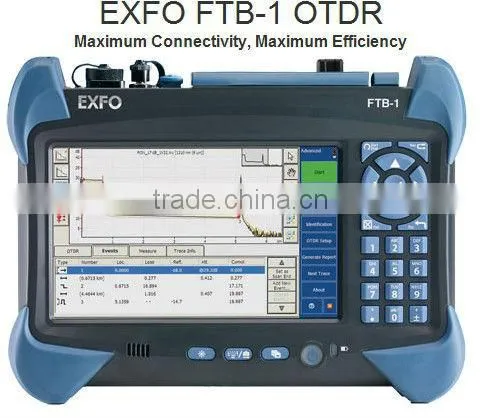

EXFO OTDR FTB-1 with module FTB-720/730/860
| TK-1-700 | |
| Includes : | - Color 7'' touchscreen TFT display |
| - USB 2,0 interfaces | |
| - Up to 1Gig RJ-45 built-in interface | |
| - EXFO Fiber Inspection Probe video connector interface | |
| - AC adapter/charger and 1 battery | |
| - Certificate of Compliance | |
| - Semi-rigid case (GP-10-072) | |
| - Neck strap | |
| - Hand strap | |
| - Please order OTDR or iOLM base software or the combined OTDR and iOLM option. If not specified, the OTDR software will be selected | |
| Important : | iOLM will be delivered with an APC interface. APC interface on an iOLM and OTDR ensures maximum measurement efficiency. UPC connectors are prone to be highly reflective if dirty or worn. Reflectance of the unit connector will dramatically limit the performance of the measurement. Worn UPC will create a permanent degradation of the unit capabilities until the output connector is replaced. APC interface can handle wearing and dirt without being highly reflective. Testing a UPC network doesn’t require a UPC OTDR, simply use a APC-UPC test jumper suplied with the unit when UPC interface is ordered. |
| Model | Description |
| ftb-1 | Modular mainframe unit (8Gig internal memory) |
| OTDR Module | Description |
| FTB-720-000-04B-XX | FTB-720-000-04B-XX, SM OTDR Module, Filtered 1625 nm, 34 dB (9/125 µm) for live fiber testing |
| FTB-720-023B-04B-XX | FTB-720-023B-04-XX, SM OTDR Module Port 1 : 1310/1550 nm, 36/34 dB (9/125 µm) Port 2 : Filtered 1625 nm, 34 dB (9/125 µm) for live fiber testing |
| FTB-720-023B-XX | FTB-720-023B-XX, SM OTDR Module, 1310/1550 nm, 36/34 dB (9/125 µm) |
| FTB-720-12CD-XX | FTB-720-12CD-XX, MM OTDR Module, 850/1300 nm, 27/26 dB (50/125 & 62.5/125 µm) |
| FTB-720-12CD-23B-XX-XX | FTB-720-12CD-23B-XX-XX, MM/SM OTDR Module, 850/1300/1310/1550 nm, 27/26/36/34 dB (MM: 50/125 & 62.5/125 µm - SM: 9/125 µm) |
| FTB-730-000-04-XX | FTB-730-000-04B-XX, SM OTDR Module, Filtered 1625 nm, 39 dB (9/125 µm) for live fiber testing with in-line power meter (one broadband channel) |
| FTB-730-000-08B-XX | FTB-730-000-08B-XX, SM OTDR Module, Filtered 1650 nm, 37 dB (9/125 µm) for live fiber testing |
| FTB-730-023B-04-XX | FTB-730-023B-04-XX, SM OTDR Module Port 1 : 1310/1550 nm, 39/37 dB (9/125 µm) Port 2 : Filtered 1625 nm, 39 dB (9/125 µm) for live fiber testing with in-line power meter (one broadband channel) |
| FTB-730-023B-XX | FTB-730-023B-XX, SM OTDR Module, 1310/1550 nm, 39/37 dB (9/125 µm) |
| FTB-730-034B-XX | FTB-730-034B-XX, SM OTDR Module, 1550/1625 nm, 37/37 dB (9/125 µm) |
| FTB-730-236B-XX | FTB-730-236B-XX, SM OTDR Module, 1310/1490/1550 nm, 39/35/37 dB (9/125 µm) |
EXFO FTB-200 WITH FTB-7200D/FTB-7300E/FTB-7400E/FTB-7500E/FTB-7600E OTDR MODULES
Product Description
The FTB-200 V2 delivers the best performance on the market for optical, Ethernet and SONET/SDH testing.
KEY FEATURES
Intel ATOM processor with Windows Embedded Standard for maximized productivity and unique versatility
Flexible connectivity with USB, mobile, Wi-Fi and Bluetooth capabilities
Compatible with 11 families of modules for multiple field testing applications
› CWDM network characterization at eight wavelengths
› 40G and ROADM commissioning with an optical spectrum analyzer
› Multiservice testing with a next-generation SONET/SDH analyzer
› Fiber characterization and construction with OTDR,loss, dispersion and multitest modules
› Business service activation with OTDR and Ethernet test modules
› Carrier Ethernet testing from 10 Mbit/s to 10 Gbit/s
ONE PLATFORM, OVER 30 MODULES
Optimized for all phases of the network lifecycle, the FTB-200 v2 houses any of EXFO’s FTB one- or two-slot modules to meet your evolving needs. Configure your platform by combining optical, transport and datacom modules to cover a wide range of applications. Offering power, speed and modularity in a compact format, the FTB-200 v2 is the perfect tool for the field.
ORDERING INFORMATION
FTB-7200D Multimode and Singlemode (ACCESS and LAN/WAN OTDR)
FTB-7200D Multimode and Singlemode (ACCESS and LAN/WAN OTDR)
FTB-7200D-12CD-23B = Four-wavelength MM/SM OTDR module, 850/1300 nm (50/125 μm and 62.5/125 μm) and 1310/1550 nm (9/125 μm)
FTB-7200D-12CD = Dual-wavelength MM OTDR module, 850/1300 nm (50/125 μm and 62.5/125 μm)
FTB-7200D-023B = Dual-wavelength SM OTDR module,1310/1550 nm (9/125 μm)
FTB-7300E Singlemode (FTTx-PON/MDU)
Dual-wavelength
FTB-7300E Singlemode (FTTx-PON/MDU)
Dual-wavelength
FTB-7300E-023B = SM OTDR module, 1310/1550 nm (9/125 μm)
FTB-7300E-034B = SM OTDR module, 1550/1625 nm (9/125 μm)
Triple-wavelength
FTB-7300E-234B = SM OTDR module, 1310/1550/1625 nm (9/125 μm)
FTB-7300E-236B = SM OTDR module, 1310/1490/1550 nm (9/125 μm)
SM Live Port
SM Live Port
FTB-7300E-023B-04B = SM and SM Live OTDR module, 1310/1550 and 1625 nm Live Port
FTB-7300E-023B-08B = SM and SM Live OTDR module, 1310/1550 and 1650 nm Live Port
FTB-7300E-000-04B = SM Live port OTDR module, 1625 nm Live port only
FTB-7400E Singlemode (METRO/CWDM)
Dual-wavelength
FTB-7400E Singlemode (METRO/CWDM)
Dual-wavelength
FTB-7400E-0023B = SM OTDR module, 1310/1550 nm (9/125 μm)
Triple-wavelength
FTB-7400E-0234B = SM OTDR module, 1310/1550/1625 nm (9/125 μm) a
Four-wavelength
FTB-7400E-2347B = SM OTDR module, 1310/1383/1550/1625 nm (9/125 μm) a
FTB-7400E-CWS = CWDM SM OTDR module, 1470/1490/1510/1530 nm (9/125 μm) a
FTB-7400E-CWCL = CWDM SM OTDR module, 1550/1570/1590/1610 nm (9/125 μm)
FTB-7500E Singlemode (METRO/LONG-HAUL)
Dual-wavelength
FTB-7500E Singlemode (METRO/LONG-HAUL)
Dual-wavelength
FTB-7500E-0023B = SM OTDR module, 1310/1550 nm (9/125 μm)
FTB-7500E-0034B = SM OTDR module, 1550/1625 nm (9/125 μm)
FTB-7600E Singlemode (ULTRA-LONG-HAUL)
Dual-wavelength
FTB-7600E Singlemode (ULTRA-LONG-HAUL)
Dual-wavelength
FTB-7600E-0023B = SM OTDR module, 1310/1550 nm (9/125 μm)
FTB-7600E-0034B = SM OTDR module, 1550/1625 nm (9/125 μm)
