EXFO Max-710B OTDR
- 10 Set / Sets per Month
- china
- T/T Credit Card
- EXFO DATA POST-PROCESSING SOFTWARE FastReporter Softwares
- FTB-500 Carrying Cases
- EXFO FTB-2-PRO-5240S Kit DWDM network / Compact OSA for networks
- EXFO Multitest Module FTB-3932 Optimized for Testing Passive Optical Networks (PONs)
- FTB-1-720G-023B-XX-OPTICAL SM OTDR and Ethernet Module
- FTTH OTDR HSV-600 Visual diagram similar with EXFO iolm
Product Details
Place of Origin: | Canada | Brand Name: | EXFO, EXFO | Model Number: | Max-710B, MAX-710B;MAX-720B;MAX-730B/FTB-1/FTB-200/FTB-500/AXS-110 |
Packaging Details
Standard Exfo Original Packing
Product Description

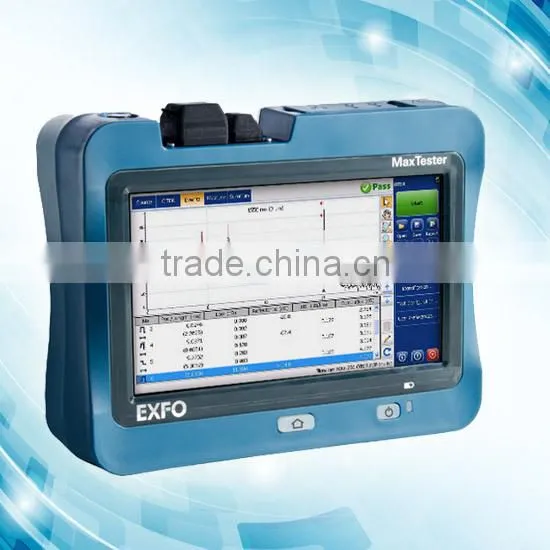

EXFO MaxTester-710B | Handheld OTDR | Singlemode | Fiber optic testing
reflectometer

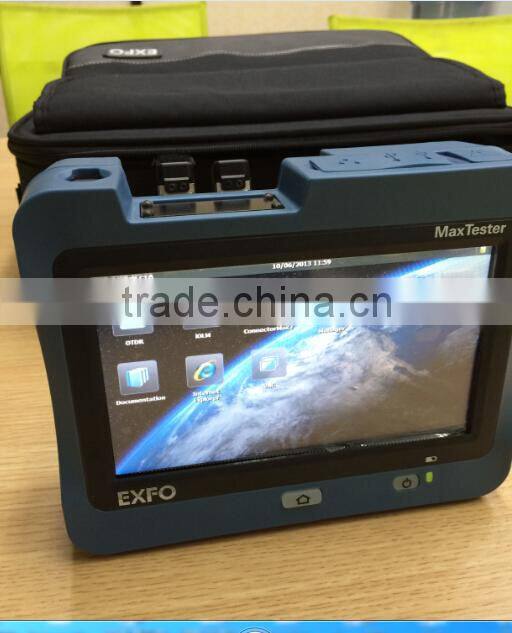

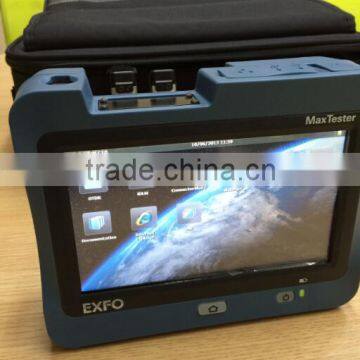

The MAX-700B series is the first tablet-inspired OTDR line that is handy, lightweight and rugged enough for any outside plant environment. With a 7-inch, outdoor-enhanced touchscreen –the most efficient handheld display in the industry– it delivers an unprecedented user experience. Its intuitive Windows-like GUI ensures a fast learning curve. Plus, its new and improved OTDR 2.0 environment offers icon-based functions, instant boot-up, automatic macrobend finders as well as improved auto and real-time modes.
The Max-700B series is a line of genuine high-performance OTDRs from the world’s leading manufacturer. It delivers EXFO’s tried and true OTDR quality and accuracy along with the best optical performance for right-first-time results, every time.
The amazing 12-hour battery life will never let a technician down, and the plug-and-play hardware options, like the VFL, power meter and USB tools, make every technician’s job easier.
Most importantly, the Max-700B series is finally bringing the iOLM, an intelligent OTDR-based application, to the handheld market. This advanced software turns even the most complex trace analysis into a simple, one-touch task.
Ultimately, the Max-700B series is small enough to fit in your hand and big enough to fit all your needs!
THE ENTRY-LEVEL SOLUTION DESIGNED FOR ALL YOUR TESTING NEEDS
The MAX-730B OTDR/iOLM is optimized to test through optical splitters up to 1x128, ensuring complete end-to-end FTTH characterization.The 1625-nm, out-of-band, live testing port enables the efficient troubleshooting of active networks without affecting the signal of other clients. Plus, the high dynamic range makes it suitable for Metro point-to-point testing.
Other models available :
MAX-715B Short Access and FTTx Last-Mile installation and troubleshooting (30 dB)
MAX-720B Access for any short network construction (36 dB)
Applications
FTTx/MDU test challenges within PON networks
Access network testing (P2P)
Metro links testing (P2P)
Live fiber troubleshooting
Key Features
Handy, lightweight, powerful, tablet-inspired design

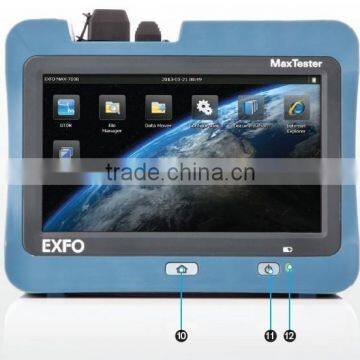

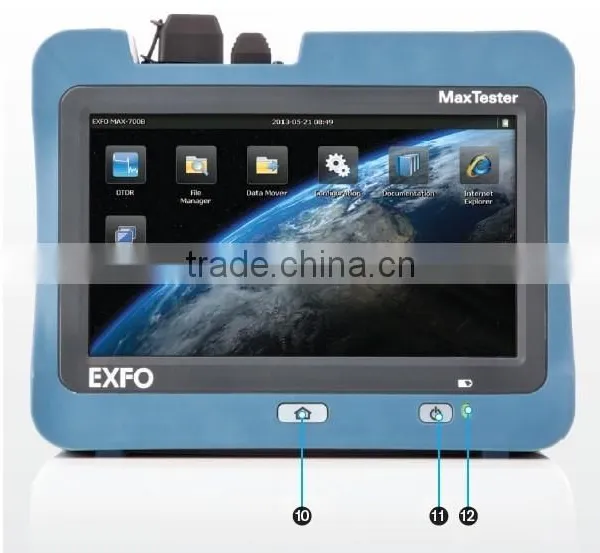

7-inch, outdoor-enhanced touchscreen – the biggest in the handheld industry
12-hour autonomy
Dead zones: EDZ 0.8 m, ADZ 3.5 m
Dynamic range: 39/37/37 dB
Rugged design built for outside plant
iOLM-ready: intelligent and dynamic application that turns complex OTDR trace analysis into a one-touch task
Models | Description |
MAX-710B-XX | MAX-710B, Last Mile SM OTDR 1310/1550 nm, 29/28 dB (9/125 µm) Macrobend Finder and Summary Screen Software Features - Display: 7" Color Touchscreen TFT - Memory: 2GB Internal - 2x USB 2.0 Interfaces - RJ-45 Built-In Interface [Note] ! iOLM-ready (APC only) |
MAX-710B-M2-XX | MAX-710B, Last Mile SM OTDR Port 1 : 1310/1550 nm, 30/28 dB (9/125 µm) Port 2 : Filtered 1625 nm, 28 dB (9/125 µm) Macrobend Finder and Summary Screen Software Features - Display: 7" Color Touchscreen TFT - Memory: 2GB Internal - 2x USB 2.0 Interfaces - RJ-45 Built-In Interface [Note] ! iOLM-ready (APC only) |
MAX-710B-M3-XX | MAX-710B, Last Mile SM OTDR 1310/1550/1625 nm, 30/28/28 dB (9/125 µm) Macrobend Finder and Summary Screen Software Features - Display: 7" Color Touchscreen TFT - Memory: 2GB Internal - 2x USB 2.0 Interfaces - RJ-45 Built-In Interface [Note] ! iOLM-ready (APC only) |
MAX-720B-M1-XX | MAX-720B, Access SM OTDR 1310/1550 nm, 36/34 dB (9/125 µm) Macrobend Finder and Summary Screen Software Features - Display: 7" Color Touchscreen TFT - Memory: 2GB Internal - 2x USB 2.0 Interfaces - RJ-45 Built-In Interface [Note] ! iOLM-ready (APC only) |
MAX-730B-M1-XX | MAX-730B, FTTx/PON SM OTDR 1310/1550 nm, 39/37 dB (9/125 µm) Macrobend Finder and Summary Screen Software Features - Display: 7" Color Touchscreen TFT - Memory: 2GB Internal - 2x USB 2.0 Interfaces - RJ-45 Built-In Interface [Note] ! iOLM-ready (APC only) |
MAX-730B-M2-XX | MAX-730B, FTTx/PON SM OTDR Port 1 : 1310/1550 nm, 39/37 dB (9/125 µm) Port 2 : Filtered 1625 nm, 37 dB (9/125 µm) Macrobend Finder and Summary Screen Software Features - Display: 7" Color Touchscreen TFT - Memory: 2GB Internal - 2x USB 2.0 Interfaces - RJ-45 Built-In Interface [Note] ! iOLM-ready (APC only) |
MAX-730B-M3-XX | MAX-730B, FTTx/PON SM OTDR 1310/1550/1625 nm, 39/37/37 dB (9/125 µm) Macrobend Finder and Summary Screen Software Features - Display: 7" Color Touchscreen TFT - Memory: 2GB Internal - 2x USB 2.0 Interfaces - RJ-45 Built-In Interface [Note] ! iOLM-ready (APC only) |
Options | Description |
PM2X-XX | Power Meter ONLY (GeX detector) With FOA-xx: Connector Adapter must be specified** **Connector choice may affect pricing. |
VPM2X-XX | VFL + Power Meter - Visual Fault Locator (650 nm) With 2.5 mm Universal adapter - Power Meter (GeX detector) With FOA-xx: Connector Adapter must be specified** **Connector choice may affect pricing. |
RF | Built-in Wi-Fi and Bluetooth Capability |
[Factory UPGRADE order code]: MAX-700B-RF-UPG - To upgrade a unit, after the original purchase/delivery, that REQUIRES TO BE RETURNED to one of EXFO's service center. - RMA is required before returning a unit. | |
Probe Options | Description |
FP410B-XX** | Digital Video Inspection Probe - NO Automated PASS-FAIL analysis - Triple Magnification - ConnectorMax2 Software [APC or UPC Bulkhead and Patchcord tips] **(-XX): APC or UPC must be specified Refer to FIP-400B product page for details. [Also including] - Software (on CD) - Instruction Manual (Soft Copy) - Certificate of Compliance (Hard Copy) - Compartmented plastic case for tips - GP-2175: Protective cap & cord assembly - GP-10-094: Soft pouch |
FP420B-XX** | Analysis Digital Video Inspection Probe - Automated PASS-FAIL analysis - Triple Magnification - Auto Center - ConnectorMax2 Software [Bulkhead and Patchcord tips] **(-XX): APC or UPC must be specified Refer to FIP-400B product page for details. [Also including] - Software (on CD) - Instruction Manual (Soft Copy) - Certificate of Compliance (Hard Copy) - Compartmented plastic case for tips - GP-2175: Protective cap & cord assembly - GP-10-094: Soft pouch |
FP430B-XX** | Automated Analysis Digital Video Inspection Probe - Automated Focus - Automated PASS-FAIL analysis - Triple Magnification - Auto Center - ConnectorMax2 Software [Bulkhead and Patchcord tips] **(-XX): APC or UPC must be specified Refer to FIP-400B product page for details. [Also including] - Software (on CD) - Instruction Manual (Soft Copy) - Certificate of Compliance (Hard Copy) - Compartmented plastic case for tips - GP-2175: Protective cap & cord assembly - GP-10-094: Soft pouch |
We are the biggest supplier for fiber optic equipments in China. We are agent for EXFO ,Fujikura, Sumitomo, Fitel, USA COMWAY, Anritsu, JDSU, YOKOGAWA, etc. We have at least one agent in every province of China. And we also have over 20 agents in the world for fiber optic equipments. We can supply all the fiber optic products for you with a competitive price. Hope to have a long-term cooperations with your company!
OTDR EXFO FTB-1 OTDR optical time-domain reflectometer

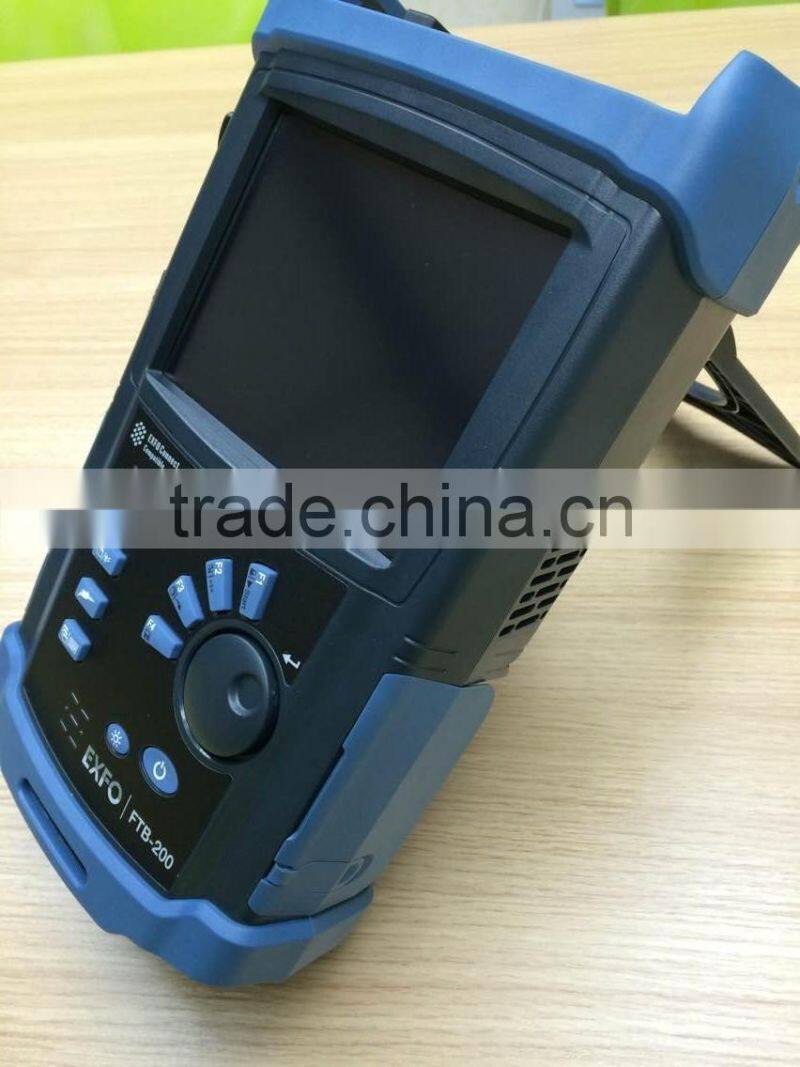

OTDR EXFO FTB-200 OTDR optical time-domain reflectometer
