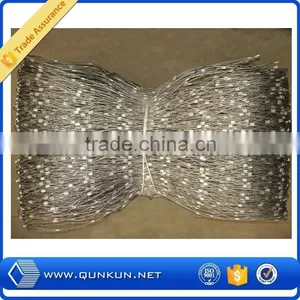

Help CenterStainless Steel Zoo Mesh/stainless Steel Rope Mesh
Related Products
-
Stainless Steel Wire Rope Fence MeshUS$ 0.28 - 28.38MOQ: 100 Square Meters -
High Quality Heavy Duty Steel Grating, Building Material(China Manufacture + ISO9001)US$ 6.9 - 11.2MOQ: 100 Square Meters
-
Stainless Steel Wire Rope Mesh NetUS$ 0.28 - 28.38MOQ: 100 Square Meters
-
Iron Wire Mesh for Sale,metal Cage,commercial CagesUS$ 25.5 - 95.5MOQ: 10 Sets
-
Stainless Steel Wire Rope Zoo Mesh for Protection or DecorationUS$ 0.28 - 28.38MOQ: 100 Square Meters
Stainless steel wire rope mesh
Specifications:
| Material: | 304, 316, 316L Stainless steel rope |
| Stainless steel rope size: | 7x7, 7x19 |
| Stainless steel rope diameter: | 3.6-39mm |
| Resistance to breaking force: | 0.63kn, 1.43kn, 2.55kn, 5.09kn, 9.04kn. |
| Mesh Size: |
50X50mm, 60X60mm, 75X75mm, 100X100mm, 120X120mm, 150X150mm, 180X180mm, 210X210mm |
| Angle: | 90° |
wire rope mesh information sheet:
| Wire Rope Construction | Wire Rope Diameter(mm) | Min.Breaking Load(KN) | Aperture 90°(mm) |
| 7*19 | 4 | 9.04 | 210*210 |
| 7*19 | 4 | 9.04 | 180*180 |
| 7*19 | 4 | 9.04 | 150*150 |
| 7*19 | 4 | 9.04 | 120*120 |
| 7*19 | 3 | 5.09 | 210*210 |
| 7*19 | 3 | 5.09 | 180*180 |
| 7*19 | 3 | 5.09 | 150*150 |
| 7*19 | 3 | 5.09 | 120*120 |
| 7*19 | 3 | 5.09 | 100*100 |
| 7*19 | 3 | 5.09 | 75*75 |
| 7*7 | 2 | 2.55 | 180*180 |
| 7*7 | 2 | 2.55 | 150*150 |
| 7*7 | 2 | 2.55 | 120*120 |
| 7*7 | 2 | 2.55 | 100*100 |
| 7*7 | 2 | 2.55 | 75*75 |
| 7*7 | 2 | 2.55 | 60*60 |
| 7*7 | 2 | 2.55 | 50*50 |
| 7*7 | 2 | 1.43 | 120*120 |
| 7*7 | 1.5 | 1.43 | 100*100 |
| 7*7 | 1.5 | 1.43 | 75*75 |
| 7*7 | 1.5 | 1.43 | 60*60 |
| 7*7 | 1.5 | 1.43 | 50*50 |
Wire rope photos:
Different surface treatment:
Applications:
Steel Wire Rope Accessories:
Hebei Qunkun Metal Product Co., Ltd is a premier manufacturer and supplier of wire mesh products located in Anping Town, the famous Wire Mesh Land of China. We have engaged in wire drawing, wire mesh weaving and metal fabricating for about ten years and have accumulated rich experiences in this field.
Our Products:
Qunkun offers the following products with complete specifications and good quality: Hexagonal wire netting, gabions, chain link fence, wire mesh fences, welded wire mesh, welded wire panels, expanded metal mesh, stainless steel wire mesh, Dutch woven wire cloth, galvanized square wire mesh, galvanized wire, insect screen, barbecue grill netting, razor wire, barbed wire and fencing accessories. Our products are widely used in petroleum, chemical, construction, textile, medicine, aviation, aerospace and other industries.
Qunkun has the expertise, the technical force, the advanced processing and inspection equipment, and the experience to establish good business relationship with world customers. Qunkun has adopted modern management system to ensure product quality and reasonable price.
Most of our wire mesh products are for export to Europe, the United States, the Middle East, Southeast Asia, and many other countries and regions. We can offer quality products at good price and timely delivery. Welcome to contact us.
