Home > Electrical & Electronics > Telecommunication & Broadcasting > Fiber Optic Equipment > Mini OTDR EXFO MAX-715B!!!

Mini OTDR EXFO MAX-715B!!!

Name: Mini OTDR EXFO MAX-715B!!!
Brand: EXFO
SKU: 108969897

US$ 3,000 - 4,000 MOQ: 1 Set

Key Specifications

Get Latest Price

Place of Origin:

Canada

Brand Name:

EXFO

Model Number:

MAX-715B

Contact Supplier Request Quote Chat Now

Shenzhen Hontek Co., Ltd.

6Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

Hongkong

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Canada

Brand Name EXFO

Model Number MAX-715B

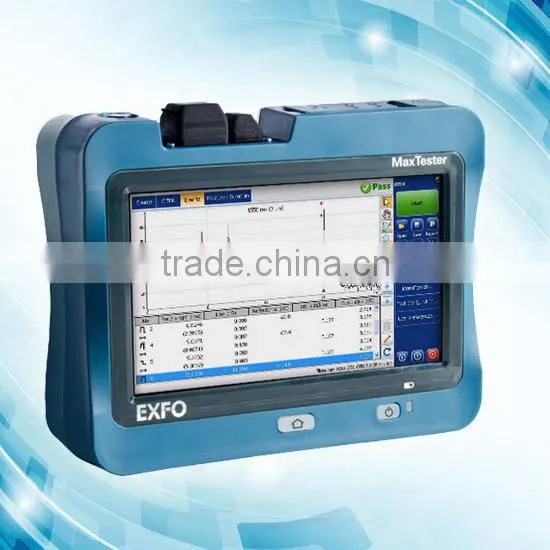

Mini OTDR EXFO MAX-715B!!! IN STOCK! HOT!

skype: honserv

KEY FEATURES:

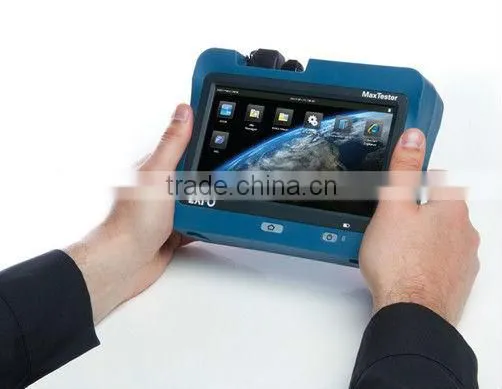

Handy, lightweight, powerful, tablet-inspired design

7-inch, outdoor-enhanced touchscreen – the biggest in
the handheld industry

12-hour autonomy

Dead zones: EDZ 1 m, ADZ 4 m
Dynamic range of 30/28/28 dB
Rugged design built for outside plant

iOLM-ready: intelligent and dynamic application that turns complex OTDR trace analysis into a one-touch task

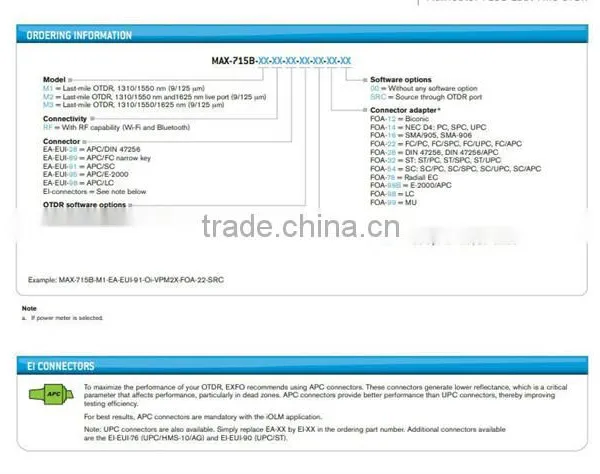

Models	Description
TK-MAX-715B-M1-XX	MAX-715B, Last Mile SM OTDR 1310/1550 nm, 30/28 dB (9/125 µm) Macrobend Finder, Linear view & Summary Screen Software Features - Display: 7" Color Touchscreen TFT - Memory: 2GB Internal - 2x USB 2.0 Interfaces - RJ-45 Built-In Interface [Note] ! iOLM-ready (APC only) ! GP-10-072 Carrying Case and GP-2207 Kickstand are included with all TK-MAX-700B Kits.
TK-MAX-715B-M2-XX	MAX-715B, Last Mile SM OTDR Port 1 : 1310/1550 nm, 30/28 dB (9/125 µm) Port 2 : Filtered 1625 nm, 28 dB (9/125 µm) Macrobend Finder, Linear view & Summary Screen Software Features - Display: 7" Color Touchscreen TFT - Memory: 2GB Internal - 2x USB 2.0 Interfaces - RJ-45 Built-In Interface [Note] ! iOLM-ready (APC only) ! GP-10-072 Carrying Case and GP-2207 Kickstand are included with all TK-MAX-700B Kits.
TK-MAX-715B-M3-XX	MAX-715B, Last Mile SM OTDR 1310/1550/1625 nm, 30/28/28 dB (9/125 µm) Macrobend Finder, Linear view & Summary Screen Software Features - Display: 7" Color Touchscreen TFT - Memory: 2GB Internal - 2x USB 2.0 Interfaces - RJ-45 Built-In Interface [Note] ! iOLM-ready (APC only) ! GP-10-072 Carrying Case and GP-2207 Kickstand are included with all TK-MAX-700B Kits.
TK-MAX-720B-M1-XX	MAX-720B, Access SM OTDR 1310/1550 nm, 36/34 dB (9/125 µm) Macrobend Finder, Linear view & Summary Screen Software Features - Display: 7" Color Touchscreen TFT - Memory: 2GB Internal - 2x USB 2.0 Interfaces - RJ-45 Built-In Interface [Note] ! iOLM-ready (APC only) ! GP-10-072 Carrying Case and GP-2207 Kickstand are included with all TK-MAX-700B Kits.
TK-MAX-730B-M1-XX	MAX-730B, FTTx/PON SM OTDR 1310/1550 nm, 39/37 dB (9/125 µm) Macrobend Finder, Linear view & Summary Screen Software Features - Display: 7" Color Touchscreen TFT - Memory: 2GB Internal - 2x USB 2.0 Interfaces - RJ-45 Built-In Interface [Note] ! iOLM-ready (APC only) ! GP-10-072 Carrying Case and GP-2207 Kickstand are included with all TK-MAX-700B Kits.
TK-MAX-730B-M2-XX	MAX-730B, FTTx/PON SM OTDR Port 1 : 1310/1550 nm, 39/37 dB (9/125 µm) Port 2 : Filtered 1625 nm, 37 dB (9/125 µm) Macrobend Finder, Linear view & Summary Screen Software Features - Display: 7" Color Touchscreen TFT - Memory: 2GB Internal - 2x USB 2.0 Interfaces - RJ-45 Built-In Interface [Note] ! iOLM-ready (APC only) ! GP-10-072 Carrying Case and GP-2207 Kickstand are included with all TK-MAX-700B Kits.
TK-MAX-730B-M3-XX	MAX-730B, FTTx/PON SM OTDR 1310/1550/1625 nm, 39/37/37 dB (9/125 µm) Macrobend Finder, Linear view & Summary Screen Software Features - Display: 7" Color Touchscreen TFT - Memory: 2GB Internal - 2x USB 2.0 Interfaces - RJ-45 Built-In Interface [Note] ! iOLM-ready (APC only) ! GP-10-072 Carrying Case and GP-2207 Kickstand are included with all TK-MAX-700B Kits.

Options	Description
PM2X-XX	Power Meter ONLY (GeX detector) With FOA-xx: Connector Adapter must be specified upon ordering > Price may vary depending on your Connector Adapter choice
VPM2X-XX	VFL + Power Meter - Visual Fault Locator (650 nm) With 2.5 mm Universal Adapter - Power Meter (GeX detector) With FOA-xx: Connector Adapter must be specified upon ordering > Price may vary depending on your Connector Adapter choice
RF	Built-in Wi-Fi and Bluetooth Capability
	MAX-700B-RF-UPG Factory UPGRADE order code [Notes] ! To upgrade a unit, after the original purchase/delivery, that REQUIRES TO BE RETURNED to one of EXFO's service center. ! RMA is required before returning a unit.

Probe Options	Description
FP410B-XX**	Digital Video Inspection Probe - NO Automated PASS-FAIL analysis - Triple Magnification - ConnectorMax2 Software [APC or UPC Bulkhead and Patchcord tips] **(-XX): APC or UPC must be specified Refer to FIP-400B product page for details. [Also including] - Software (on CD) - Instruction Manual (Soft Copy) - Quick reference guide (Hard Copy) - FIPT-BOX: Compartmented plastic case for tips - GP-2175: Protective cap & cord assembly - GP-10-094: Soft pouch
FP420B-XX**	Analysis Digital Video Inspection Probe - Automated PASS-FAIL analysis - Triple Magnification - Auto Center - ConnectorMax2 Software [APC or UPC Bulkhead and Patchcord tips] **(-XX): APC or UPC must be specified Refer to FIP-400B product page for details. [Also including] - Software (on CD) - Instruction Manual (Soft Copy) - Quick reference guide (Hard Copy) - FIPT-BOX: Compartmented plastic case for tips - GP-2175: Protective cap & cord assembly - GP-10-094: Soft pouch
FP430B-XX**	Automated Analysis Digital Video Inspection Probe - Automated Focus - Automated PASS-FAIL analysis - Triple Magnification - Auto Center - ConnectorMax2 Software [APC or UPC Bulkhead and Patchcord tips] **(-XX): APC or UPC must be specified Refer to FIP-400B product page for details. [Also including] - Software (on CD) - Instruction Manual (Soft Copy) - Quick reference guide (Hard Copy) - FIPT-BOX: Compartmented plastic case for tips - Compartmented plastic case for tips - GP-2175: Protective cap & cord assembly - GP-10-094: Soft pouch

Base Software
Options	Description
OTDR	OTDR Base Software - OTDR features for Macrobend detection, Linear View and Summary screen [Notes] ! OTDR base software will be the one included by Default if no base software is specified when ordering.
iOLM	Intelligent Optical Link Mapper Base Software [Notes] ! OTDR base software will be the one included by Default if no base software is specified when ordering. IMPORTANT - iOLM will be delivered with an APC interface. APC interface on an iOLM and OTDR ensures maximum measurement efficiency. UPC connectors are prone to be highly reflective if dirty or worn. Reflectance of the unit connector will dramatically limit the performance of the measurement. Worn UPC will create a permanent degradation of the unit capabilities until the output connector is replaced. APC interface can handle wearing and dirt without being highly reflective. Testing a UPC network doesn’t require a UPC OTDR, simply use a APC-UPC test jumper .
	Oi2 Remote UPGRADE order code Convert your existing OTDR into an iOLM only module. [Notes] ! Available for EA iOLM-ready only modules. ! For EI or non-iOLm-ready modules, refer to the product page for factory upgrade code with Oi application (OTDR+iOLM). Our main products: 1. Fusion splicer: Sumitomo (type-66/-81c/z1c) Fujikura (fsm-60s/60r/70r/80s) Fitel (S178A/S199M12) Chinese fusion splicer (HSV6000) 2. OTDR: EXFO (axs-100/110,ftb-1/200/500), JDSU (mts-2000/4000/6000/8000) YOKOGAWA (AQ7275) Ethernet tester: AXS-200/610/630/635/805/850/855) 3. Power meter (PPM-350c, FPM-300, HSV300P) Light source (fls-300, HSV-300L) VFL (fls-240, HSV-321) Multi Loss tester (FOT-930, FOT-302) 4. Anritsu site master S331L, S331E, S332E. 5. Fiber cleaver (CT-30(A)/FC-6S), adapter, battery, electrode, connector, fiber tool kits 6. Fiber cable, patch cord, splice protector, adapter, closure, pigtail, optical switch, patch panel, etc.. 7. Maintenance and repair, calibration service for the EXFO, Sumitomo, Fujikura, Anritsu. Be free to contact JIM ZHENG if any questions, You can also log onto for more information!
