Touch Screen!!can Change Module!! OTDR FTB-1 WITH FTB-720

Name: Touch Screen!!can Change Module!! OTDR FTB-1 WITH FTB-720
Brand: EXFO
SKU: 108969933
Availability: InStock

US$ 4,200 - 6,000 MOQ: 1 Set

Key Specifications

Place of Origin:

Canada

Brand Name:

EXFO

Model Number:

FTB-1

Shenzhen Hontek Co., Ltd.

5Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

Hongkong

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Canada

Brand Name EXFO

Model Number FTB-1

OTDR FTB-1 WITH FTB-720 SM OTDR OR MM/SM OTDR PRICE

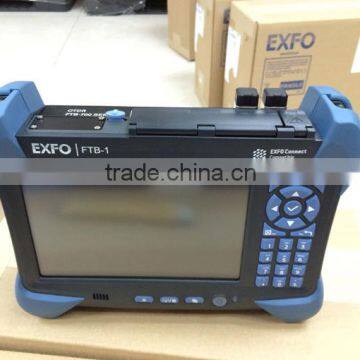

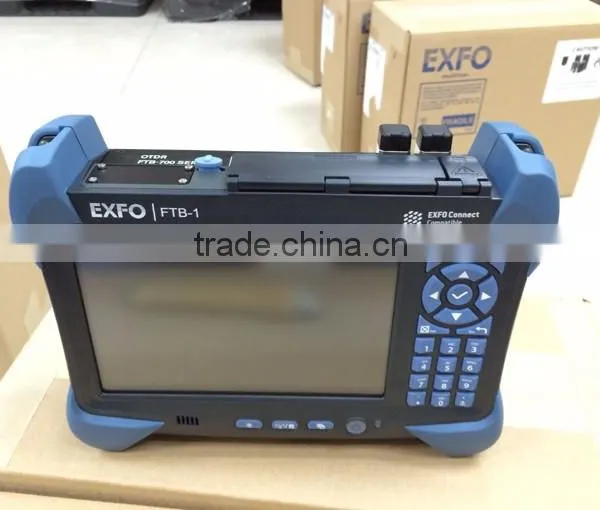

1.EXFO OTDR FTB-1
2.FTB-1/720/730/860
3.Touch screen,can change module
4.IN STOCK!

EXFO TK-1-700 OTDR in stock (EXFO FTB-1 WITH FTB-730-23B OTDR )

The FTB-1 Platform is a modular platform optimized for fast, powerful, dedicated FTTH and
Ethernet test applications

The FTB-1 Platform is a modular platform optimized for fast, powerful, dedicated FTTH and Ethernet test applications

Features:

USB, mobile, Wi-Fi and Bluetooth connectivity capabilities
Supports third-party applications and all the tools that enable technicians to complete their work right in the field
Lets you take advantage of the EXFO Connect environment to manage fi eld testing/reporting operations as well as your platform pool
Intel ATOM processor with Windows Embedded Standard operating system, for optimized productivity and versatility
Latest battery technology for unmatched operation autonomy
One GigE port and two USB 2.0 ports
Windows Remote Assistance and Remote Control
EXFO fiber inspection probe connector interface

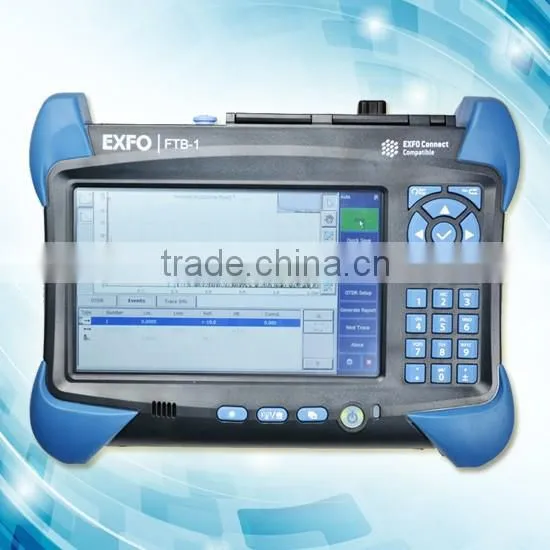

Display: TFT outdoor-enhanced LCD, 7-inch touchscreen
Telcordia-compliant

Specifications:

Display	Touchscreen, color, 800 x 480 TFT, 178 mm (7 in)
Interfaces	Two USB 2.0 ports RJ-45 LAN 10/100/1000 Mbit/s Fiber inspection probe connector port (video) Built-in Bluetooth and Wi-Fi (optional)
Storage	8 GB internal memory (flash) 16 GB internal memory (flash), optional

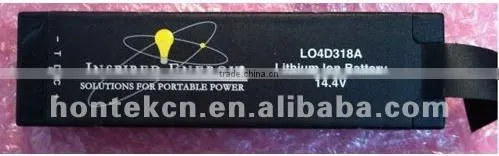

Batteries	Rechargeable lithium-ion batteries 8 hours of operation as per Telcordia* (Bellcore) TR-NWT-001138
Power supply	AC/DC adapter, input 100-240 VAC, 50-60 Hz, 2 A max, output 24 VDC, 90 W
Computer	Intel ATOM processor Windows Embedded Standard operating system
Size (H x W x D)	190 mm x 252 mm x 66 mm (7 1/2 in x 9 15/16 in x 2 5/8 in)
Weight(with battery)	1.5 kg (3.3 lb)
Temperature	Operating 0°C to 50°C Storage -40°C to 70°C
Relative humidity	0 % to 95 % non-condensing

PM-200 BUILT-IN POWER METER SPECIFICATIONS
Calibrated wavelengths (nm)	850, 1300, 1310, 1490, 1550, 1625, 1650
Optional CWDM calibrated wavelengths (nm)	1270, 1290, 1310, 1330, 1350, 1370, 1390, 1410, 1430, 1450, 1470, 1490, 1510, 1530, 1550,1570, 1590, 1610, 1383, 1625
Power range (dBm)	10 to -86 (InGaAs)
Uncertainty (%)	±5 % ± 3 pW (InGaAs)
Display resolution (dB) InGaAs	0.01 = max to - 76 dBm 0.1 = - 76 dBm to - 86 dBm 1 = - 86 dBm to min
Automatic offset nulling range	Max power to - 63 dBm for InGaAs
Tone detection (Hz)	270/1000/2000
VISUAL FAULT LOCATOR (VFL) (OPTIONAL)
Laser	650 nm ± 10 nm
Typical Pout	in 62.5/125 μm: 3 dBm (2 mW)

Modules:

FTB-720-000-04B	FTB-720-000-04B-XX, SM OTDR Module, Filtered 1625 nm, 34 dB (9/125 µm) for live fiber testing
FTB-720-023B-04B	FTB-720-023B-04-XX, SM OTDR Module Port 1 : 1310/1550 nm, 36/34 dB (9/125 µm) Port 2 : Filtered 1625 nm, 34 dB (9/125 µm) for live fiber testing
FTB-720-023B	FTB-720-023B-XX, SM OTDR Module, 1310/1550 nm, 36/34 dB (9/125 µm)
FTB-720-12CD	FTB-720-12CD-XX, MM OTDR Module, 850/1300 nm, 27/26 dB (50/125 & 62.5/125 µm)
FTB-720-12CD-23B	FTB-720-12CD-23B-XX-XX, MM/SM OTDR Module, 850/1300/1310/1550 nm, 27/26/36/34 dB (MM: 50/125 & 62.5/125 µm - SM: 9/125 µm)
FTB-730-000-04B	FTB-730-000-04B-XX, SM OTDR Module, Filtered 1625 nm, 39 dB (9/125 µm) for live fiber testing with in-line power meter (one broadband channel)
FTB-730-000-08B	FTB-730-000-08B-XX, SM OTDR Module, Filtered 1650 nm, 37 dB (9/125 µm) for live fiber testing
FTB-730-023B-04B	FTB-730-023B-04-XX, SM OTDR Module Port 1 : 1310/1550 nm, 39/37 dB (9/125 µm) Port 2 : Filtered 1625 nm, 39 dB (9/125 µm) for live fiber testing with in-line power meter (one broadband channel)
FTB-730-023B	FTB-730-023B-XX, SM OTDR Module, 1310/1550 nm, 39/37 dB (9/125 µm)
FTB-730-034B	FTB-730-034B-XX, SM OTDR Module, 1550/1625 nm, 37/37 dB (9/125 µm)
FTB-730-236B	FTB-730-236B-XX, SM OTDR Module, 1310/1490/1550 nm, 39/35/37 dB (9/125 µm)
