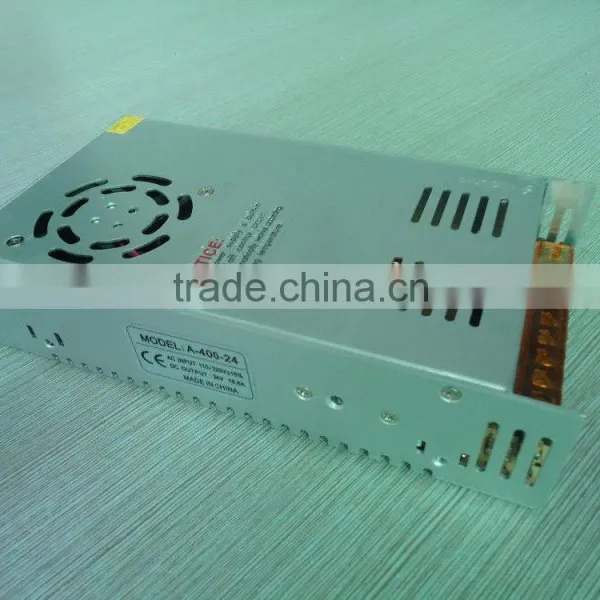

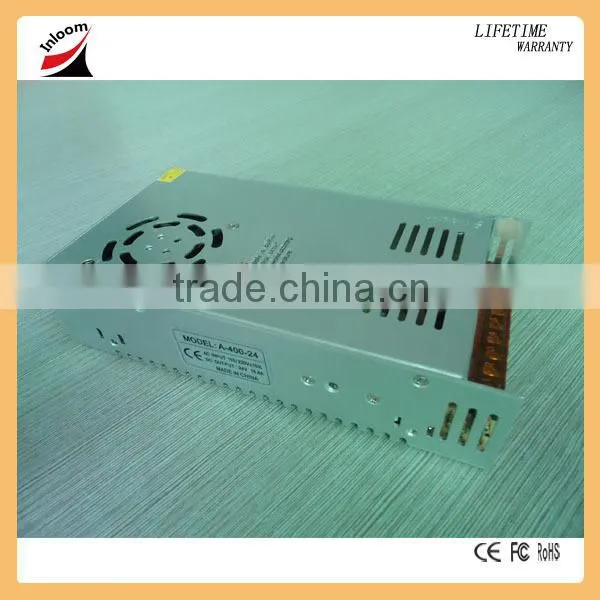

s 400 24 ac dc 400w Led Power Supply 24v Switching Power Supply
US$ 8 - 16
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
ILM
Model Number:
ILMSP-050
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
5v 2.4a 12w Constant Voltage LED Power Supply for LED Strips,display With CE,ROHS ApprovedUS$ 3 - 16MOQ: 1 Piece -
5v 4.8a 24w Constant Voltage LED Power Supply for LED Strips,display With CE,ROHS ApprovedUS$ 3 - 16MOQ: 1 Piece
-
5v 7.6a 38w Constant Voltage LED Power Supply for LED Strips,display With CE,ROHS ApprovedUS$ 3 - 16MOQ: 1 Piece
-
5v 10a 50w Constant Voltage LED Power Supply for LED Strips,display With CE,ROHS ApprovedUS$ 3 - 16MOQ: 1 Piece
-
5v 12a 60w Constant Voltage LED Power Supply for LED Strips,display With CE,ROHS ApprovedUS$ 3 - 16MOQ: 1 Piece
Place of Origin
Guangdong, China
Brand Name
ILM
Model Number
ILMSP-050
Output Power
301 - 400W
Output Type
Single
Input Voltage
Other, 110V-240VAC
Output Voltage
5-48VDC
Output Frequency
50/60HZ
Output Current
80A max.
1. 3 years warranty
2. 85~264VAC full range of input or input select by switch
3. Low cost, High operating reliability at high temperature
4. Forced air cooling by built in DC fan
5. Protections: Over-load, over-voltage, over-current, over-temperature, short circuit protections
Over-load protection: Max.150% (Fold back current limiting, recover automatically after problems removal)
Over voltage protection: Max.135% (Hiccup mode, recovers automatically after faulty problems removal)
6. LED indicator for power on
7. 100% burn-in tests (at full load)
8. Built-in cooling Fan ON-OFF control
9. Suitable for many types of LED lights, LED electronics screen, Industrial control products, instruments & equipements, safety-guard products, advertisements.
10.Life span: greater than 50000hrs
11.MTBF:greater than 250Khrs
12.Withstand voltage: I/P-O/P: 3KVAC, IP-FG:1.5KVAC, DC-FG: 500VAC
13.Working temperature: -10~60°C
| Model | ILM-12 | ILM-13.5 | ILM-15 | ILM-24 | ILM-48 |
| Rated output | 12VDC/33.3A | 13.5VDC/29.63A | 15VDC/26.67A | 24VDC/16.67A | 48VDC/8.33A |
| Rated power | 400W | 400W | 400W | 400W | 400W |
| Efficiency | 76% | 79% | 81% | 81% | 83% |
