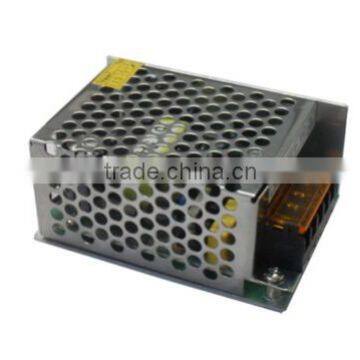

5v 4.8a 24w Constant Voltage LED Power Supply for LED Strips,display With CE,ROHS Approved

5v 4.8a 24w Constant Voltage LED Power Supply for LED Strips,display With CE,ROHS Approved thumbnail-1
5v 4.8a 24w Constant Voltage LED Power Supply for LED Strips,display With CE,ROHS Approved thumbnail-2
5v 4.8a 24w Constant Voltage LED Power Supply for LED Strips,display With CE,ROHS Approved thumbnail-3
5v 4.8a 24w Constant Voltage LED Power Supply for LED Strips,display With CE,ROHS Approved photo-1
5v 4.8a 24w Constant Voltage LED Power Supply for LED Strips,display With CE,ROHS Approved photo-2
5v 4.8a 24w Constant Voltage LED Power Supply for LED Strips,display With CE,ROHS Approved photo-3
US$ 3 - 16 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
ILM
Model Number:
ILMS-24-5
Contact Supplier Request Quote Chat Now
Shenzhen Inloom Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name ILM
Model Number ILMS-24-5
Output Power 1 - 50W
Output Type Single
Input Voltage Other, 110V-240VAC
Output Voltage 5-48VDC
Output Frequency 50/60HZ
Output Current 80A max.

Product Description

5v 4.8a 24w constant voltage LED power supply for LED strips,display with CE,ROHS approved



Model S-24-5 S-24-12 S-24-24 S-24-36 S-24-48
OUTPUT DC output voltage 5V 12V 24V 36V 48V
Rated output current 4.8 2 1 0.67 0.5
Wave and noise 100mVp-p 100mVp-p 100mVp-p 100mVp-p 100mVp-p
Intet stability ±0.5% ±0.5% ±0.5% ±0.5% ±0.5%
Load stability ±1% ±1% ±0.5% ±0.5% ±0.5%
Efficiency 80% 81% 83% 83% 83%
INPUT AC voltage range 85~264VAC 47~63Hz full range of input or input select by switch
AC inrush current Cold-start current 30A/250V
PROTECTION Overload  Max.150% (Fold back current limiting, recover automatically after problems removal)
Over voltage Max.135% (Hiccup mode, recovers automatically after faulty problems removal)
Short circuit  Hiccup mode, recovers automatically after fault condition is removed
ENVIRONMENT Setup rise hold up time 100ms 60ms/230VAC at full load
Withstand voltage I/P-O/P: 3KVAC, IP-FG:1.5KVAC, DC-FG: 500VAC
Isolation resistance Input and output internal:Input and enclosure,Output and enclosure:500VDC/100MΩ
Working temperature and humidity -10~+50°C
Store temperature and humidity -20~+85°C, 10~95%RH
OTHER Overall dimension 85*58*38mm
Weight 0.14KG
CERTIFICATE CE EMC Authenticate EN55022:2010 EN61000-3-2:2006+AL:2009 EN61000-3-3:2008
EN55024:2010 EN55015:2006+AL2007+2009 EN61547:2009
EMC CE LVD Authenticate EN61347-1:2008T A1:2001 EN61347-2-13:2006
EN60950-1:2006+A11:2009+A1:2010+A12:2001
ROHS Authenticate EPA3050B:1996 EN1122B:2001 EPA3052:1996 EPA3060A:1996
EPA7196A:1992 EPA3540C:1996 EPA8270D:2007 IEC62321:2008

 5v 4.8a 24w constant voltage LED power supply for LED strips,display with CE,ROHS approved5v 4.8a 24w constant voltage LED power supply for LED strips,display with CE,ROHS approved



Packaging & Shipping

 inter white box then outer carton

delivery after receive client payment 2-25 days.



Company Information

 5v 4.8a 24w constant voltage LED power supply for LED strips,display with CE,ROHS approved5v 4.8a 24w constant voltage LED power supply for LED strips,display with CE,ROHS approved

project case

5v 4.8a 24w constant voltage LED power supply for LED strips,display with CE,ROHS approved

FAQ

 Q1: Are you manufacturer or trading company?
A1: We are the real manufacturer which focus on power supply & Led driver,but not the trading factory for different kind of product.



Q2: What is the Warranty for your product?
A2: We are the only power supply manufacture can provide 3 years warranty,the failed items can be repalced with the new order no matter when you buty them,so you don't need to worry about the quality problem if cooperate with us.



Q3: What is your company advantage?
A3:We have the industry's top R & D strength, can provide customers with a variety of unusual solutions,
customized development of the high difficulty of the power and charger products



Q4: What kind of payment term do you accpet?
A4: T/T,L/C,Paypal,Western Union,MoneyGram,Escrow,O/A.



Q5: What is your MOQ?
A5:The MOQ can be only 1PCS.



Q6: What's your Lead time?
A6: The delivery time is 1~25 days which depend on detail item and quantity.



Q7: Do you accept OEM?
A7: Yes.



Q8: Can we be your distributor?
A8: Yes,if your annuals sales much more than our other customers in your market that you can be our distributor



Q9: How to contact you?
A9:  Skype:alicexlyang
      What's app:+86-13316807590
      We chat:13316807590
      Tel:86-755-84728277
      Mobile:86-13428731877
