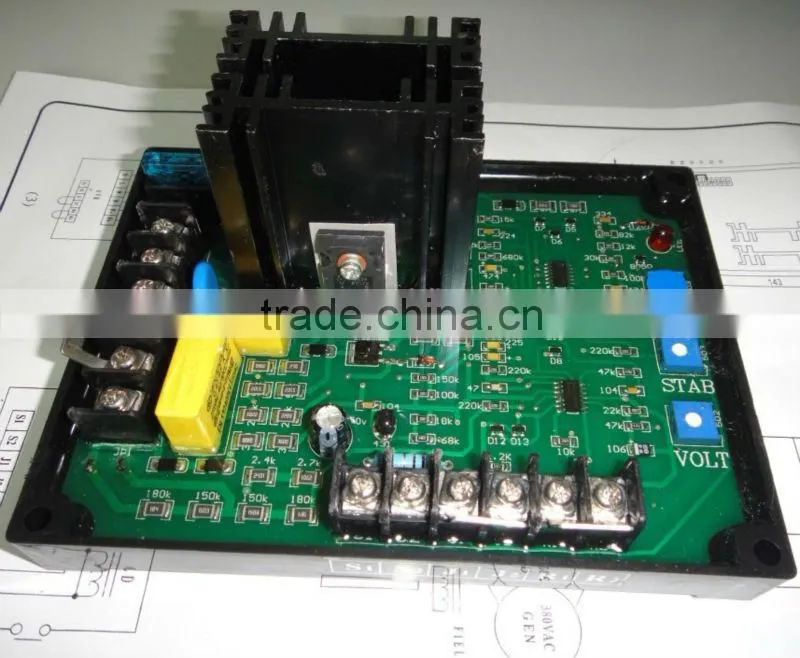

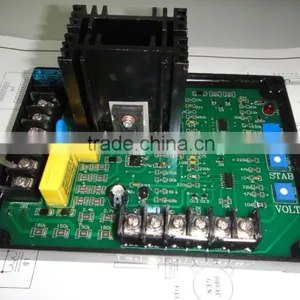

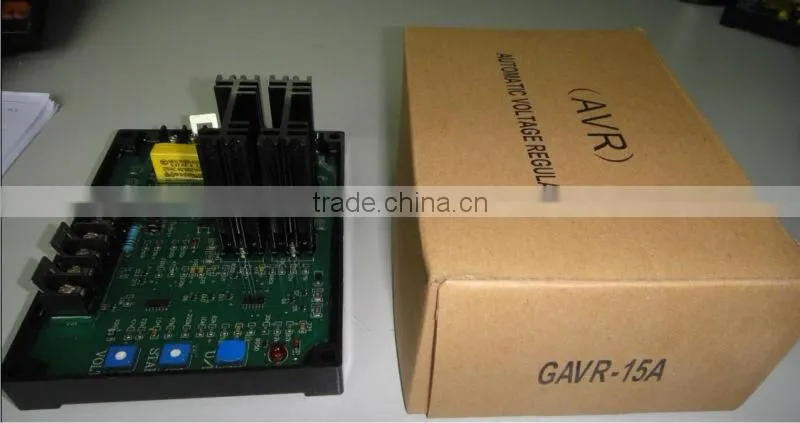

Good Quality GAVR-15A for Generator
Specifications
High qualityCompetitive price
Fast delivery
Good reputation
Best after service
Specifications
GAVR-15A
petitive price with good quality
2.Supply from Stock
3.ISO9001 CERTIFICATED
1.Generator AVR GAVR-15A
GAVR-8A is A Universal 15 Amp 1/2 Wave Self Excited Dip-Switch Programmalbe Automatic Voltage Regulator.
2.GAVR-15A Technical specification
< 0.5% Regulation
220/400 VAC Programmable Input
Rugged Compact Design
With Under Frequency Protection
Soft Start Voltage Ramping
EMI Suppression
Built-in Hihg Capacity 15Amp Fuse
SPECIFICATION:
Sensinginput |
Voltage |
220/400VAC,1 phase 2wire |
VoltageBuild-up |
Residualvolts at AVR teminal>5VAC |
Power Input |
Voltage |
180-240VAC,1 phase2wire |
External Vdits Adjustment |
±7%with 1k Ω1wait trimmer |
Output |
Voltage |
Max.90VDC@240V ACinput |
Sotf Start Ramp Time |
3sec. |
|
Current |
Continuous 6A |
Unit Power Dissipation |
Max.8Watt |
|
|
Intermittent 12A for 10SEE |
EMI Suppression |
Intermal Electromagnetic Interference Filtering |
|
Resistance |
Min.10Ω Max.100Ω |
Thermal.Drift |
0.05%per°C chage in AVR ambient |
|
|
|
Under Frequency Protection |
60Hzsystem presets knee pointat 57Hz |
|
|
|
(Factory Settings) |
50Hzsystem presets knee point at 47Hz |
Volts |
Regulation<±0.5%(with 4%engine goveming |
|||
