Home > Industrial Equipment & Components > Power & Generating Sets > Generator Parts & Accessories > Generator AVR-SX460

Generator AVR-SX460

Name: Generator AVR-SX460
Brand: WONYOUNG
SKU: 108969059
Availability: InStock

US$ 1 - 150 MOQ: 20 Pieces

Key Specifications

Get Latest Price

Place of Origin:

Fujian, China

Brand Name:

WONYOUNG

Model Number:

AVR-SX460, SX460

Contact Supplier Request Quote Chat Now

Fuan Wonyong Electrical Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

FUZHOU

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Fujian, China

Brand Name WONYOUNG

Model Number AVR-SX460, SX460

Specifications

Generator AVR SX460
petitive price with good quality
2.Supply from Stock
3.Necessary technical service

Specifications

Generator AVR SX460
petitive price with good quality
2.Supply from Stock
3.Necessary technical service

Generator AVR SX460
petitive price with good quality
2.Supply from Stock
3.Necessary technical service

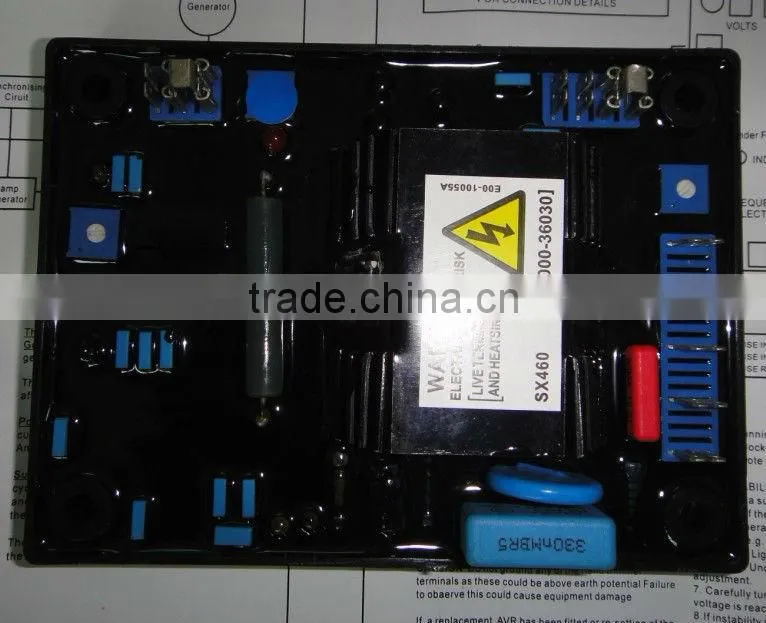

1.Generator AVR SX460

SX460 is a harlf-wave phase-controlled thyristor type Automatic Voltage Regulator(avr)and forms parts of the excitation system for a brushless generator.

2.SX460 Technical specification:

Technical specification
input
voltage	Voltage Jumper selectable 95-132V ac or 190-264V ac
frequency	50-60 Hz nominal
phase	1
wire	2
output
voltage	Max 90V dc at 207V ac input
Current	Continuous 4 A dc Intermittent 6A for 10 secs
resistance	15 ohms minimum
regulation	+/- 1.0% (see note 1)
Thermal drift	0.05% per deg. C change in AVR ambient (note 2)
Typical system response
AVR response	20 ms
Filed current to 90%	80 ms
Machine volts to 97%	300ms
External voltage adjustment	+/- 10% with 1 k ohm 1 watt trimmer(see note 3)
Under frequency protection
Set point	95% Hz(see note 4)
slope	170% down to 30 Hz
Unit power dissipation	12 watts maximum
Build up voltage	4 volts @ AVR terminals
