Home > Electrical & Electronics > Power Supply & Distribution > Switching Power Supply > 85W Dual Output Voltage Switching Power Supply

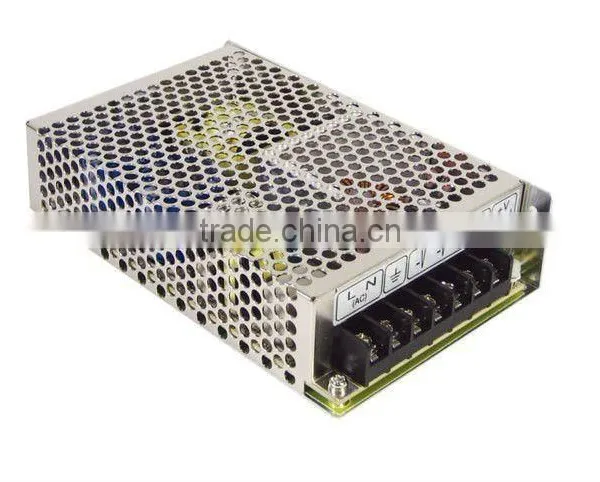

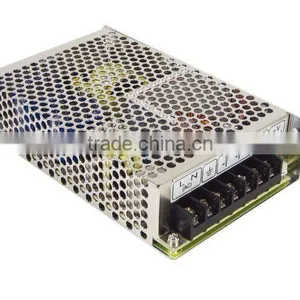

85W Dual Output Voltage Switching Power Supply

US$ 8 - 9 MOQ: 1000 Pieces

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

ILM

Model Number:

ILMSP-029

Contact Supplier Request Quote Chat Now

Shenzhen Inloom Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name ILM

Model Number ILMSP-029

Output Power 51 - 100W

Output Type Dual

Input Voltage Other, 110V-240VAC

Output Voltage 5/12VDC 5/24VDC

Output Frequency 50/60HZ

Output Current 15A 2A/15A 1A

Specifications

1.3 years warranty
2. Low cost, High operating reliability
3.Full range of input
4.Protections:OVP,OIP,OCP,OTP

1. 3 years warranty

2. 85~264VAC full range of input or input select by switch

3. Low cost, High operating reliability at high temperature

4. Forced air cooling by built in DC fan

5. Protections: Over-load, over-voltage, over-current, over-temperature, short circuit protections

Over-load protection: Max.150% (Fold back current limiting, recover automatically after problems removal)

Over voltage protection: Max.135% (Hiccup mode, recovers automatically after faulty problems removal)

6. LED indicator for power on

7. 100% burn-in tests (at full load)

8. Built-in cooling Fan ON-OFF control

9. Suitable for many types of LED lights, LED electronics screen, Industrial control products, instruments & equipements, safety-guard products, advertisements.

10.Life span: greater than 50000hrs

11.MTBF:greater than 250Khrs

12.Withstand voltage: I/P-O/P: 3KVAC, IP-FG:1.5KVAC, DC-FG: 500VAC

13.Working temperature: -10~60°C

Model	ILM-85A-1		ILM-85B-1
Rated DC Output	5VDC	12VDC	5VDC	24VDC
Rated Current (	8A	4A	8A	2A
Rated Power	88W		88W
Input Voltage	85~264 VAC/ 47~63 Hz
Over-load Protection	135% (Fold back current limiting, recover automatically after problems removal)
Over-Voltage Protection	130% (Hiccup mode, recovers automatically after faulty problems removal
Efficiency	73%		75%
Life Span	50000hrs
MTBF	250Khrs
Withstand Voltage	I/P-O/P: 3KVAC, IP-FG:1.5KVAC, DC-FG:500VAC
Working-Temperature	-10~60°C
Vibration	10-500Hz, 2G 10min./1cycle, period for 60min, each along x, y, z axes.
Size (LWH)	1559738mm
Packing	0.6Kg/pcs, 24pcs/CTN
