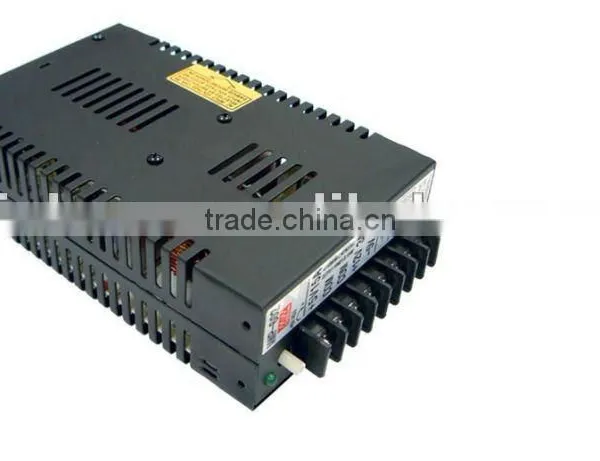

104W Triple Output Voltage Switching Power Supply

104W Triple Output Voltage Switching Power Supply thumbnail-1
104W Triple Output Voltage Switching Power Supply photo-1
US$ 40 - 41 MOQ: 1000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
ILM
Model Number:
ILMSP-028
Contact Supplier Request Quote Chat Now
Shenzhen Inloom Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name ILM
Model Number ILMSP-028
Output Power 101 - 200W
Output Type Triple
Input Voltage Other, 110V-240VAC
Output Voltage 5/15/-15VDC 5/12/24VDC
Output Frequency 50/60HZ
Output Current 10A 2A 1.25A

Specifications

1.Universal AC input/90-260VAC
2.Short circuit/over load protections
3.Cooling by free air convection
4. 3years warranty

1. 3 years warranty
2. 85~264VAC full range of input or input select by switch
3. Low cost, High operating reliability at high temperature
4. Forced air cooling by built in DC fan
5. Protections: Over-load, over-voltage, over-current, over-temperature, short circuit protections
Over-load protection: Max.150% (Fold back current limiting, recover automatically after problems removal)
Over voltage protection: Max.135% (Hiccup mode, recovers automatically after faulty problems removal)
6. LED indicator for power on
7. 100% burn-in tests (at full load)
8. Built-in cooling Fan ON-OFF control
9. Suitable for many types of LED lights, LED electronics screen, Industrial control products, instruments & equipements, safety-guard products, advertisements.
10.Life span: greater than 50000hrs
11.MTBF:greater than 250Khrs
12.Withstand voltage: I/P-O/P: 3KVAC, IP-FG:1.5KVAC, DC-FG: 500VAC
13.Working temperature: -10~60°C
Model ILM-104T-1
Rated DC Output 5VDC 12VDC 24VDC
Rated Current 10A 2A 1.25A
Rated Power 104W
Input Voltage 85~132 VAC/170~264VAC 47~63 Hz
Over-load protection 150% (Fold back current limiting, recover
automatically after problems removal)
Over-VoltageProtection 130% (Hiccup mode, recovers automatically after faulty problems removal
Efficiency 77%
Life Span 50000hrs
MTBF 250Khrs
Withstand Voltage I/P-O/P: 3KVAC, IP-FG:1.5KVAC, DC-FG:500VAC
Working-Temperature -10~60°C
Vibration 10-500Hz, 2G 10min./1cycle, period for 60min,
each along x, y, z axes.
Size (L*W*H) 199*110*50mm
Packing 0.83Kg/pcs, 22pcs/CTN
Model ILM-104T-1
Rated DC Output 5VDC 12VDC 24VDC
Rated Current 10V 2V 1.25V
Rated Power 104W
Input Voltage 85~132 VAC/170~264VAC 47~63 Hz
Over-load protection 150% (Fold back current limiting, recover
automatically after problems removal)
Over-VoltageProtection 130% (Hiccup mode, recovers automatically after
faulty problems removal
Efficiency 77% 79%
Life Span 50000hrs
MTBF 250Khrs
Withstand Voltage I/P-O/P: 3KVAC, IP-FG:1.5KVAC, DC-FG:500VAC
Working-Temperature -10~60°C
Vibration 10-500Hz, 2G 10min./1cycle, period for 60min,
each along x, y, z axes.
Size (L*W*H) 203*115*50mm
Packing 0.9Kg/pcs, 16pcs/CTN
