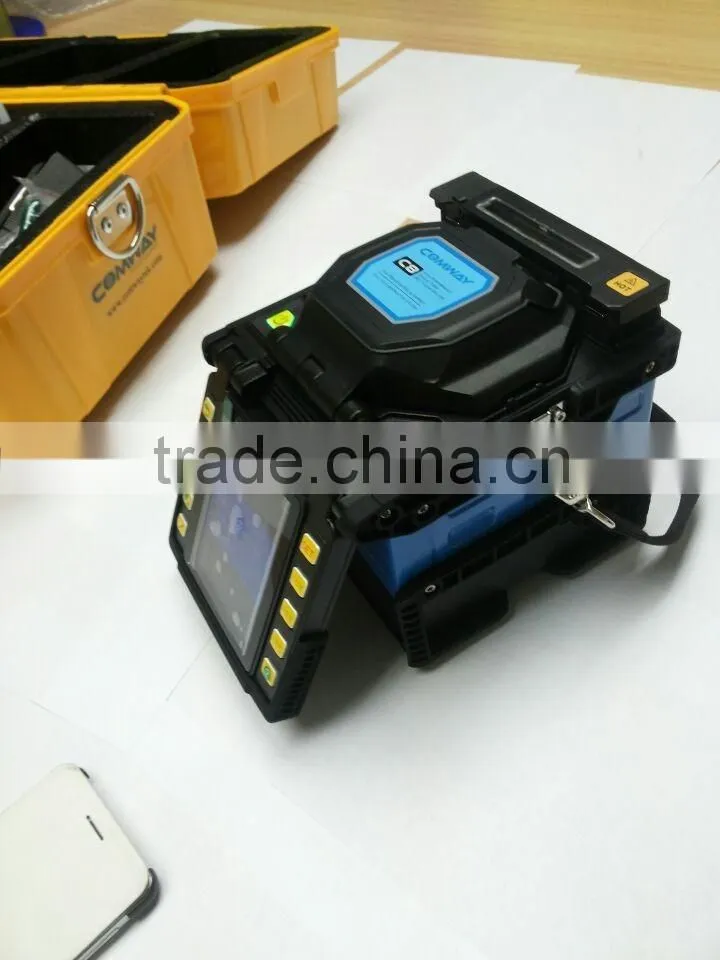

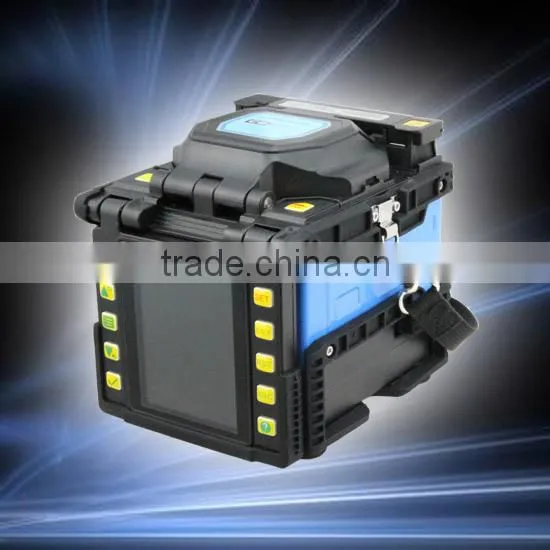

USA brand COMWAY Fusion Splicer
welcome to discuss the cooperation issue!!
Nancy Liu
whatsapp/ Viber / Tel : +86 15118174252
skype: nancy.hsv
Feature:
Core-to-Core alignment system
Splicing 6 sec., heating 25 sec.
Fast boot technology
More than 300 times splicing and heating
Resist dust, rain, wind, and shock
Fiber type identify, AUTO splicing mode
Easy to change electrode and fiber holder
High speed USB, maintenance via the Internet
Size & Weight |
D156×W135×H149(mm), 2.0kg without battery, 2.5kg with 7800mAh |
Fiber alignment |
6 motors core alignment |
Fiber type |
SM(ITU-T G.652), MM(ITU-T G.651), DS(ITU-T G.653), NZ/NZDS(ITU-T G.655), BI(ITU-T G.657) |
Splice mode |
Single fiber |
Fiber diameter |
Cladding diameter 80~150µm, coating 100~1000µm |
Cleave length |
250µm cladding diameter 8~16mm, over 250µm cladding diameter 16mm |
Splicing programs |
Max. 100 |
Splicing cycle time |
6 sec. SM-SM Fast program, 12 sec. AUTO program |
Heating programs |
Max. 30 |
Heating cycle time |
Adjustable, 25 sec. typical |
Splice protector |
10 ~ 60mm |
Splice image capture |
Max. 30 |
Splice data storage |
Max. 3000 |
Splice loss |
SM:0.02dB, MM:0.01dB, DS:0.04dB, NZ/NZDS:0.04dB, BI:0.02dB |
Return loss |
>>60dB |
Loss estination |
Provided |
Operation condition |
Altitude 0~5000m, Humidity 0~95%,Temperature,-10~+50°C, Wind velocity up to 15m/s |
Storage condition |
Humidity 0~95%, Temperature -40~+80°C (Battery -10~+40°C) |
Tension |
1.96~2.25N |
Fiber view |
Two cameras observation, 4.1 inch color screen |
Fiber magnification |
300x fo X or Y single axis view, 180x for both X&Y dual axis view |
Port |
High speed USB, used for PC software connection and firmware upgrade |
Electrode life |
3500 arc discharges |
Power supply |
AC100-240V, 50/60Hz |
Battery module |
7800mAh High capacity battery, more than 300 times splicing and heating |

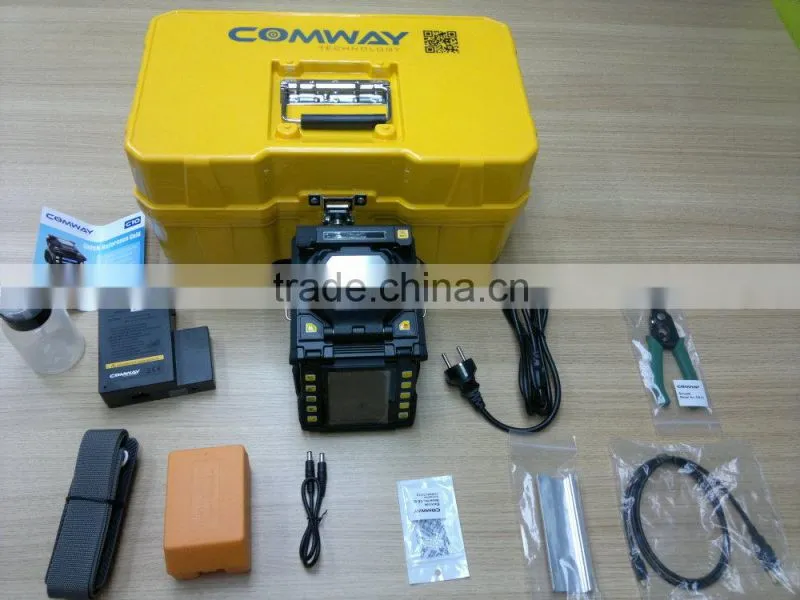

standard accessories:
1. C10 main body
2. High capacity battery
3. AC adapter
4. Extra electrode
5. Cooling tray
6. AC adapter cable
7. DC adapter cable
8. USB cable
9. Hand strap
10. Shoulder strap
11. Carrying case
1. FUSION SPLICER: Comway C10; Sumitomo (T-81C); Fujikura (FSM-80S/70S/70R); Fitel S178A; INNO IFS 10 2.OTDR: EXFO (FTB-1/AXS-110/AXS-100/ FTB-200/FTB-500); JDSU (MTS-2000/4000/6000/8000); YOKOGAWA (AQ1200/AQ7275)
3. POWER METER (PPM-350C, FPM-300, HSV-300P); LIGHT SOURCE (FLS-300, HSV-300L); VFL (FLS-241, HSV-321); Multi Loss tester (FOT-930, FOT-302)
4. Anritsu site master S331D, S331L, S331E, S332E.
5. Fiber cleaver (CT-30A/CT-30/CT-05/FC-6S), adapter, battery, electrode, connector, fiber tool kits
6. Fiber cable, patch cord, adapter, closure, pigtail, optical switch, patch panel, etc..
7.Maintainance and repair, calibration service for the EXFO, JDSU, Sumitomo, Fujikura, Anritsu
