Japan Fujikura 70s fusion splicer with CT-06 cleaver BTR-09 battery  price

Japan Fujikura 70s fusion splicer with CT-06 cleaver BTR-09 battery price

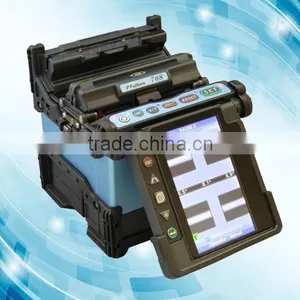

The 70S is core-to-core alignment single fiber splicer succeeding to FSM-60S. In addition to ruggedized concept, which 60S created, the 70S has a series of new features, such as "Automated wind-protector and tube-heater" for quicker splicing cycle as well as fewer operation steps, "innovative carrying-case design" for
quicker preparation, "powerful Li-ion battey" for longer operation, high resolution bigger LCD monitor, and "built-in operation manuals" in various languages. Market is from backbone network installation to opto-electronics components production for quality splice.



Applicable fibres
SM (ITU-T G.652 & G.657), MM (ITU-T G.651),DS (ITU-T G.653),
NZDS (ITU-T G.655),Others
Fibre Count
Single
Cladding diameter
80 to 150μm
Coating diameter
100 to 1000μm
Fibre cleaved length
5 to 16mm using Sheath Clamp A, B or 5 to13mm using FH-60-250, FH-60-900
Actual average splice loss
0.02dB with SM, 0.01dB with MM, 0.04dB with DS, 0.04dB with NZDS.
Splice time
7sec:SM FAST mode, 12sec :SM AUTO mode, 15sec:AUTO mode
Return loss
60dB or greater
Splicing modes
100 splicer modes are available
Splice loss estimate
Several types of core deformations as well as core axis offset are taken into account for accurate loss estimate.
Attenuation splice function
Intentional high splice loss of 0.1dB to 15dB (0.01dB step) can be made for an
inline fixed attenuator
Storage of splice result
The last 2000 results to be stored in the internal memory.
Magnification
X / Y (300X magnification), or both X and Y simultaneously (160X magnification)
Viewing method
By two CMOS cameras for intersecting fiber viewing and 4.73 inches TFT colour LCD monitor
Tension test
1.96 to 2.25N
Operating condition
0-5000m above sea level, 0-95% RH and -10 to 50°C respectively.
Tube heater
Built-in auto-start tube heater with 10 heating modes and up to 20 for reference
Tube heat time
13-15sec. with FP-03 protection sleeve. Total memory of 30 heating modes are available
Applicable protection
sleeve length
60mm, 40mm and a series of micro sleeves.
No. of splice/heating
with battery
200 times of splicing and heat shrinking under with BTR-09
Power supply
Auto voltage selection from 100 to 240Va.c. or 10 to 15Vd.c. with ADC-18. 14.8Vd.c. with BTR-09
Terminals
USB2.0 ( Mini-B) for data and video signal transfer to PC.
Wind protection
Up to 15m/s wind velocity
Dimensions
146(W) x 159(D) x 150(H) mm
Including wind protector, monitor, and rubber protector
Excluding rubber foot
Weight
2.5 kg, with ADC-18 AC adaptor
2.7 kg, with BTR-09 battery
Electrode life
3000 arc-discharges

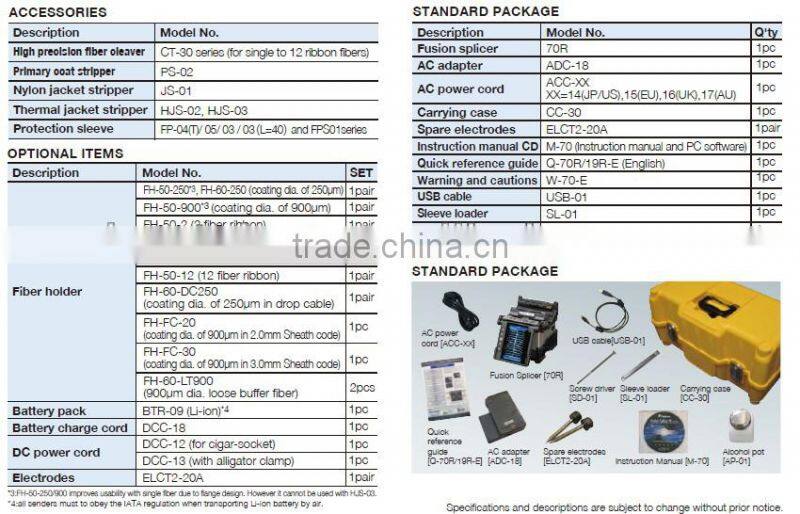

Standard Package
Item
Description
Model No.
Qty
1
Fusion Splicer
FSM-70S
with CLAMP-S70A
1 pc
2
AC adaptor/battery charger
ADC-18
1 pc
3
AC power cord
ACC-XX
1 pc
4
Spare Electrodes
ELCT2-20A
1 pair
5
Cleaver
CT-30A
1 pc
6
Battery Pack
BTR-09
1 pc
7
USB cable
USB-01
1 pc
8
Quick reference guide
M-80S/19S-E
1 pc
9
Warning and cautions
W-70-E
1 pc
10
Instruction Manual
M-70
1 pc
11
Alcohol Pot
AP-01
1 pc
12
Battery charge cord
DCC-18
1 pc
13
Carrying Case
CC-30
1 pc
14
Screw Driver
SD-01
1pc





  Fujikura 70R Ribbon Fusion splicer / splicing machine

Japan Fujikura 70s fusion splicer with CT-06 cleaver BTR-09 battery price



Fujikura 70R Fusion Splicer

The Fujikura 70R is equipped with a precision, ixed v-groove for splicing single ibers
or ribbon iber up to 12 ibers. Incorporating the proven ruggedized features pioneered
by Fujikura, the 70R has added automated and enhanced user control features to
increase splicing eficiency. A user programmable, automated wind protector expedites
the splicing process by automatically closing to initiate the splice process, and opening
upon splice completion. A new auto-start “clamshell design” tube heater applies heat
to both sides of the splice protection sleeve resulting in a 40-second shrink time for
12-iber ribbon. The result is a total splice process time of approximately 55 seconds!
Ruggedness and durability are greatly enhanced by a mirror-less optical system and
"severe-impact resistant" monitor. Battery capacity is now 110 splices/shrinks.
An innovative transit case doubles as a built-in or mobile workstation and makes
splicing easier than ever before.





Features


*  Automated and programmable wind protector
*  40-second automated tube heater
*  Fully ruggedized for shock, dust and moisture
*  Li-ion battery with 110 splices/shrinks per charge
*  On-board training and support videos
*  Internet software upgrades
*  Multi-function transit case with integrated workstation

Japan Fujikura 70s fusion splicer with CT-06 cleaver BTR-09 battery price













JAPAN Fujikura  FSM-80S Fusion Splicer  price

Japan Fujikura 70s fusion splicer with CT-06 cleaver BTR-09 battery price

The FSM-80S is core-to-core alignment single fiber splicer succeeding to FSM-60S. In addition to ruggedized concept, which 60S created, the 80S has a series of new features, such as "Automated wind-protector and tube-heater" for quicker splicing cycle as well as fewer operation steps, "innovative carrying-case design" for
quicker preparation, "powerful Li-ion battey" for longer operation, high resolution bigger LCD monitor, and "built-in operation manuals" in various languages. Market is from backbone network installation to opto-electronics components production for quality splice.



Applicable fibres
SM (ITU-T G.652 & G.657), MM (ITU-T G.651),DS (ITU-T G.653),
NZDS (ITU-T G.655),Others
Fibre Count
Single
Cladding diameter
80 to 150μm
Coating diameter
100 to 1000μm
Fibre cleaved length
5 to 16mm using Sheath Clamp A, B or 5 to13mm using FH-60-250, FH-60-900
Actual average splice loss
0.02dB with SM, 0.01dB with MM, 0.04dB with DS, 0.04dB with NZDS.
Splice time
7sec:SM FAST mode, 12sec :SM AUTO mode, 15sec:AUTO mode
Return loss
60dB or greater
Splicing modes
100 splicer modes are available
Splice loss estimate
Several types of core deformations as well as core axis offset are taken into account for accurate loss estimate.
Attenuation splice function
Intentional high splice loss of 0.1dB to 15dB (0.01dB step) can be made for an
inline fixed attenuator
Storage of splice result
The last 2000 results to be stored in the internal memory.
Magnification
X / Y (300X magnification), or both X and Y simultaneously (160X magnification)
Viewing method
By two CMOS cameras for intersecting fiber viewing and 4.73 inches TFT colour LCD monitor
Tension test
1.96 to 2.25N
Operating condition
0-5000m above sea level, 0-95% RH and -10 to 50°C respectively.
Tube heater
Built-in auto-start tube heater with 10 heating modes and up to 20 for reference
Tube heat time
13-15sec. with FP-03 protection sleeve. Total memory of 30 heating modes are available
Applicable protection
sleeve length
60mm, 40mm and a series of micro sleeves.
No. of splice/heating
with battery
200 times of splicing and heat shrinking under with BTR-09
Power supply
Auto voltage selection from 100 to 240Va.c. or 10 to 15Vd.c. with ADC-18. 14.8Vd.c. with BTR-09
Terminals
USB2.0 ( Mini-B) for data and video signal transfer to PC.
Wind protection
Up to 15m/s wind velocity
Dimensions
146(W) x 159(D) x 150(H) mm
Including wind protector, monitor, and rubber protector
Excluding rubber foot
Weight
2.5 kg, with ADC-18 AC adaptor
2.7 kg, with BTR-09 battery
Electrode life
3000 arc-discharges
